Trailer Lighting Relay

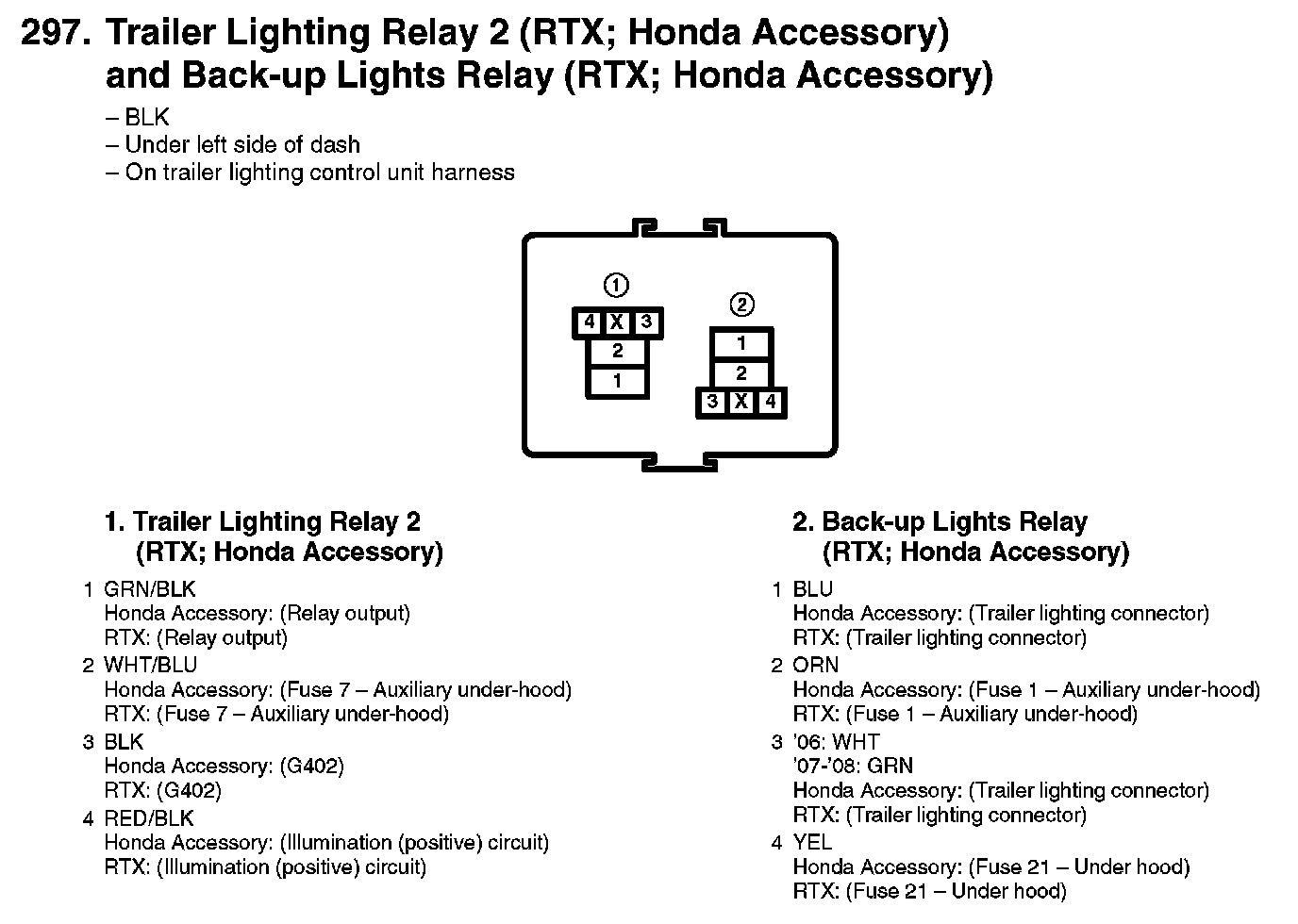

297. Trailer Lighting Relay 2 (RTX; Honda Accessory) And Back-up Lights Relay (RTX; Honda Accessory):



262. Trailer Lighting Relay 1 (RTX; Honda Accessory) And VTM-4 Relay:
