Condenser Fan: Service and Repair
Radiator and Fan Replacement1. Drain the engine coolant.
2. Remove the front air intake duct.
3. Remove the bulkhead cover.
4. Disconnect the fan motor connectors (A), then remove the harness clamps (B) and reservoir tank hose (C).
5. Remove the upper radiator hose (A) and lower radiator hose (B).
6. Remove the splash shield.
7. Remove the automatic transmission fluid (ATF) cooler hoses (A) from the radiator, then plug the line and hose.
8. Unclamp the ATF cooler hoses clamp (B) on the ATF cooler line.
9. Remove the harness clamps (A) and A/C compressor clutch connector (B) from the A/C condenser fan shroud.

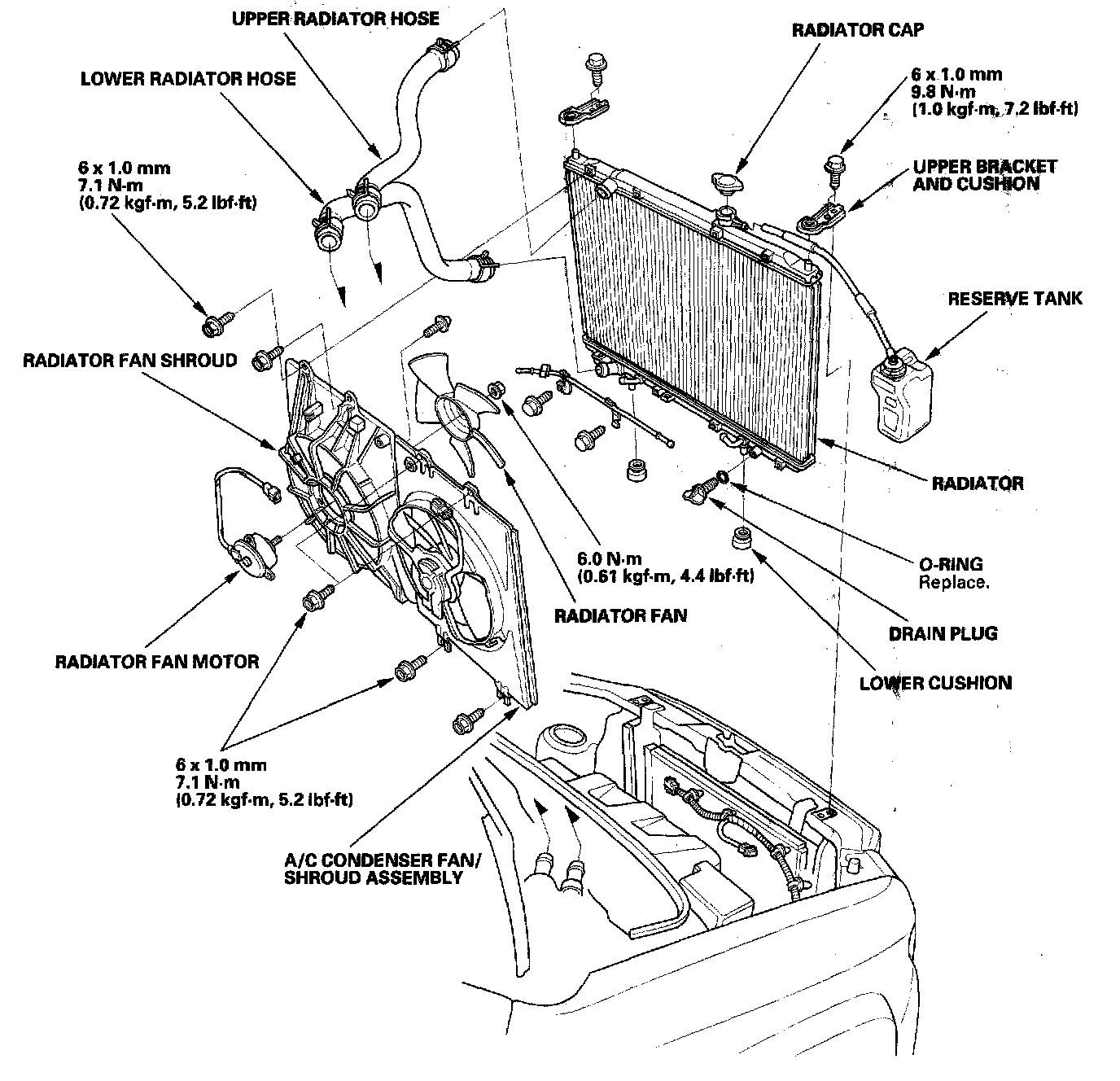

10. Remove the upper bracket cushions, then pull up the radiator.
11. Remove the fan shroud assemblies and other parts from the radiator.
12. Install the radiator in the reverse order of removal. Make sure the upper and lower cushions are set securely.
13. Fill the radiator with engine coolant, then bleed air from the cooling system.
