Fuel Tank Pressure Sensor: Service and Repair

FTP Sensor Replacement

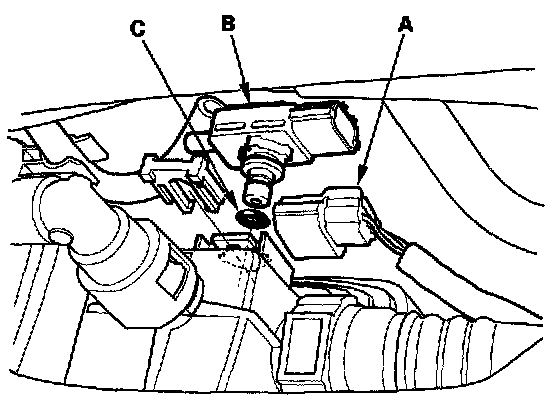

1. Disconnect the FTP sensor connector (A).
2. Remove the FTP sensor (B).
3. Install the sensor in the reverse order of removal with a new O-ring (C).
