OPDS/ODS Unit Initialization
OPDS/ODS Unit InitializationWhen a seat-back cover, seat-back cushion, and/or the OPDS/ODS unit is replaced, initialize the OPDS/ODS unit by following the procedure.
NOTE: A new (uninitialized) OPDS/ODS unit installed with a faulty OPDS sensor can cause DTC 85-71.
1. Erase the DTC memory (see "Erasing the DTC Memory").
2. Make sure the front passenger's seat is dry. Set the seat-back in a normal position, and make sure there is nothing on the seat.
3. Make sure the ignition switch is OFF and the MES connector is not shorted.

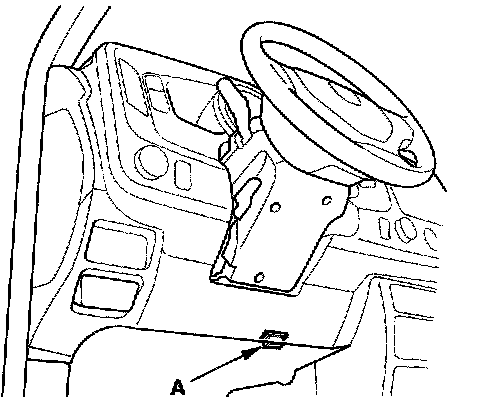

4. Connect the HDS to the DLC (A).
5. Turn the ignition switch ON (II).
6. From the HDS Main Menu, select SRS, then SRS, then Adjustments. In the Adjustment Menu, select OPDS/ODS INIT. Follow the screen prompts to initialize the OPDS/ODS.
7. Turn the ignition switch OFF.
8. Disconnect the HDS from the DLC.
NOTE: If the OPDS/ODS system fails to initialize after several attempts, replace the OPDS sensor/ seat-back and retry. If the OPDS/ODS system continues to fail to initialize, replace the OPDS/ODS unit.
