Traction Control Switch: Service and Repair
VSA Off Switch Test1. Remove the instrument panel.

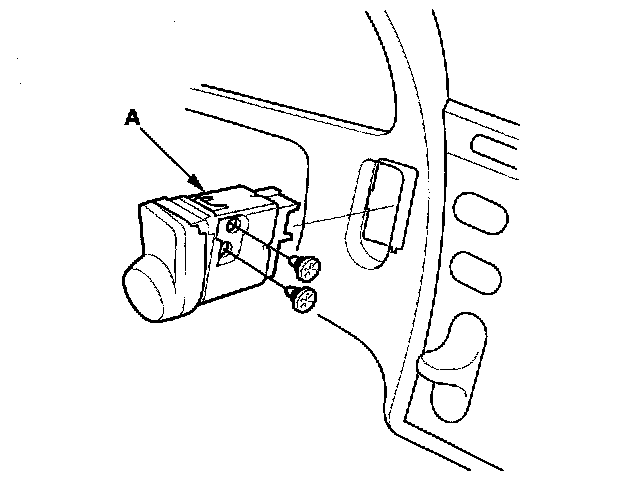

2. Remove the VSA OFF switch (A) by pushing from the back side of the instrument panel.
3. Check for continuity between the VSA OFF switch 6P connector terminal No. 1 and No. 6. There should be continuity when the switch is pressed, and no continuity when the switch is released.
4. Check for continuity between the VSA OFF switch 6P connector terminal No. 2 and No. 3. There should be continuity at all times.
