View 51-75: 54

54. Speaker, Driver's Door Or Passenger's Door:



55. Speaker, Driver's Right Rear:

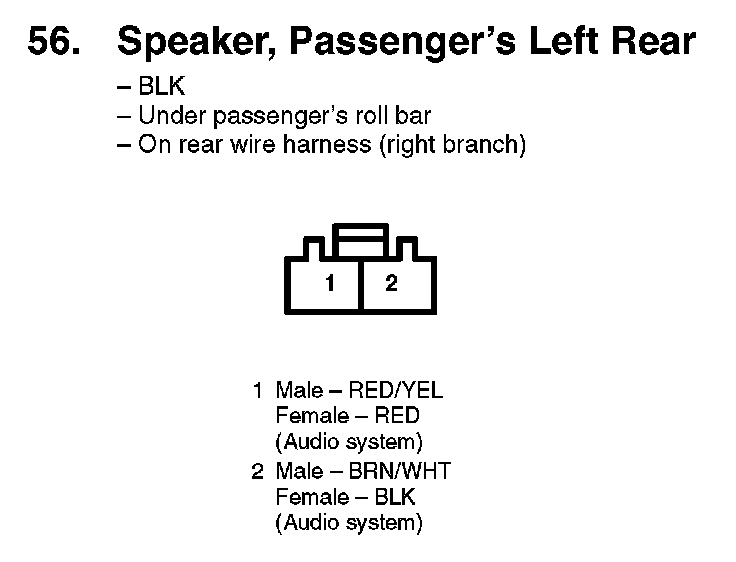

56. Speaker, Passenger's Left Rear:

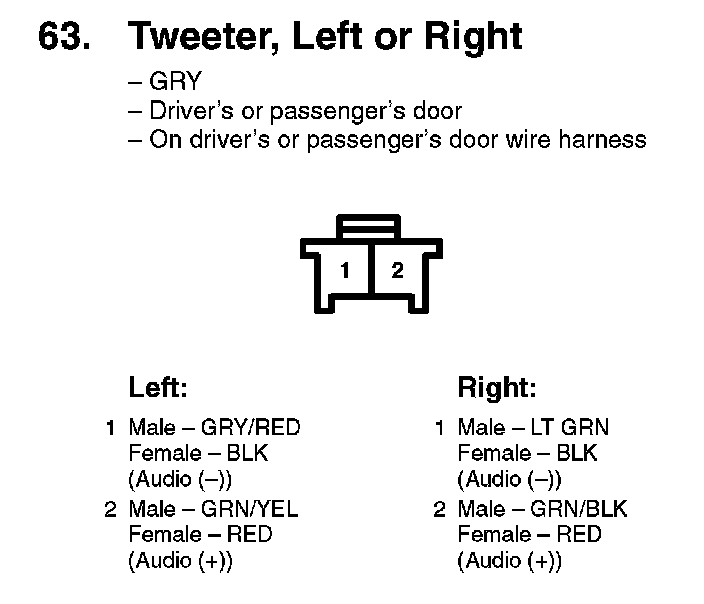

63. Tweeter, Left Or Right:



89. Speaker, Driver's Left Rear:



90. Speaker, Passenger's Right Rear:
