Turn Signal Lamp

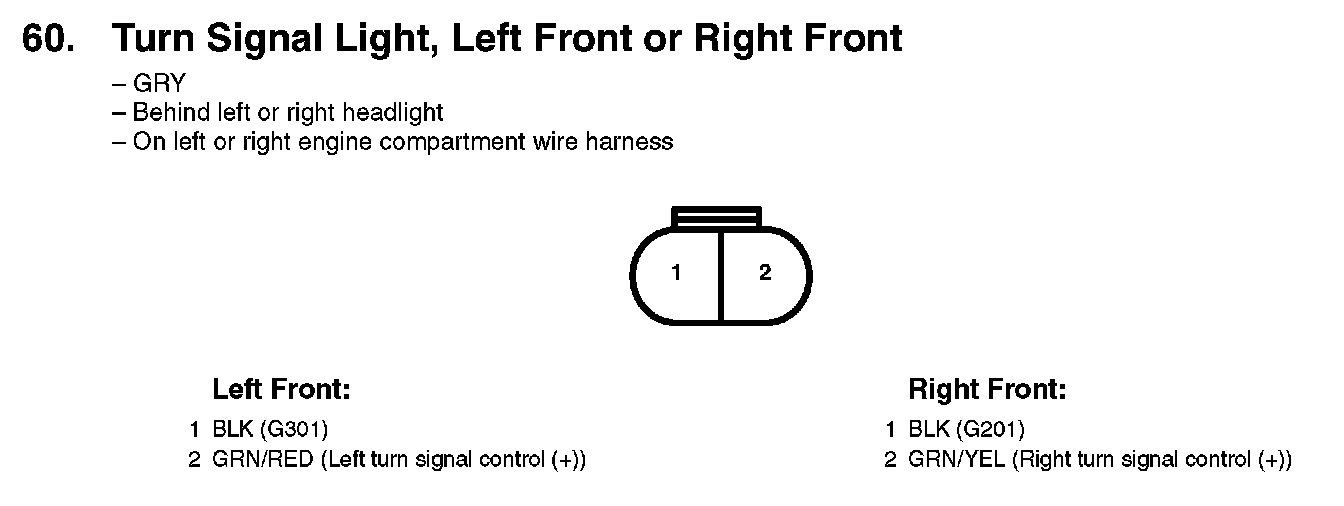

60. Turn Signal Light, Left Front Or Right Front:

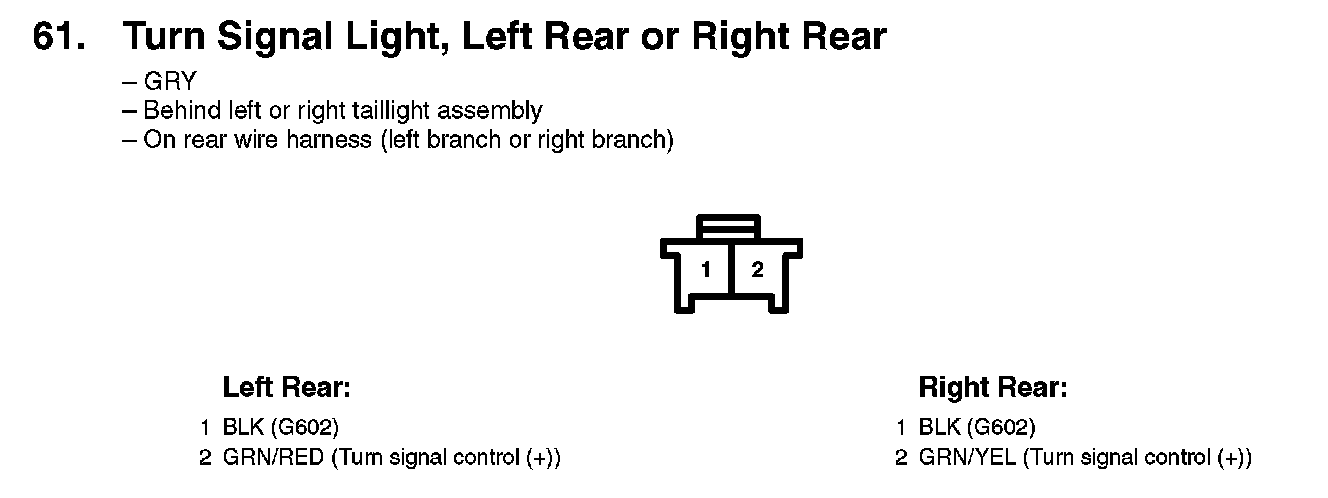

61. Turn Signal Light, Left Rear Or Right Rear:

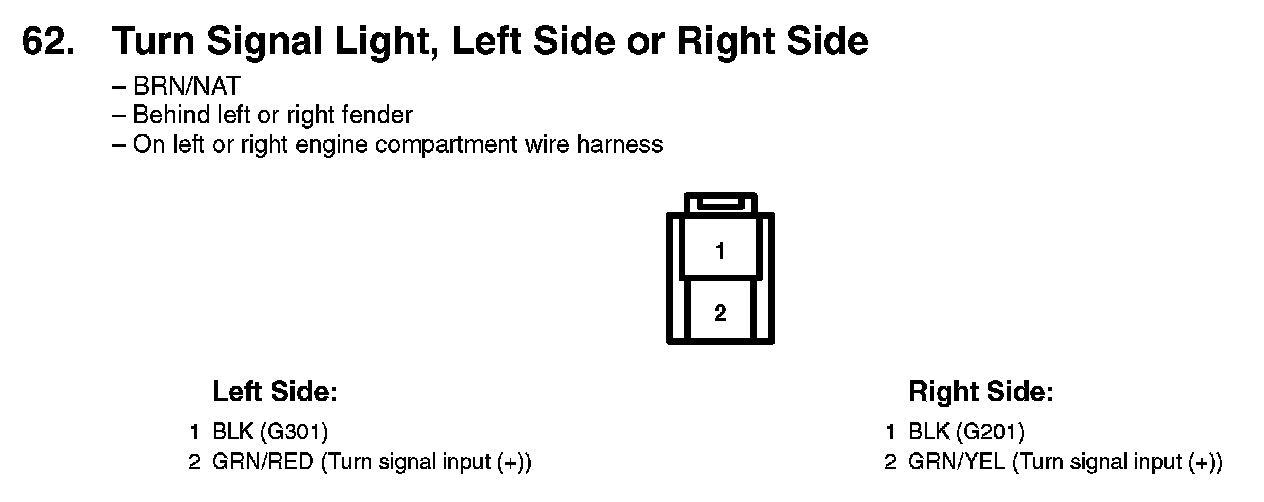

62. Turn Signal Light, Left Side Or Right Side:
