Accessory Control Display
October 30: LEMON manuals on a temporary server, it is slow and having issues, download the manuals you need! Later in November we will switch back to the fast server.
Accessory Control Display

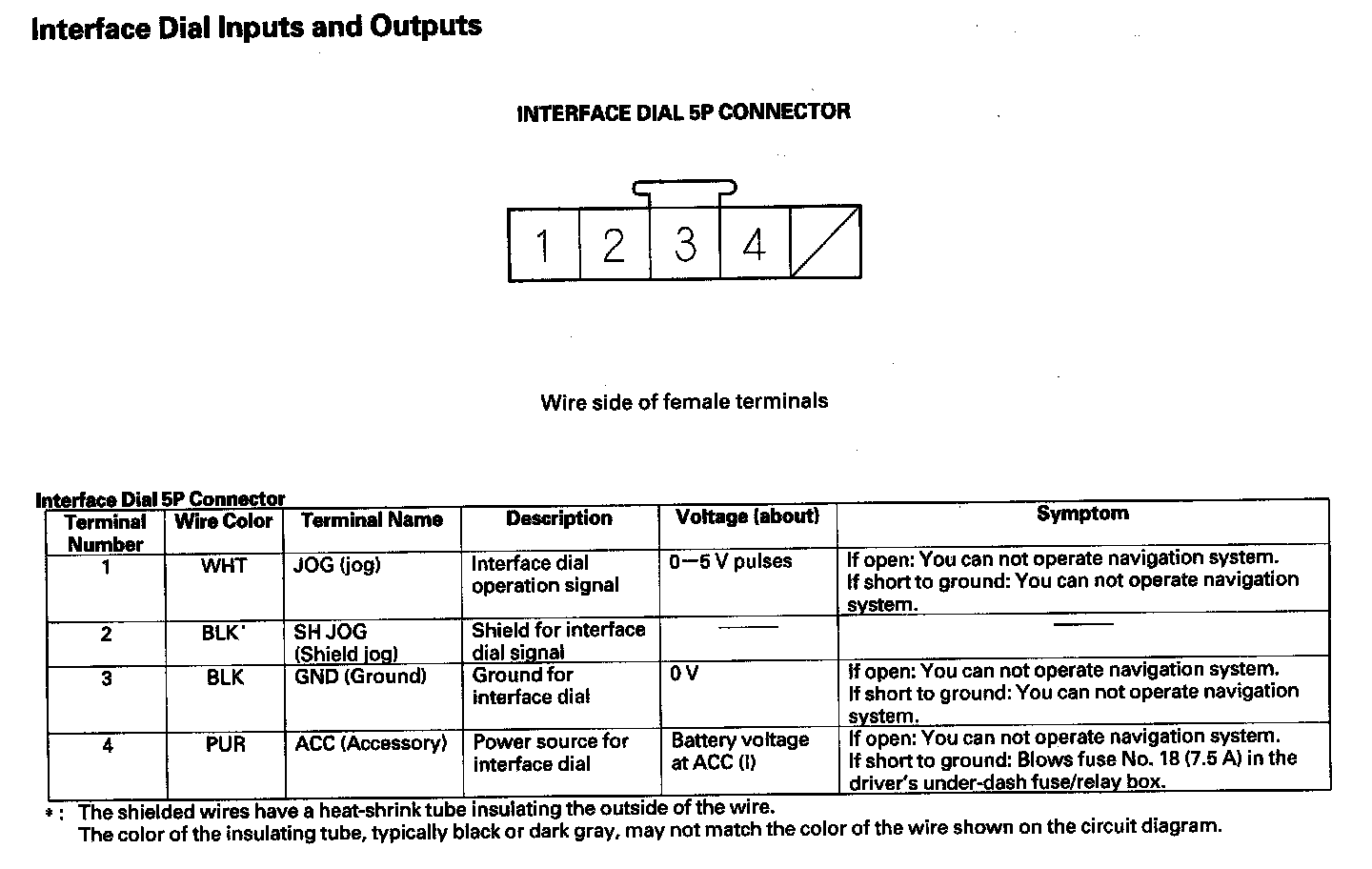

Interface Dial Inputs And Outputs:
