Audio-HVAC Subdisplay Unit Removal/Installation

Audio-HVAC Subdisplay Unit Removal/Installation

With Navigation System

NOTE:
- Put on gloves to protect your hands.
- Take care not to scratch the dashboard.

1. Remove the dashboard center vent.

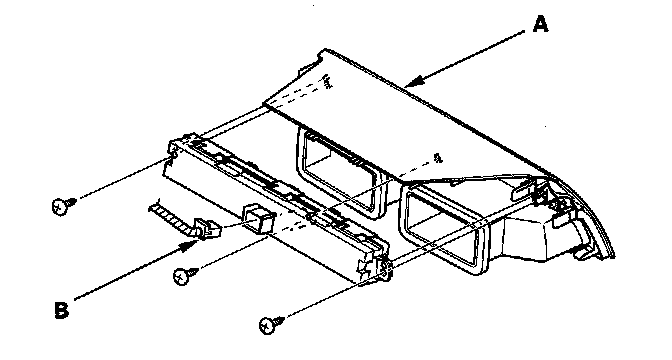

2. Remove the screws, then pull out the audio-HVAC subdisplay unit (A).






3. Disconnect the connector (B), and remove the audio-HVAC subdisplay unit.
4. Install the audio-HVAC subdisplay unit in the reverse order of removal.
