Design Specifications

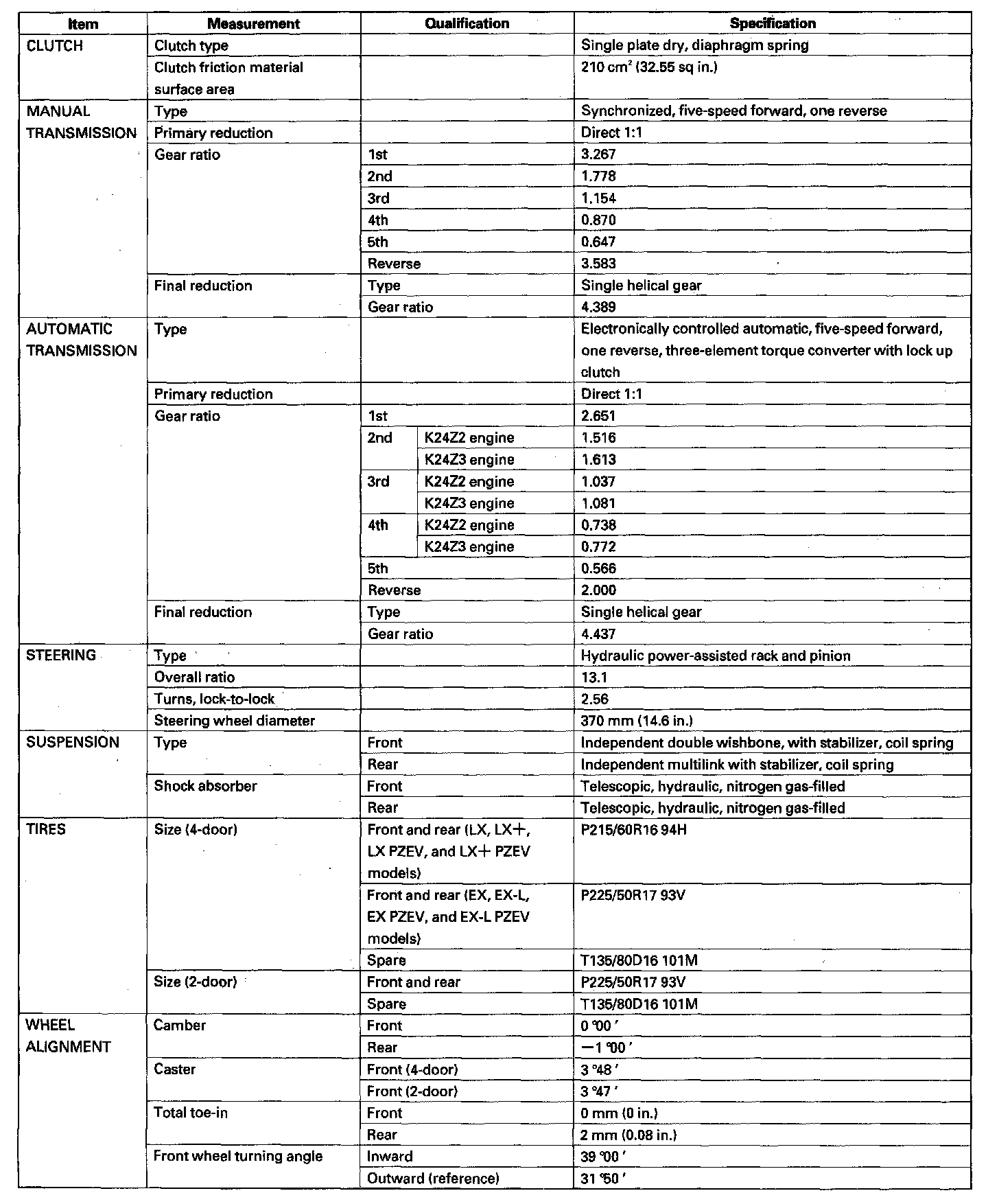

Design Specifications L4-2.4L (Part 1):

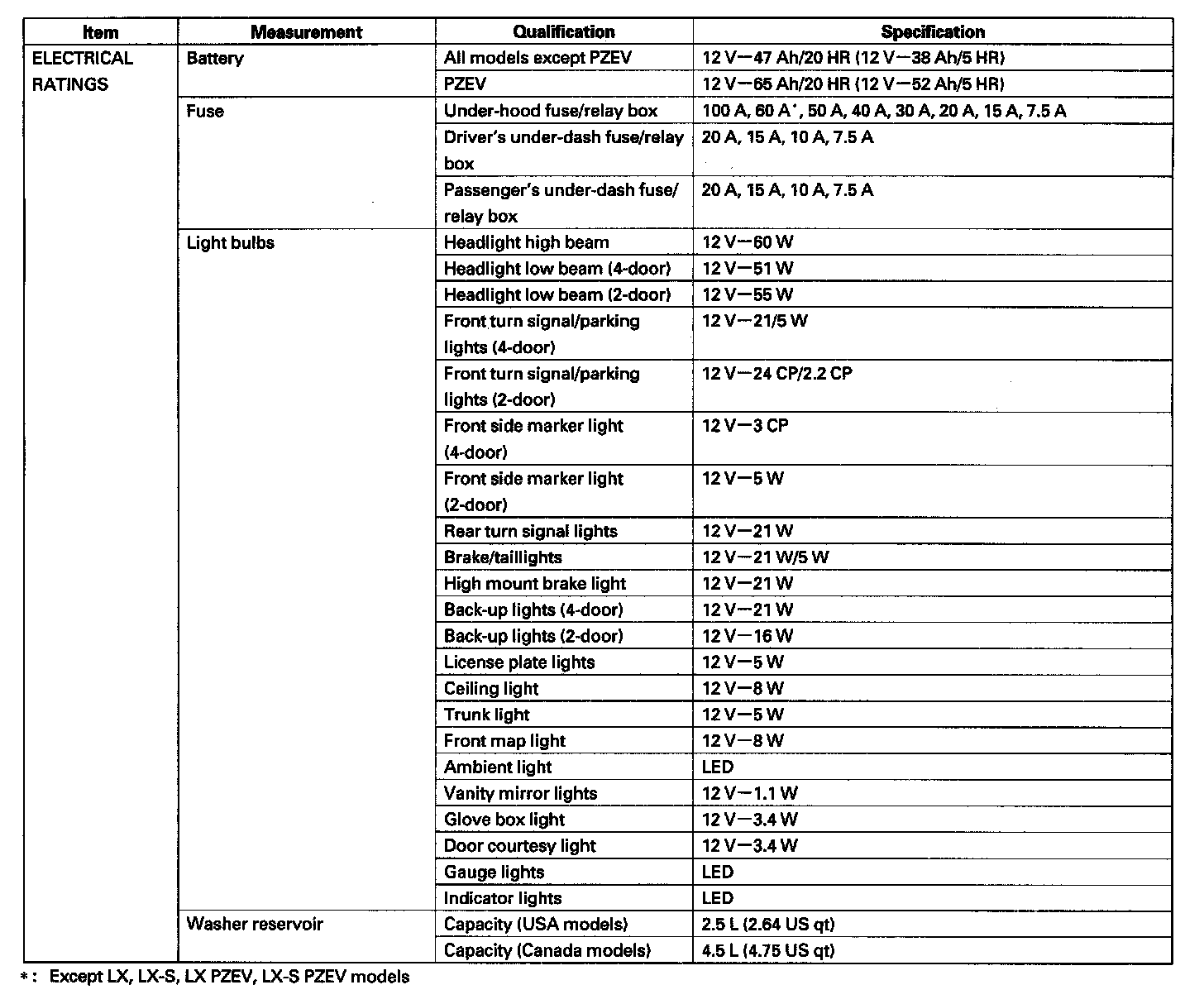

Design Specifications L4-2.4L (Part 2):

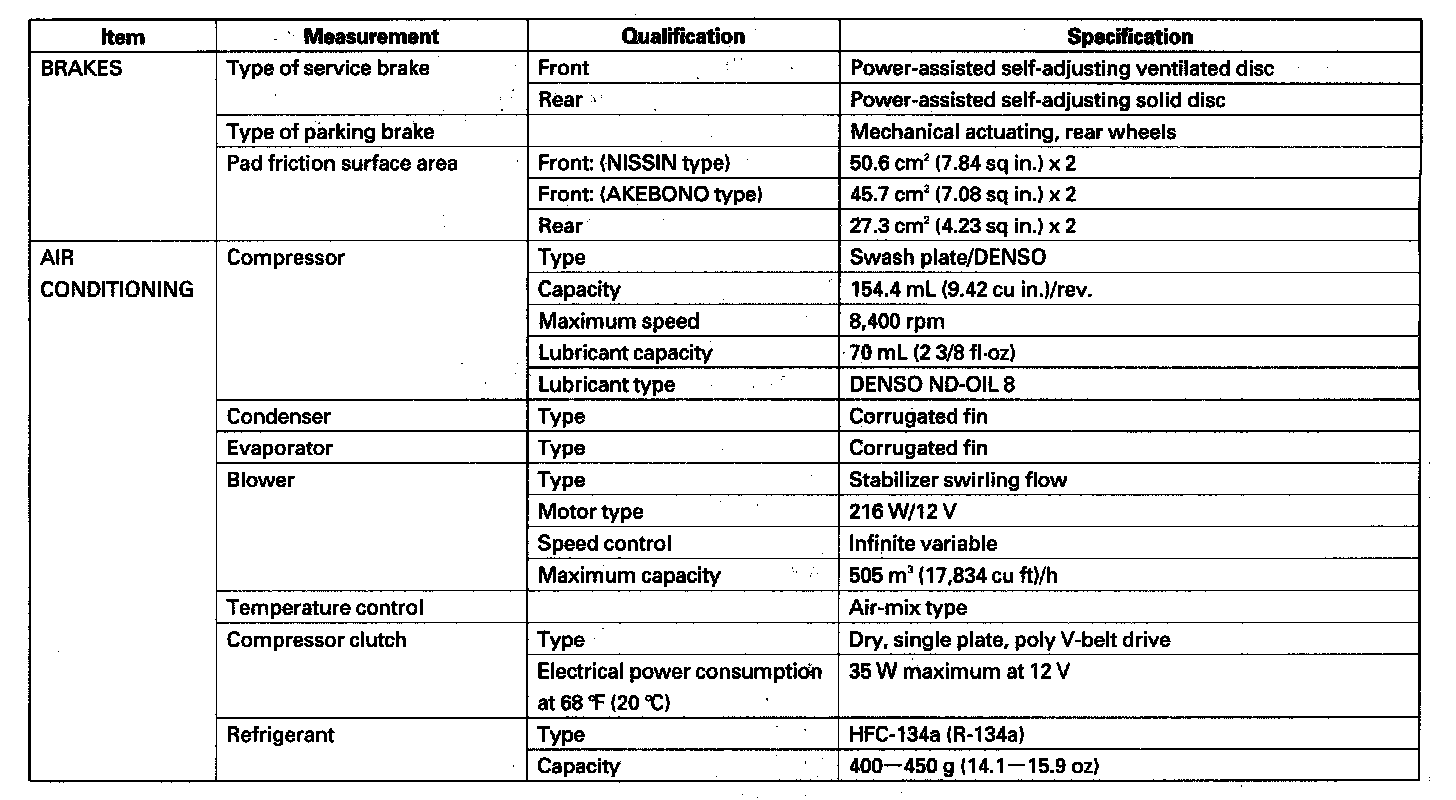

Design Specifications L4-2.4L (Part 3):

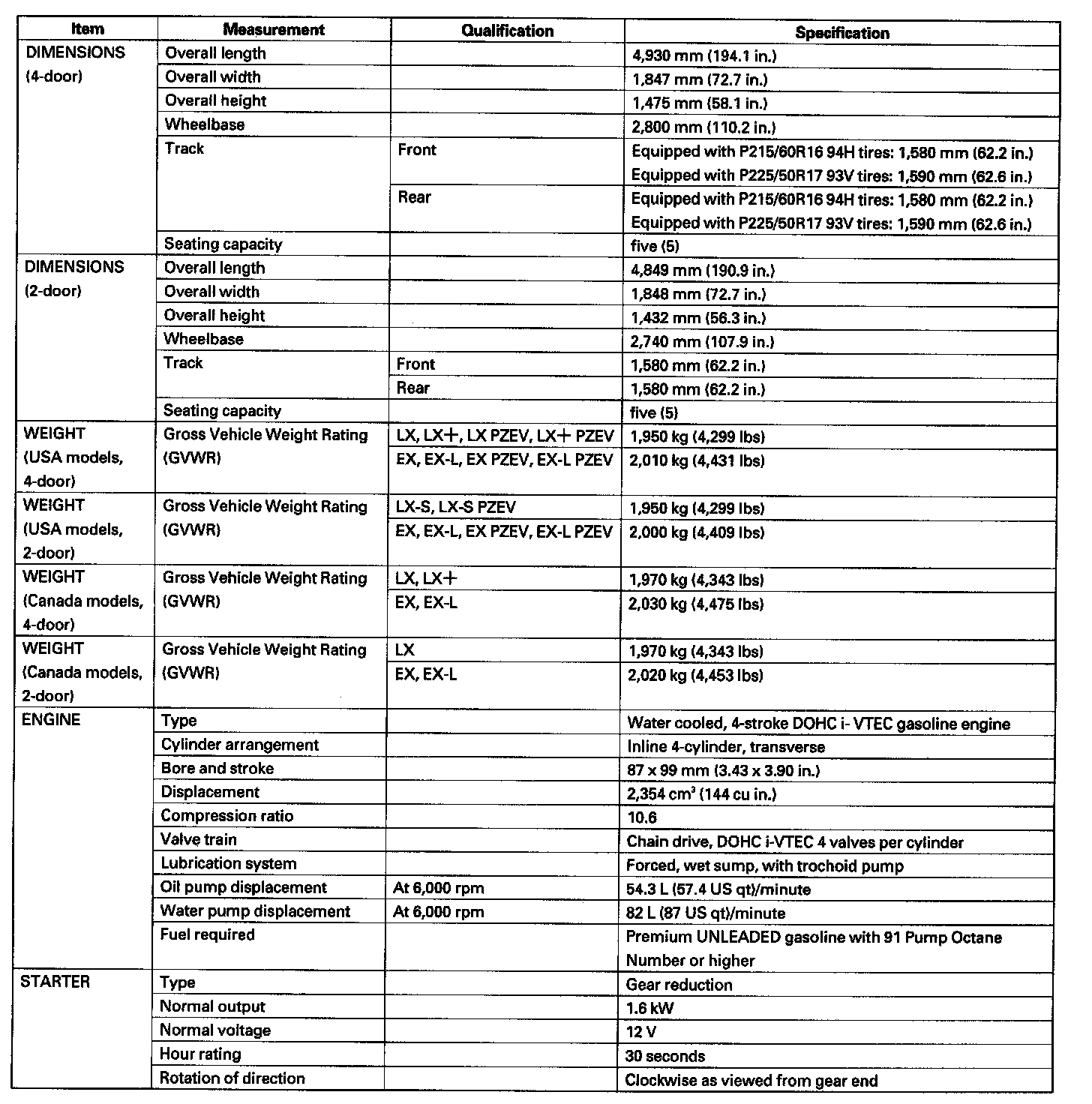

Design Specifications L4-2.4L (Part 4):
