Axle Shaft Assembly

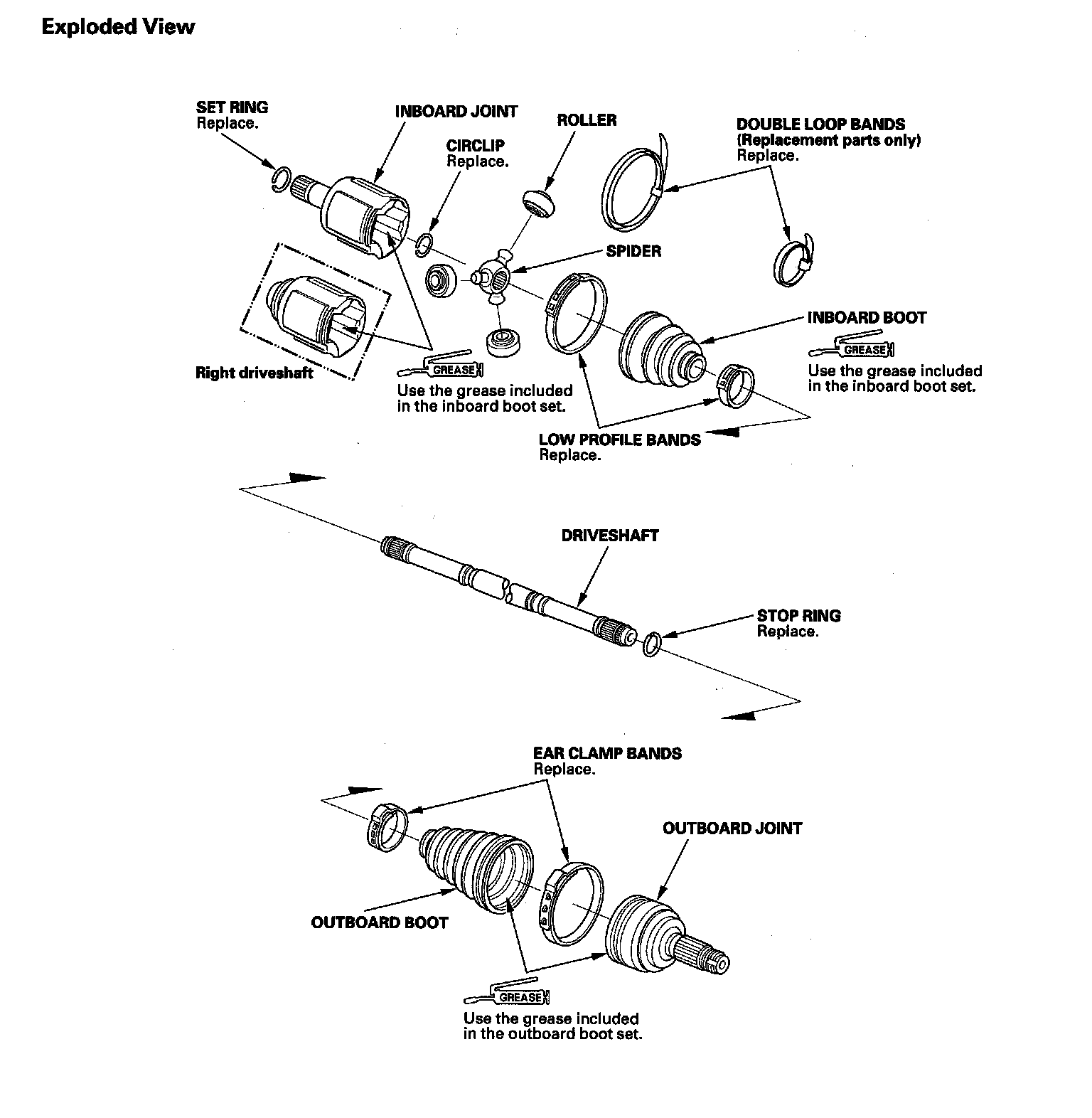

Drive Shaft V6-3.5L:

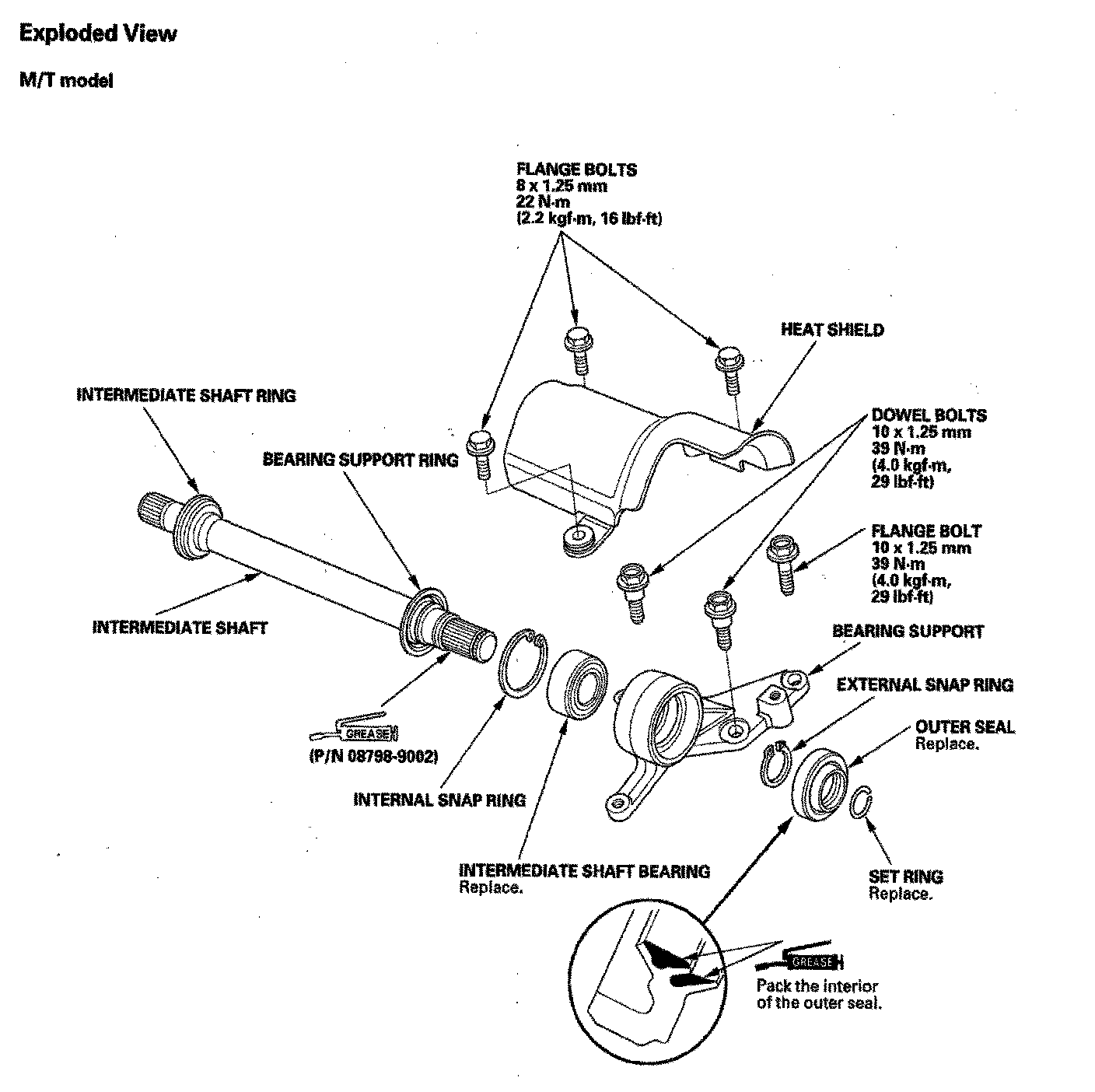

Intermediate Shaft M/T Model V6-3.5L:

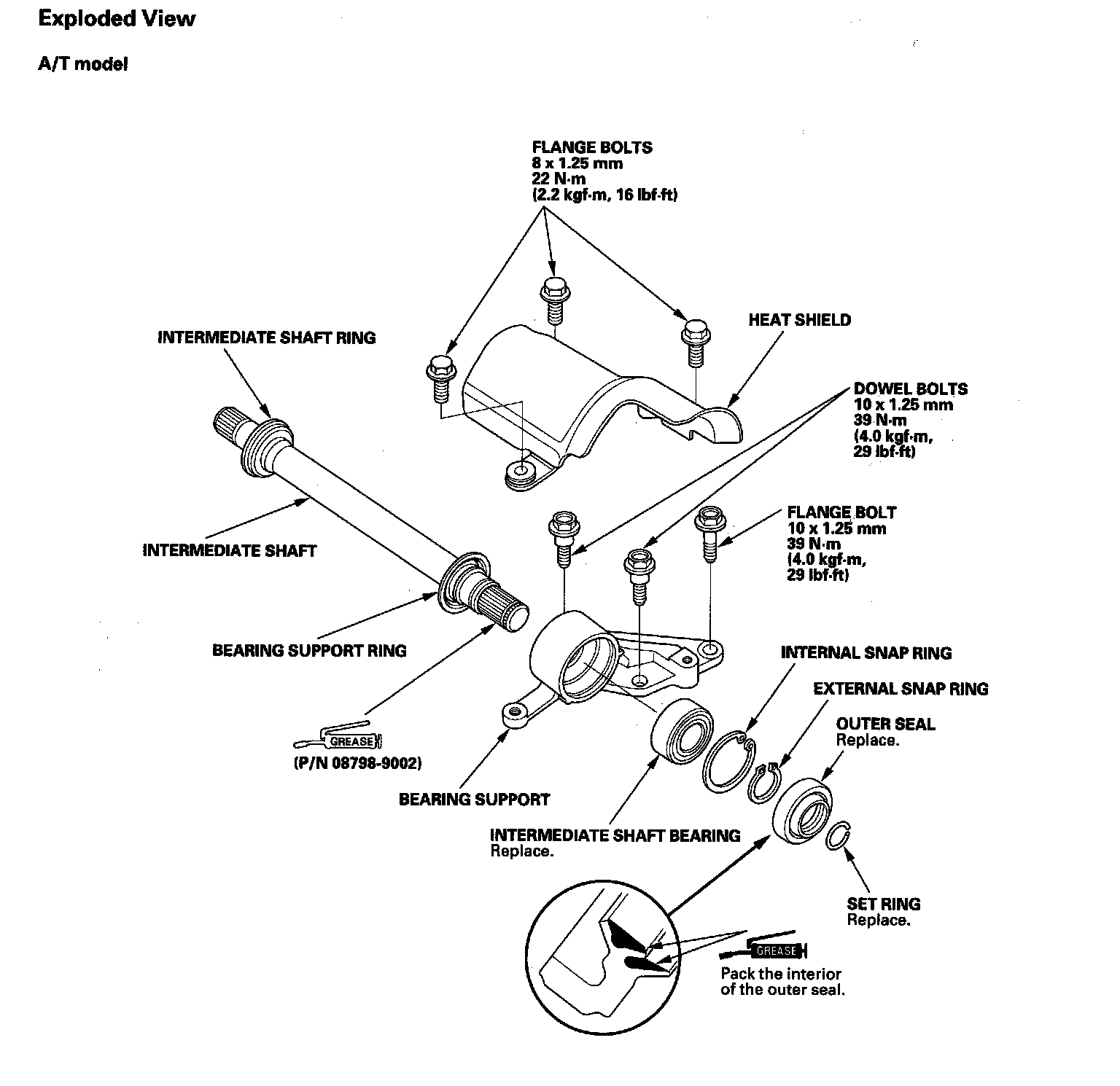

Intermediate Shaft A/T Model V6-3.5L:
