Oil Pressure Sensor: Service and Repair

Rocker Arm Oil Pressure Sensor Replacement

J35Z2 engine

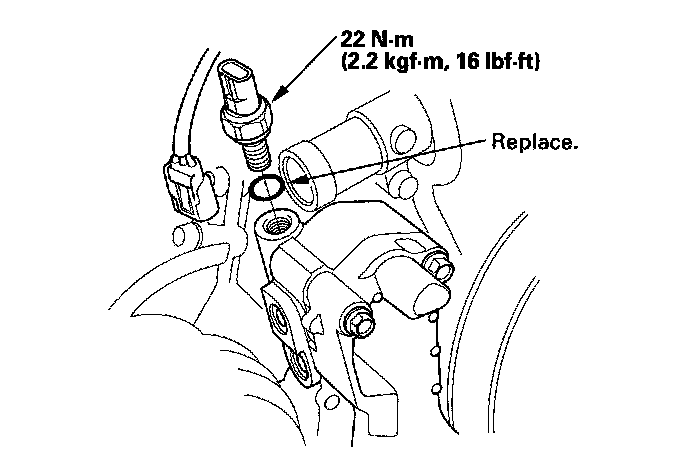

1. Disconnect the rocker arm oil pressure sensor connector, then remove the rocker arm oil pressure sensor.





2. Install the rocker arm oil pressure sensor with a new O-ring.
3. Connect the rocker arm oil pressure sensor connector.
