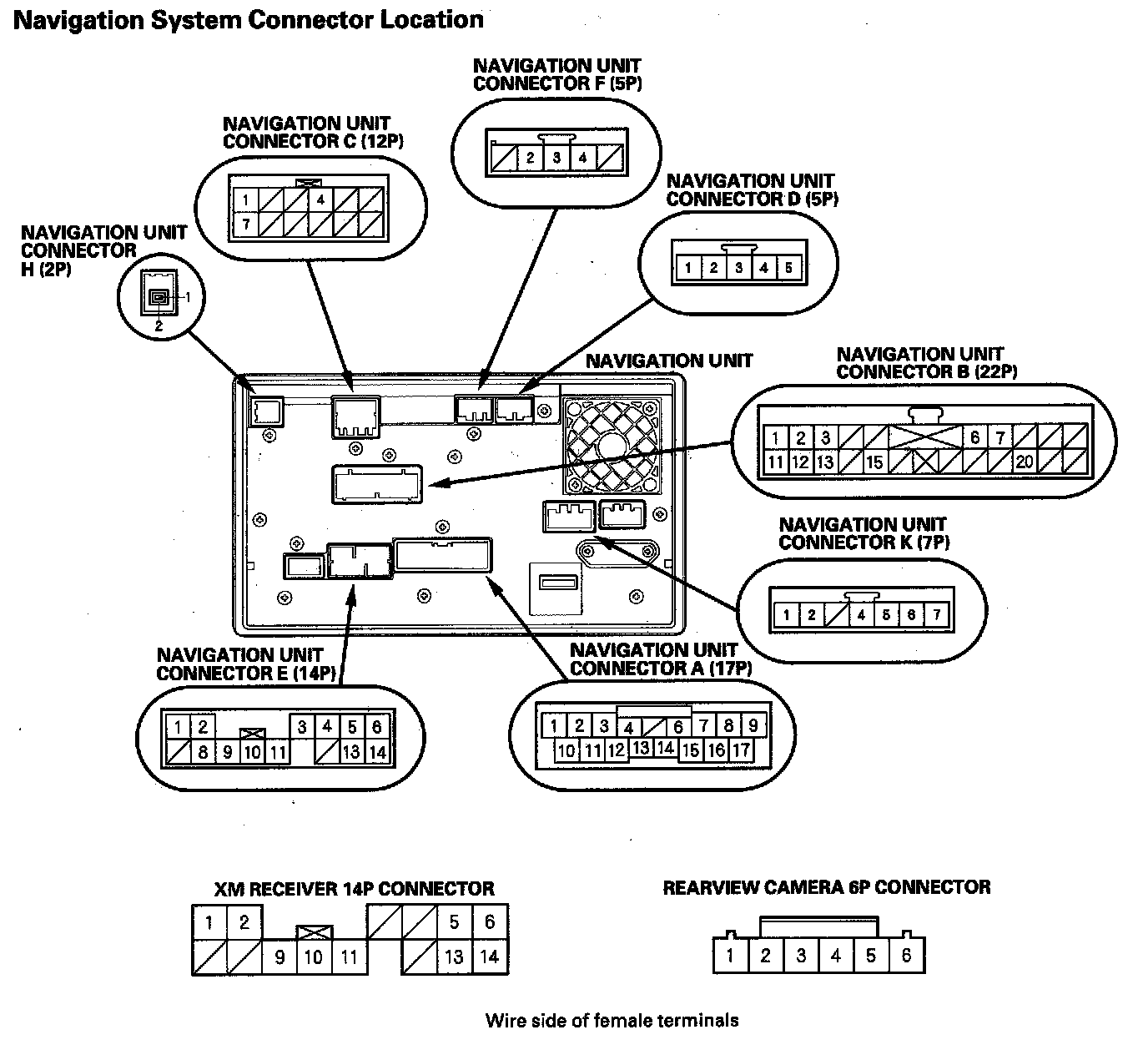

System Diagram

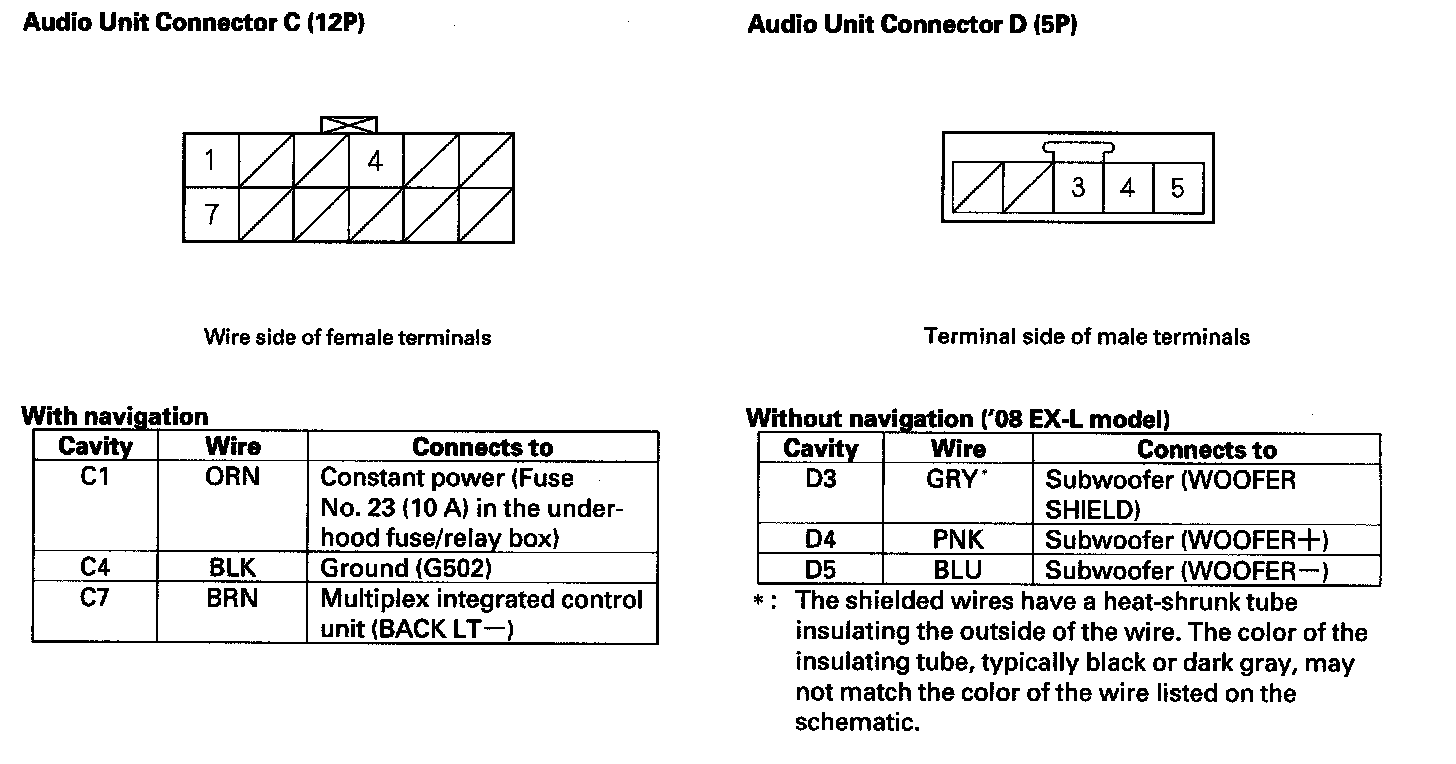

Navigation Unit Connector For Inputs And Outputs Part 1:

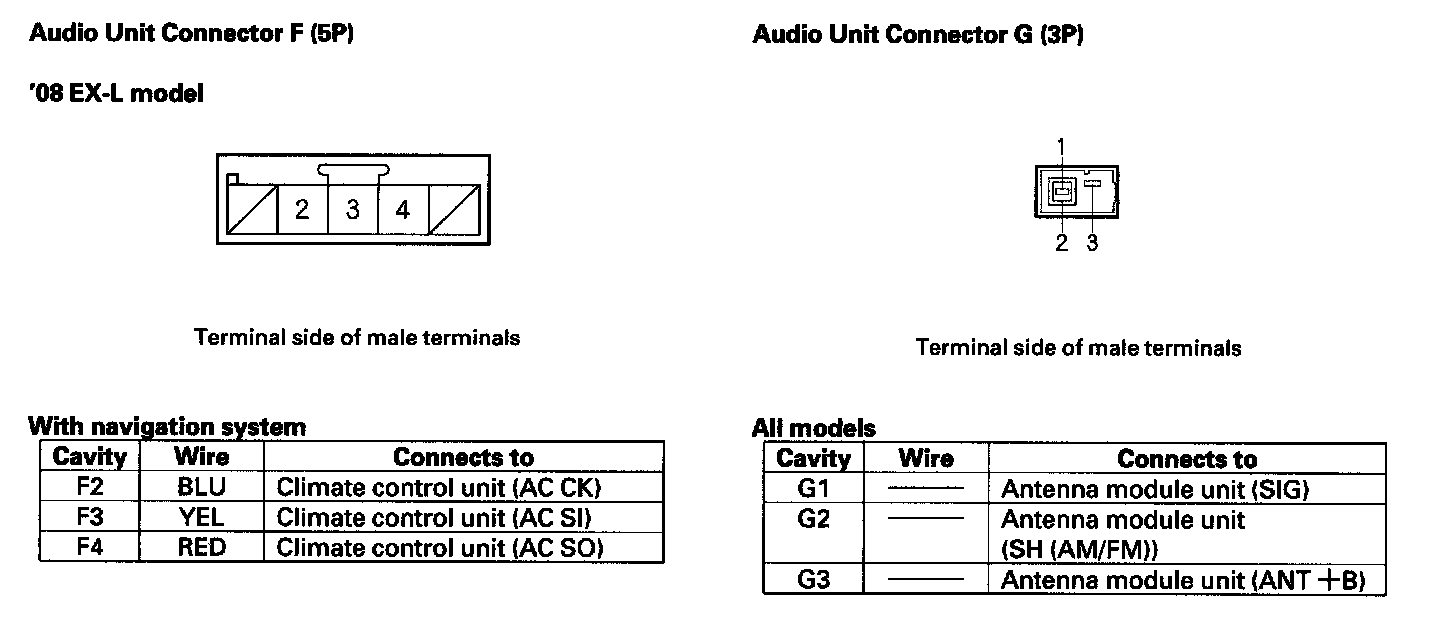

Navigation Unit Connector For Inputs And Outputs Part 2:

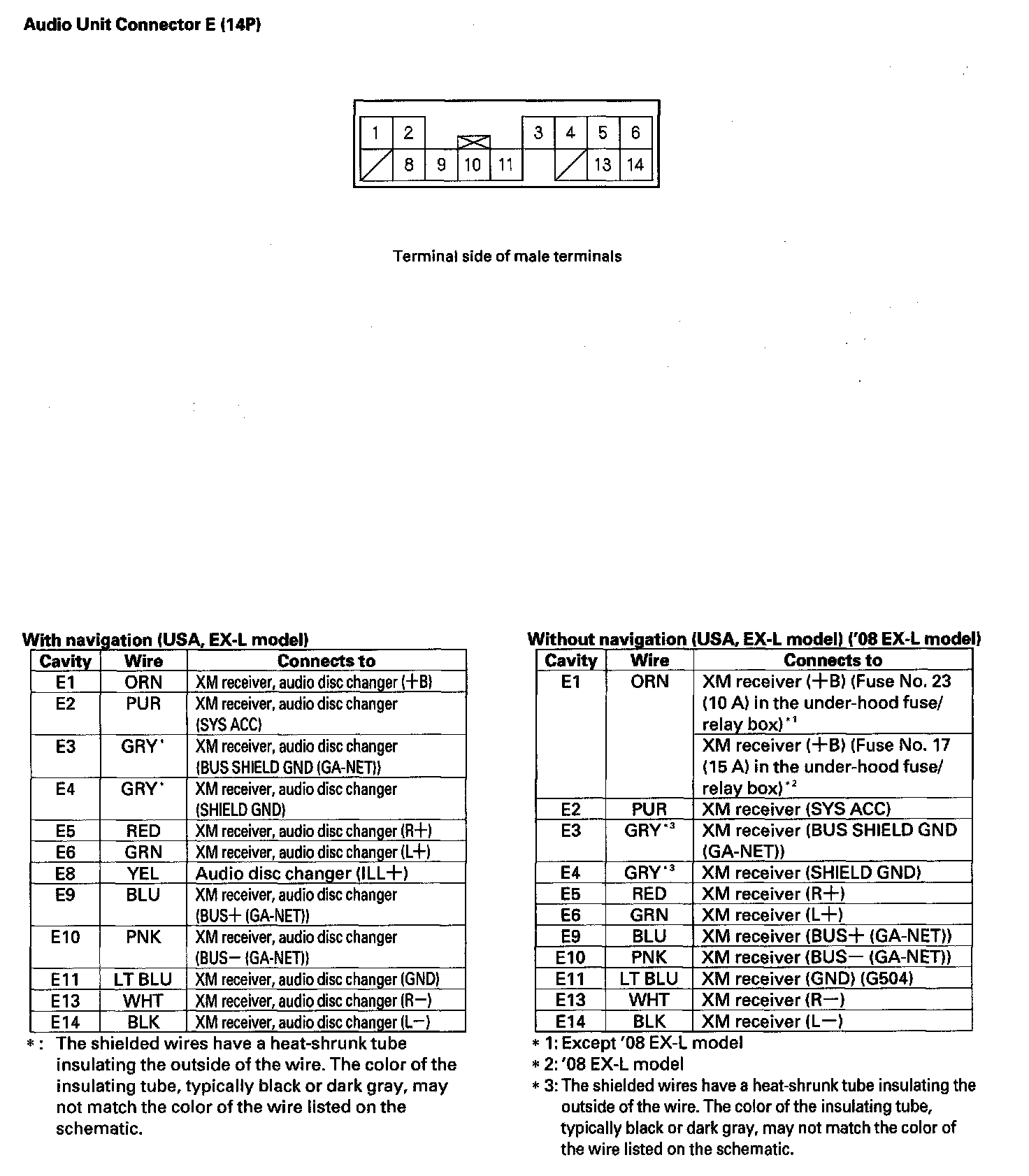

Navigation Unit Connector For Inputs And Outputs Part 3:

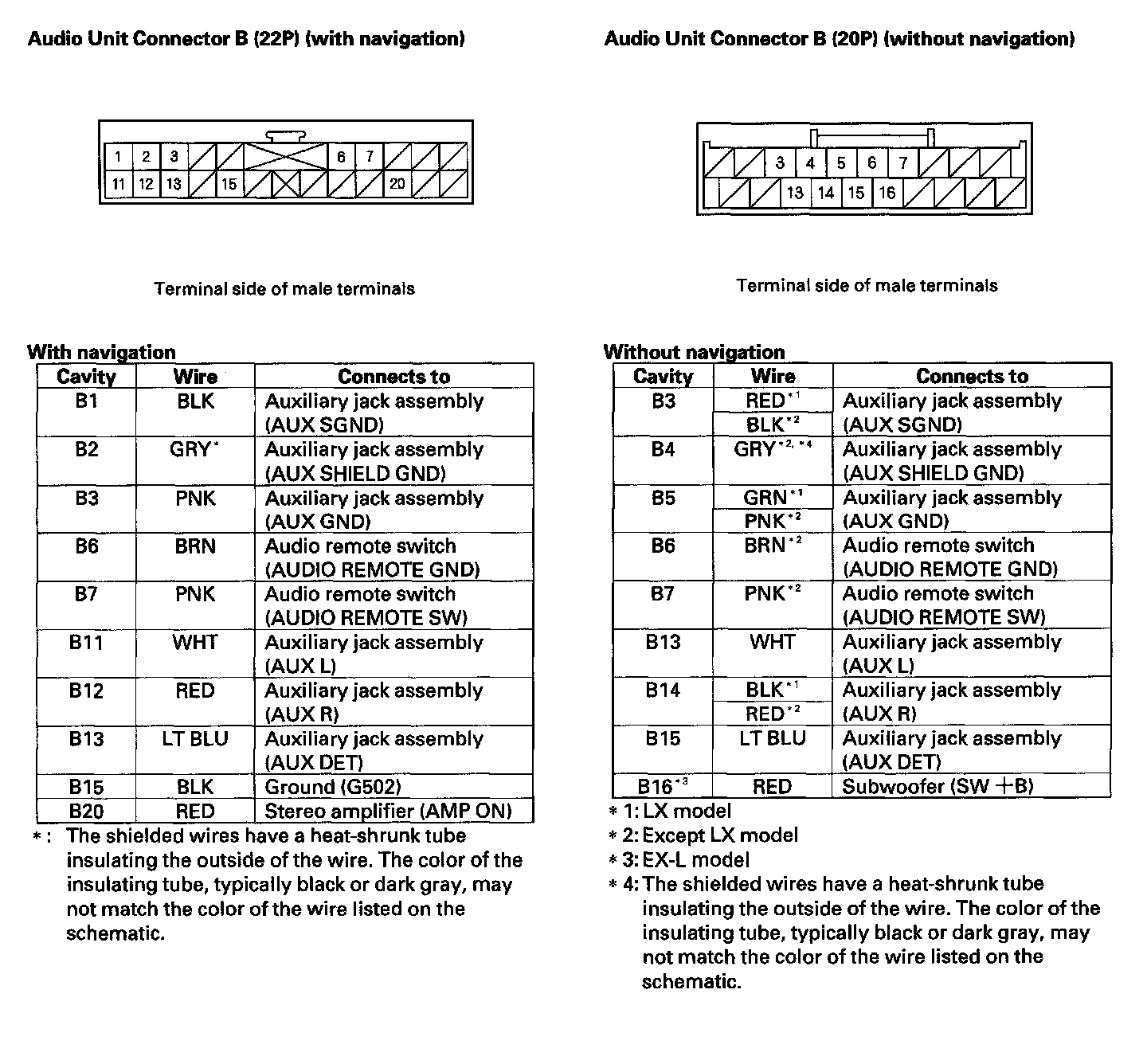

Navigation Unit Connector For Inputs And Outputs Part 4:

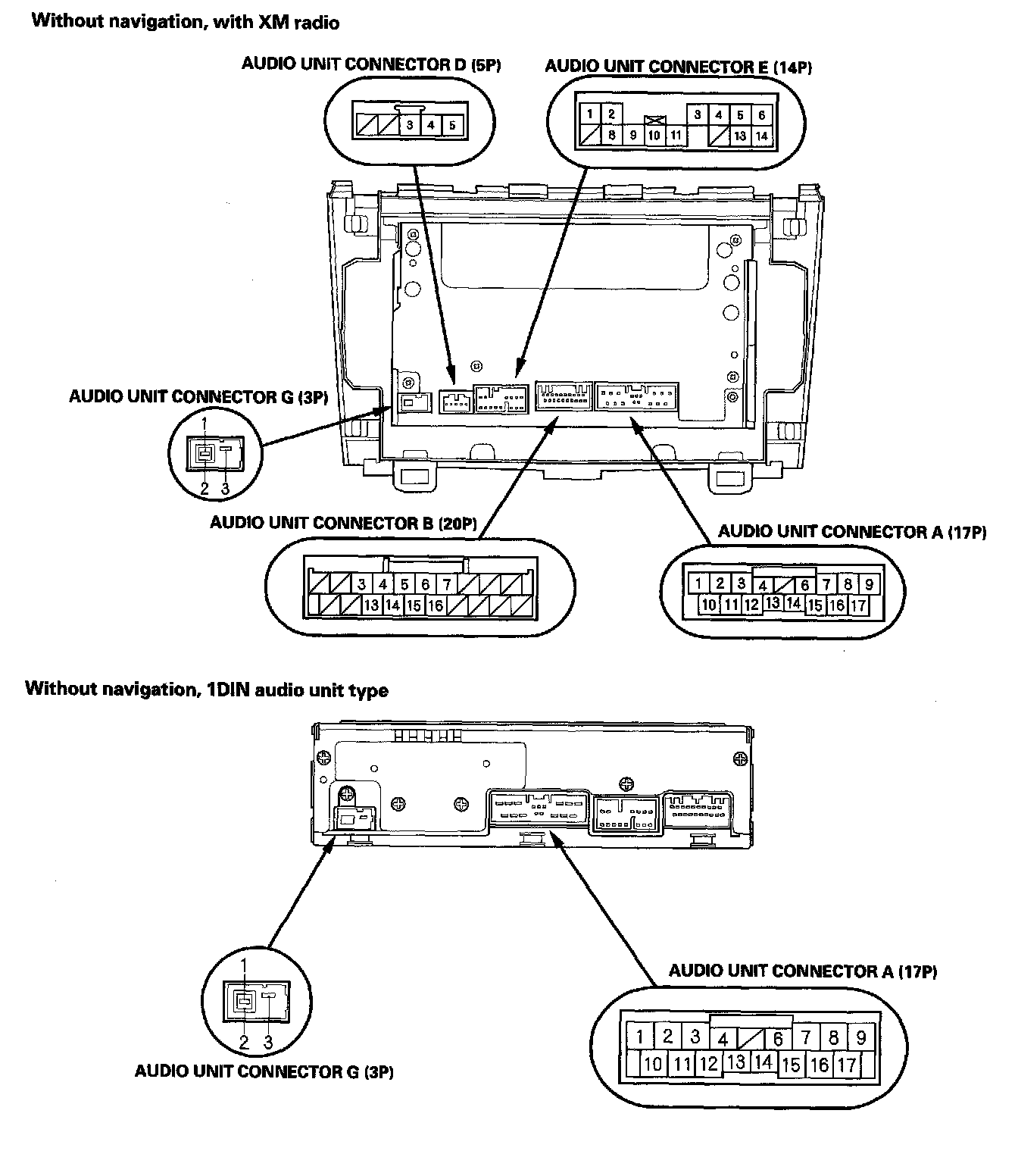

Navigation Unit Connector For Inputs And Outputs Part 5:

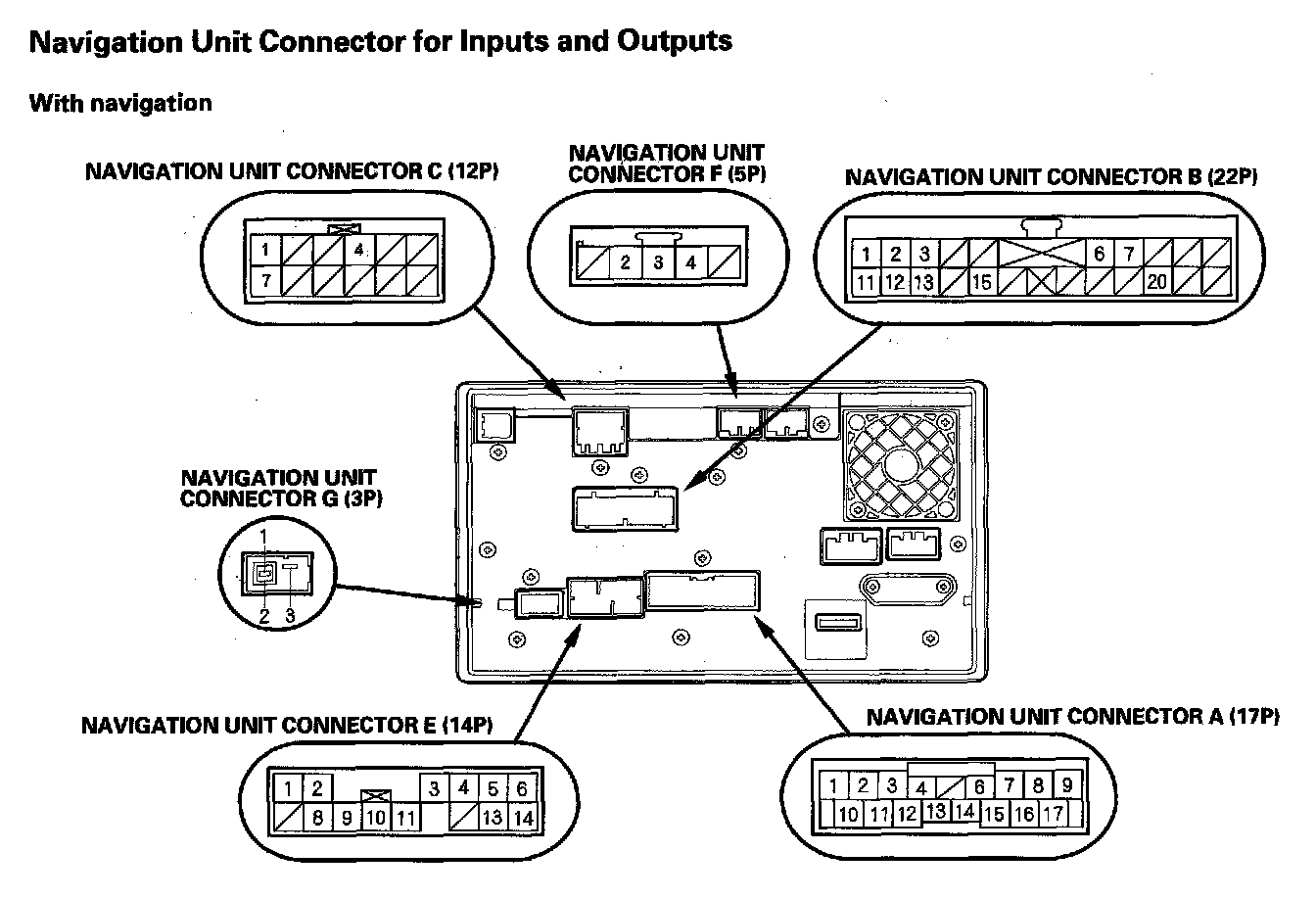

Navigation Unit Connector For Inputs And Outputs Part 6:

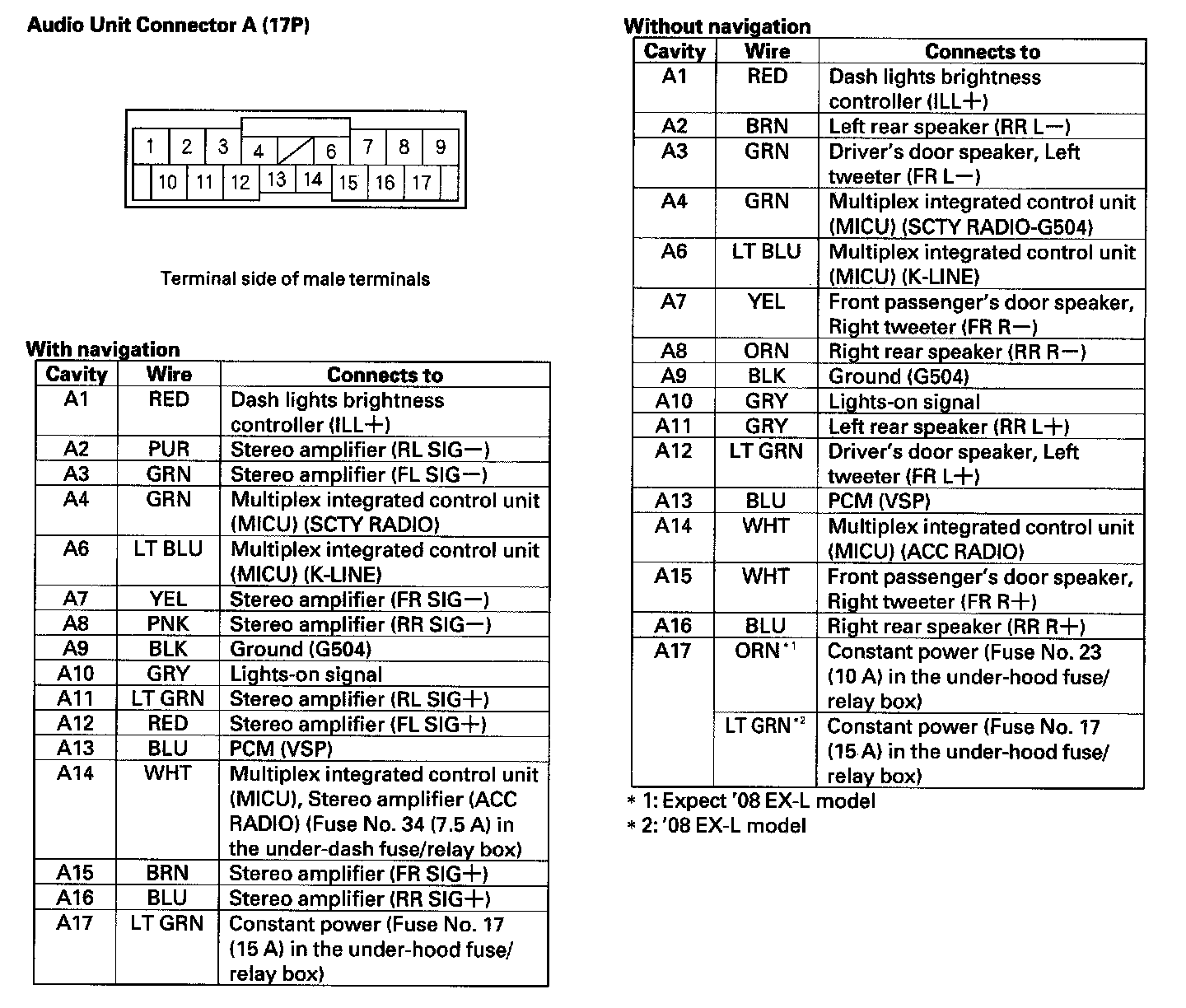

Navigation Unit Connector For Inputs And Outputs Part 7:
