Solar Sensor: Service and Repair

Sunlight Sensor Replacement

1. Remove the center upper dashboard panel.

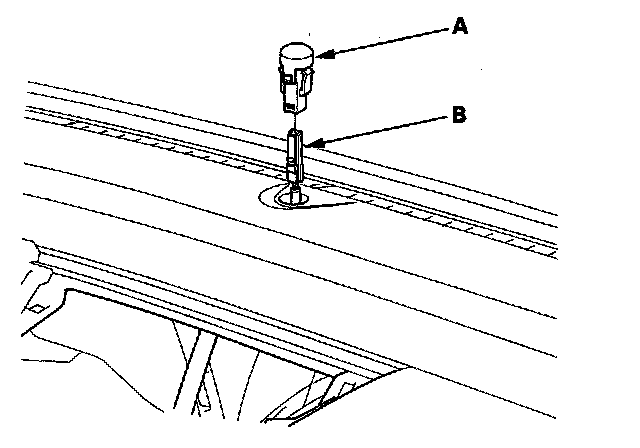

2. Push out the sunlight sensor (A) from behind the dashboard. Disconnect the 2P connector (B) from the sunlight sensor. Be careful not to damage the sensor and the dashboard.






3. Install the sensor in the reverse order of removal.
