Service Specifications

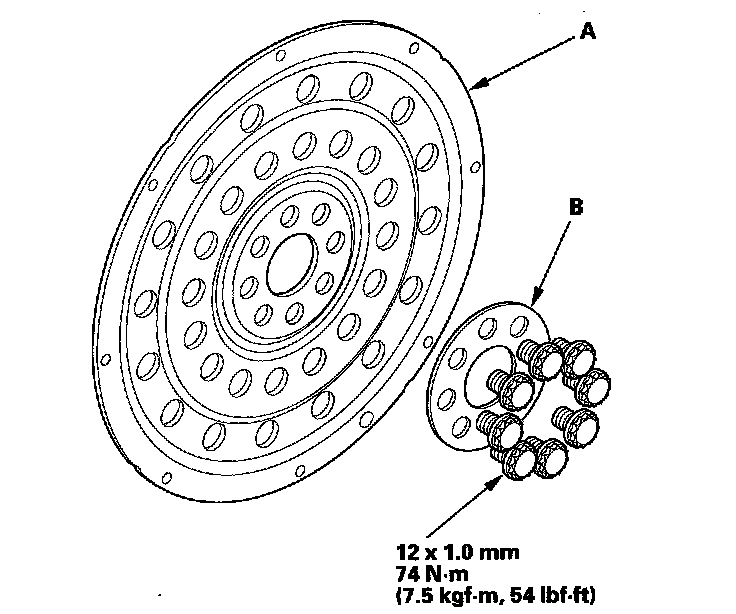

Drive Plate





Tighten the eight bolts in a crisscross pattern in at least two steps.

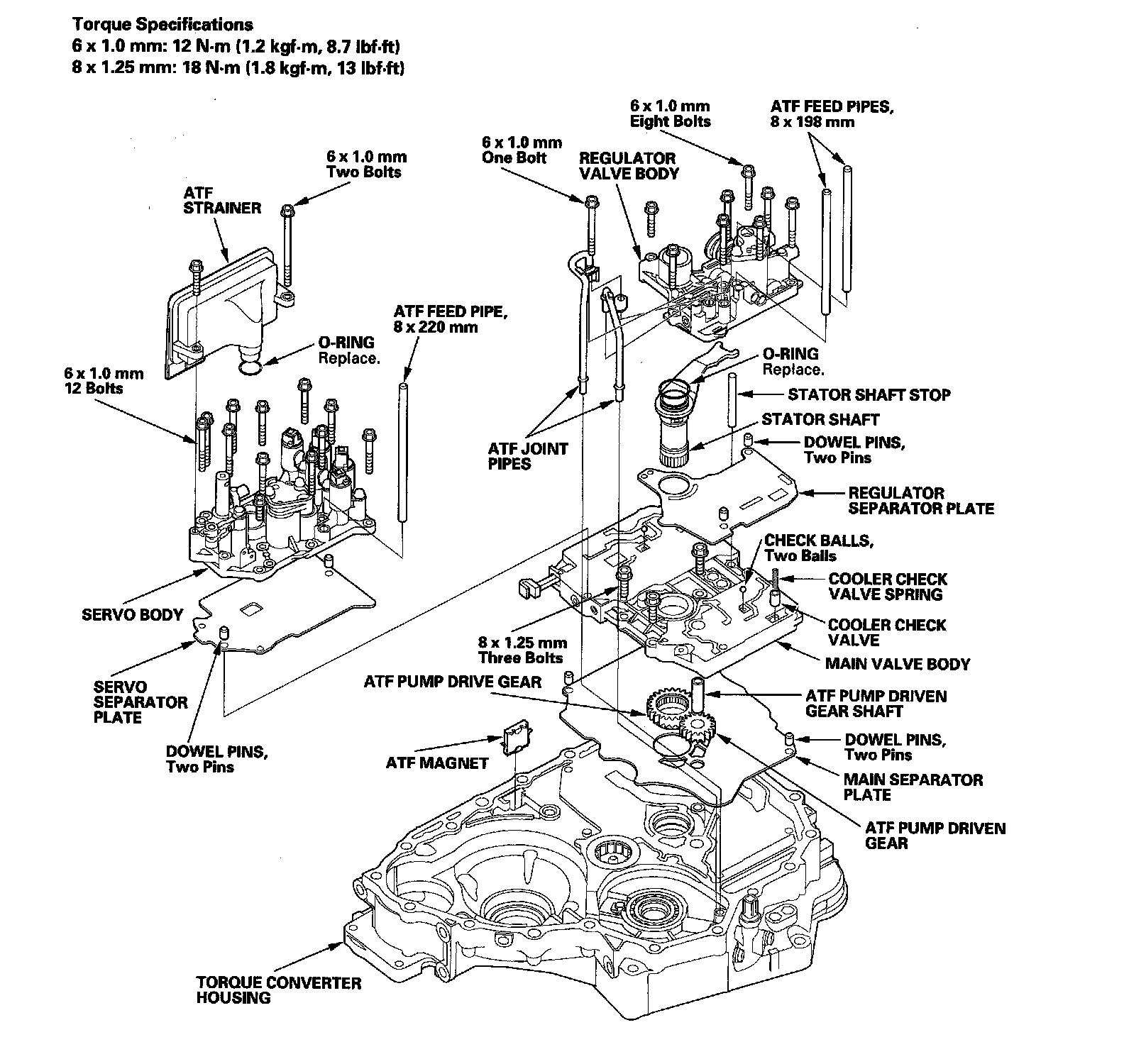

Valve Body

Valve Body:

For information regarding Transmission Overhaul Specifications, please refer to Service and Repair, Procedures Procedures
