FTP Sensor Replacement

  1. Raise the vehicle on a lift.
  2. Remove the cover (see EVAP CANISTER REPLACEMENT ).
  3. Remove the EVAP canister baffle cover (see EVAP CANISTER REPLACEMENT ).
  4. Disconnect the FTP sensor connector (A).

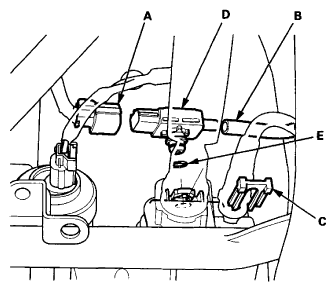

    Fig 1: Identifying FTP Sensor Connector, Hose, Retainer And FTP Sensor
    G06610196Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Disconnect the hose (B), remove the retainer (C), and remove the FTP sensor (D).
  6. Install the parts in the reverse order of removal with a new O-ring (E) and a new retainer.
