Fuel Injector Driver Module (CNG): Locations

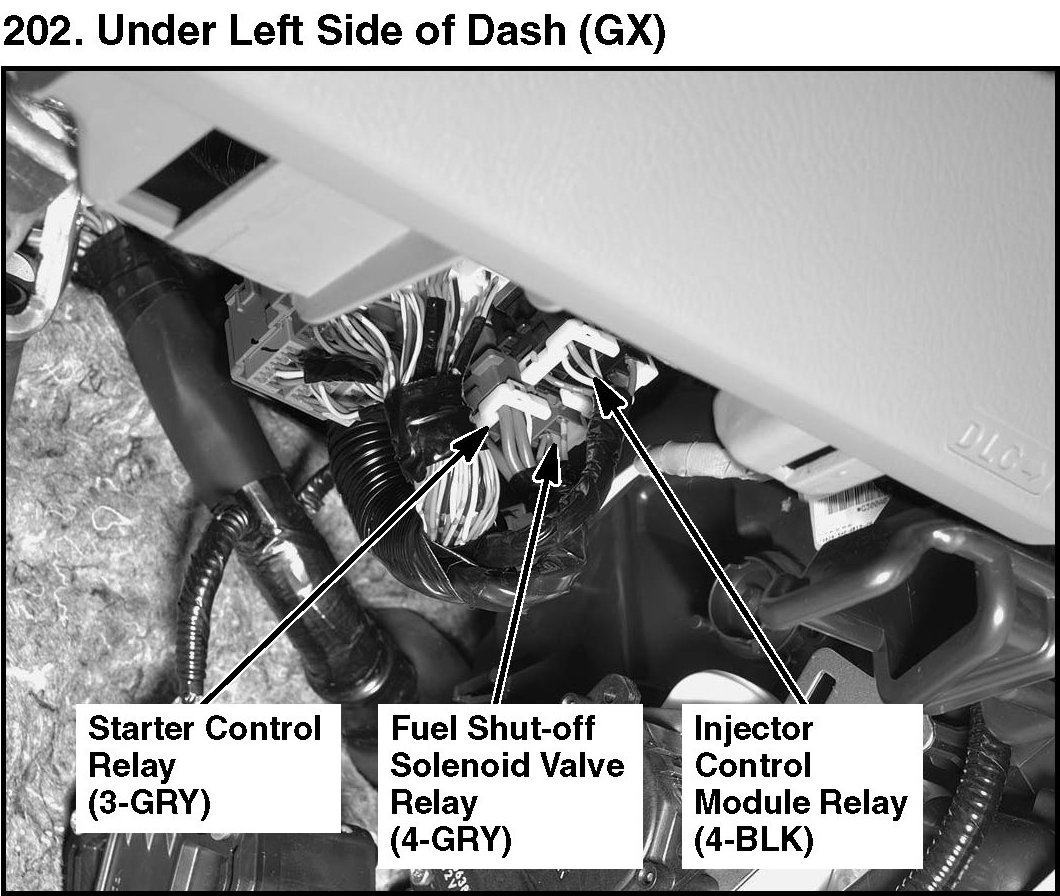

202. Under Left Side Of Dash (GX):

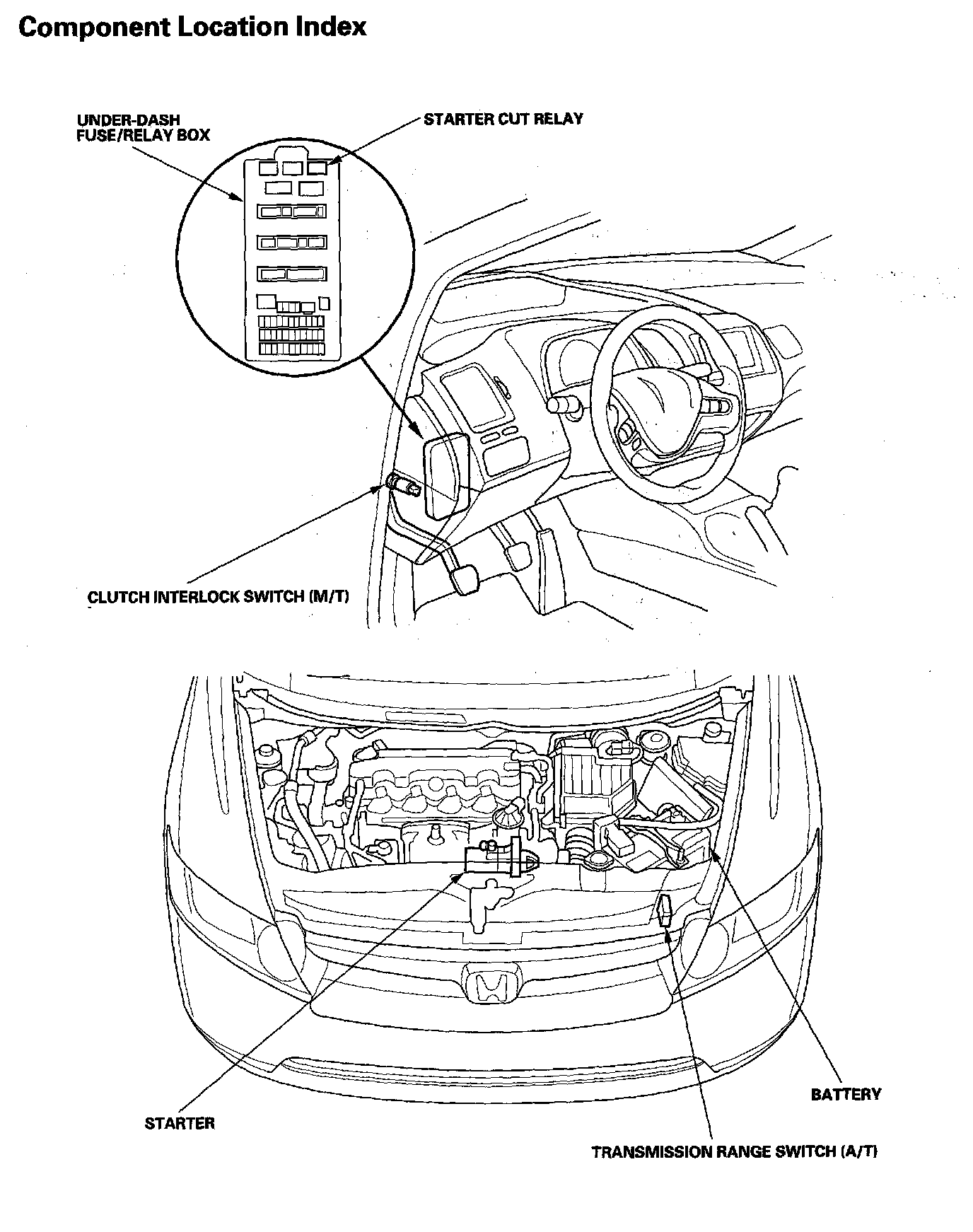

Starting System Component Location Index:

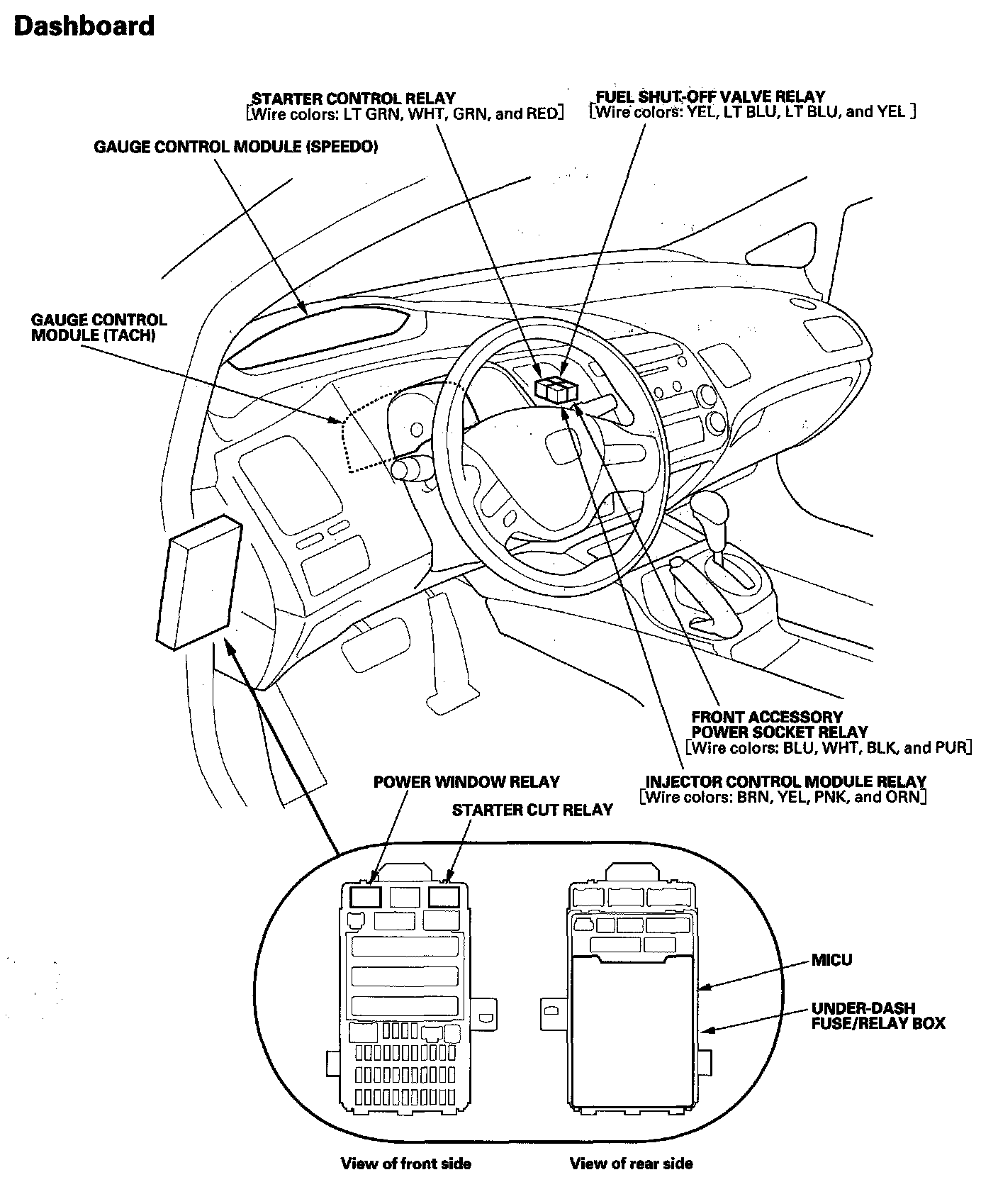

Relay And Control Unit Locations Dashboard:
