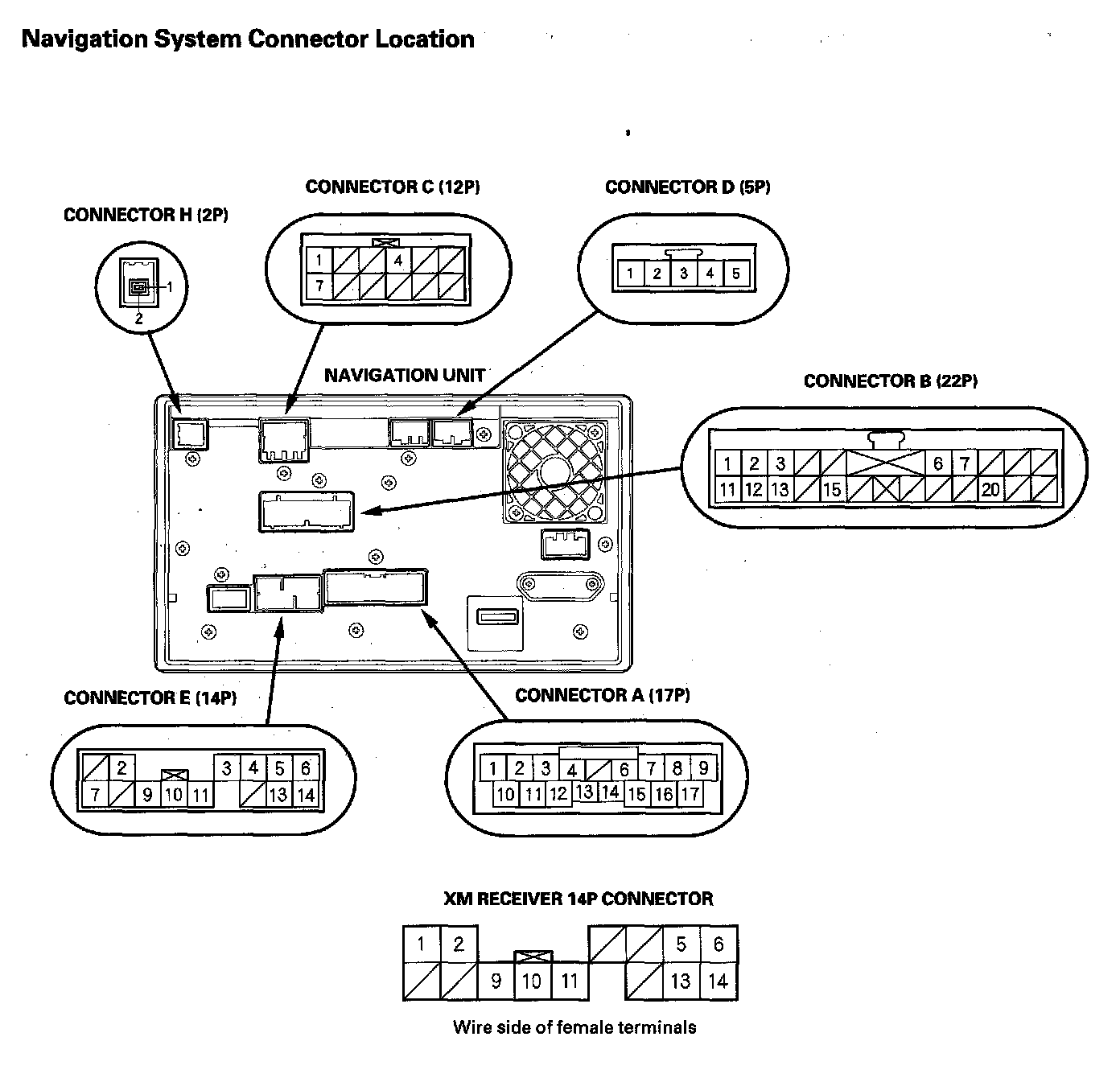

System Diagram

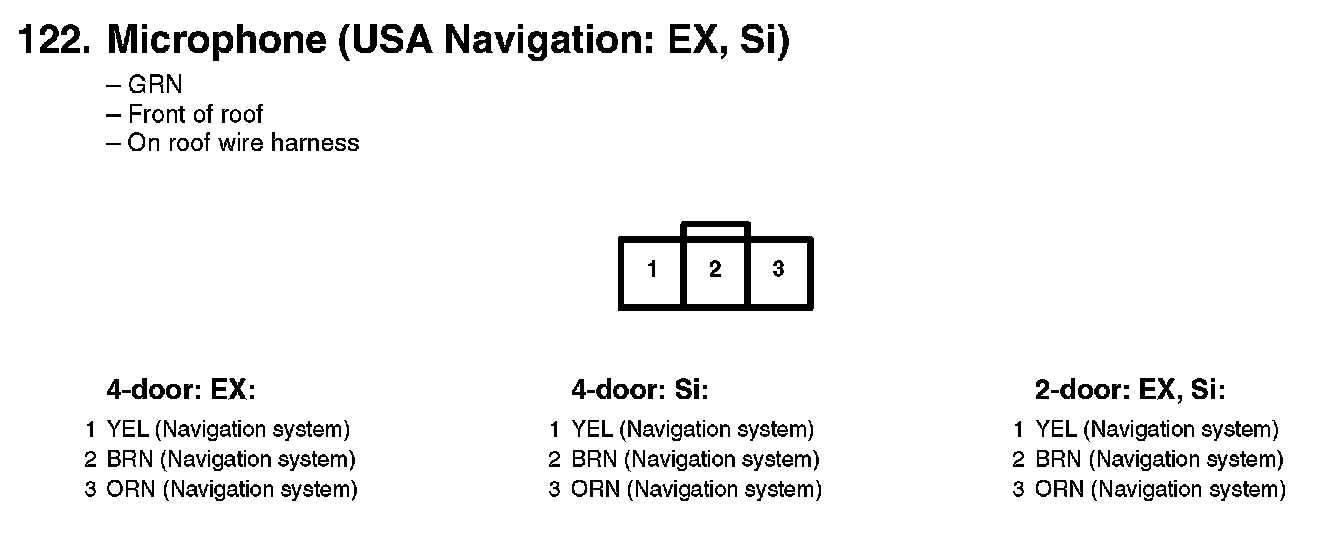

122. Microphone (USA Navigation: EX, Si):

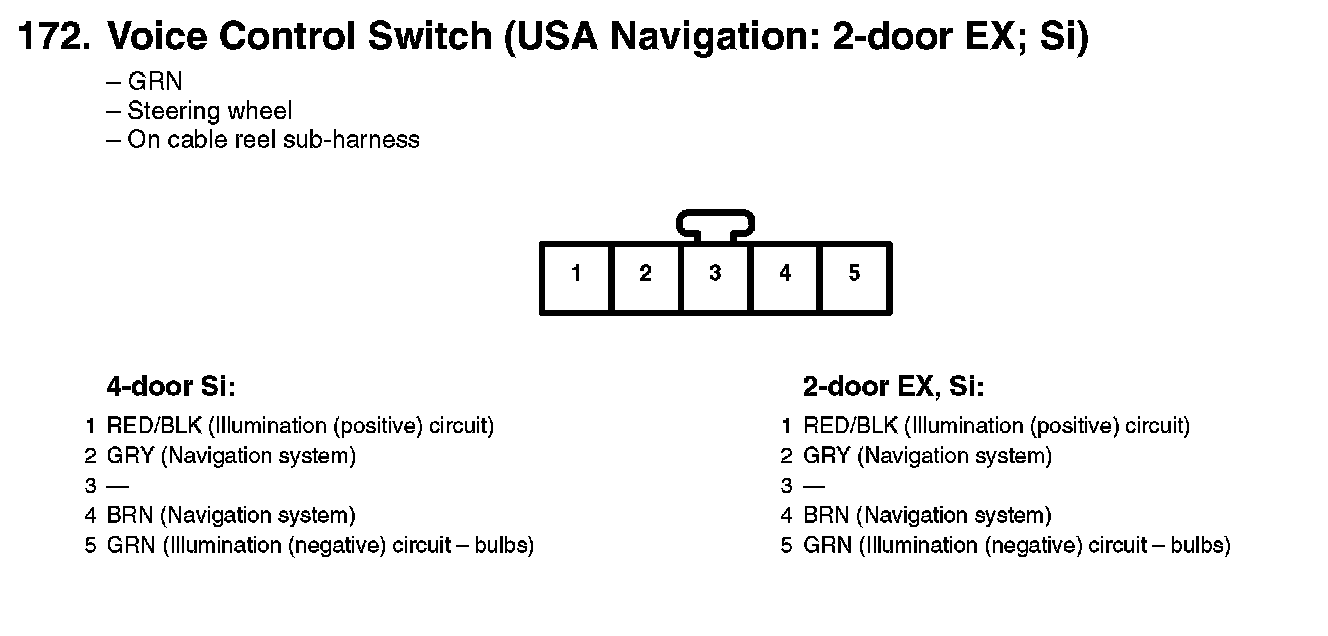

172. Voice Control Switch (USA Navigation: 2-door EX; Si):
