Knock Sensor: Locations

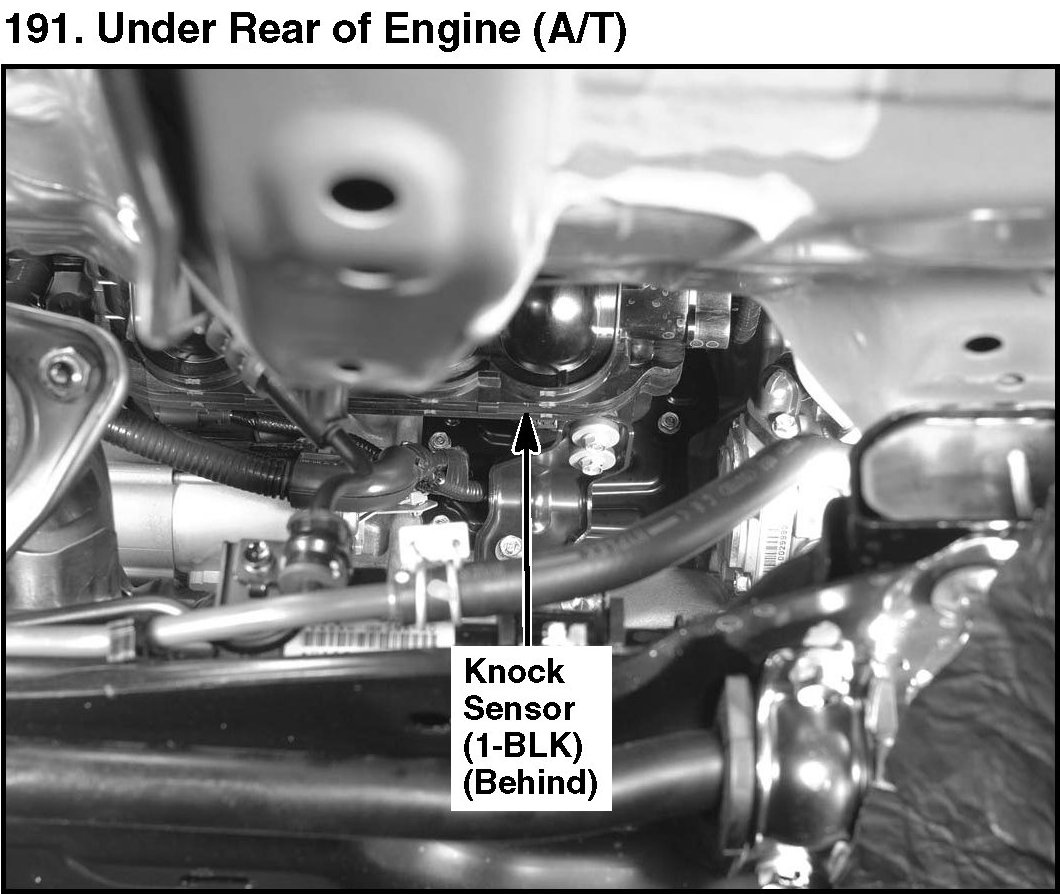

191. Under Rear Of Engine (A/T):

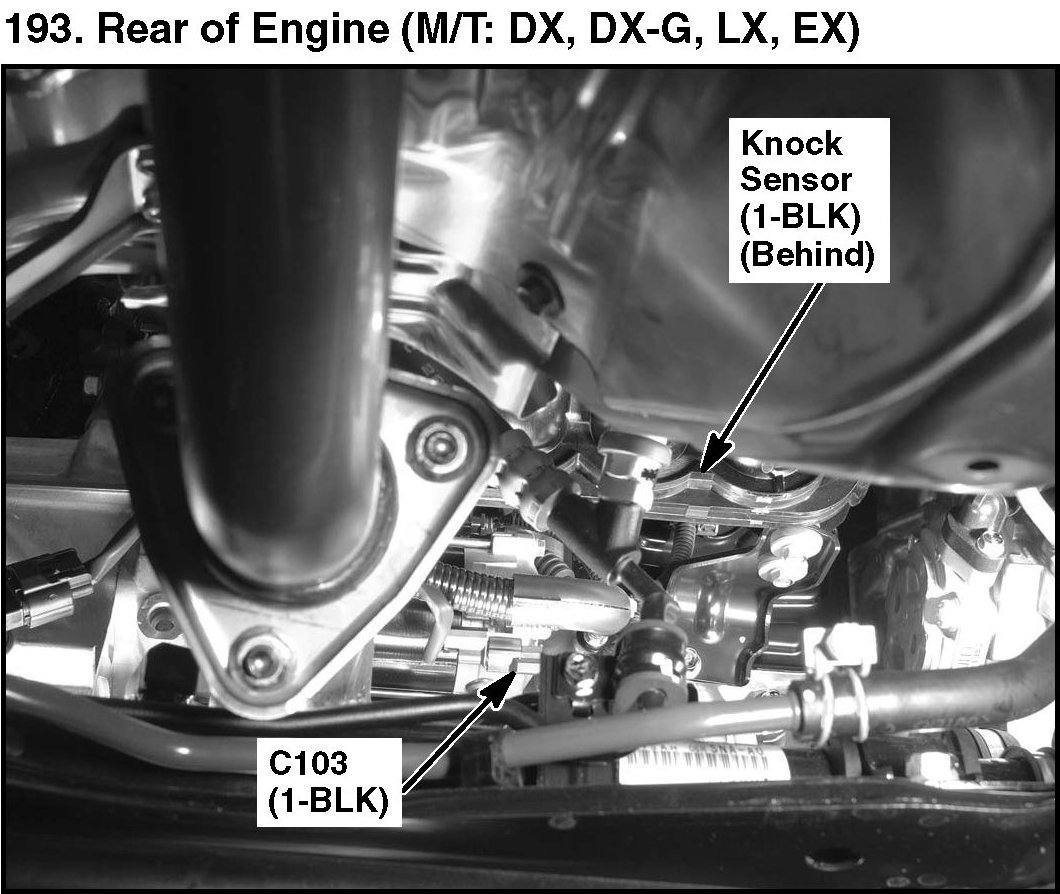

193. Rear Of Engine (M/T: DX, DX-G, LX, EX):



PGM-FI System Component Location Index:
