Oil Pressure Sensor: Service and Repair

Oil Pressure Switch Replacement

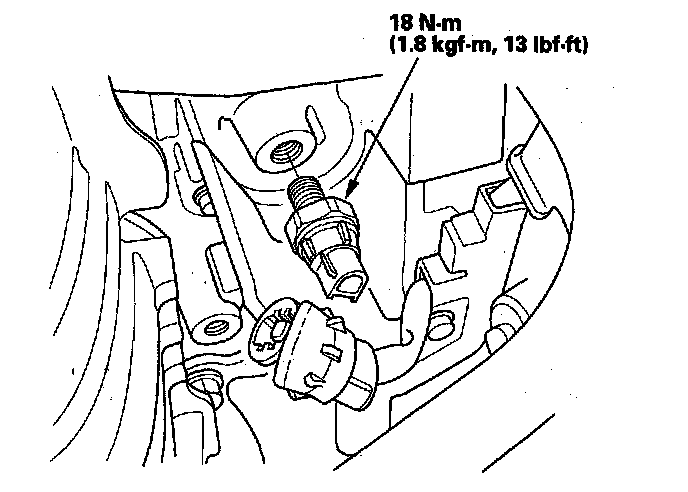

1. Disconnect the oil pressure switch connector, then remove the oil pressure switch.





2. Remove any old liquid gasket from the switch and switch mounting hole.
3. Apply very small amount of liquid gasket to the oil pressure switch threads, then install the oil pressure switch.

NOTE: Using too much liquid gasket may cause liquid gasket to enter the oil passage or the end of the new oil pressure switch.
