Oil Pressure Sensor: Testing and Inspection

Oil Pressure Switch Test

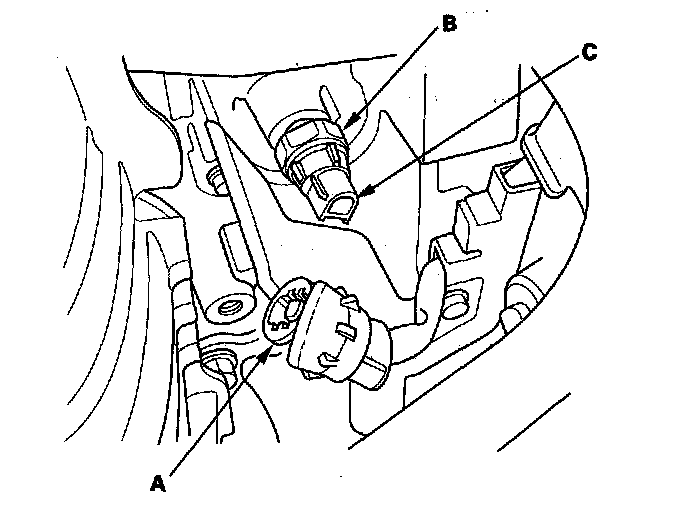

1. Remove the oil pressure switch connector (A) from the engine oil pressure switch (B).





2. Check for continuity between the positive terminal (C) and the engine (ground). There should be continuity with the engine stopped. There should be no continuity with the engine running.
