General Specifications

Cylinder Head




If either diameter is less than 10.6 mm (0.42 in.), replace the cylinder head bolt.




Tighten to 39 Nm (4.0 kgf-m, 29 lbf-ft)




After torquing, tighten all cylinder head bolts in two steps (90° per step). If you are using a new cylinder head bolt, tighten the bolt an extra 60°

Intake Manifold




Tighten the bolts and nuts in a crisscross pattern in three steps, beginning with the inner bolt.

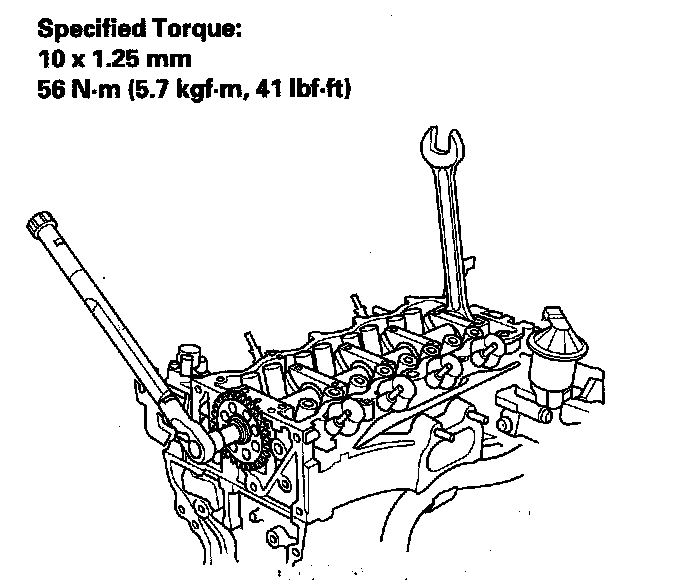

Camshaft Gear/Sprocket
