General Specifications

Main Bearing







Torque the bolts in sequence to 29 Nm (3.0 kgf-m, 22 lbf-ft) + 56°




Torque the 8mm bolts in sequence to 22 Nm (2.2 kgf-m, 16 lbf-ft)

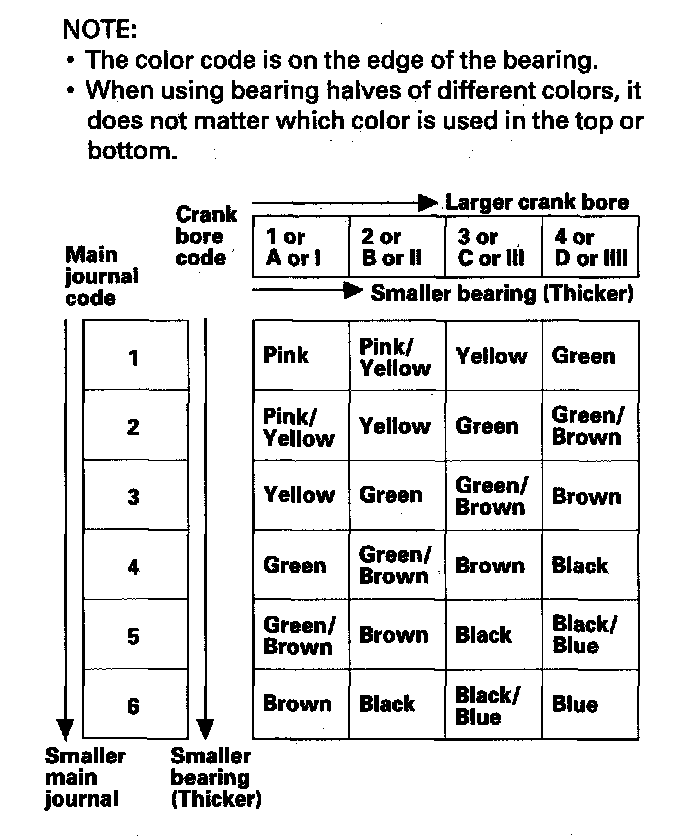

Main Journal Code






Connecting Rod Cap




Tighten 29 Nm (3.0 kgf-m, 22 lbf-ft) + 90°

Crankshaft Pulley







Tighten 49 Nm (5.0 kgf-m, 36 lbf-ft) + 90°

Flywheel




Torque the flywheel mounting bolts (B) in a crisscross pattern in several steps.

Oil Pump






Exhaust Manifold
Exhaust Manifold Bolt 10 x 1.25 mm
Torque 45 Nm (4.5 kgf-m, 33 lbf-ft)



Water Pump
