View 226-250: 231

231. Audio Unit:

231. Audio Unit:

244. XM Receiver (USA: EX, SC):

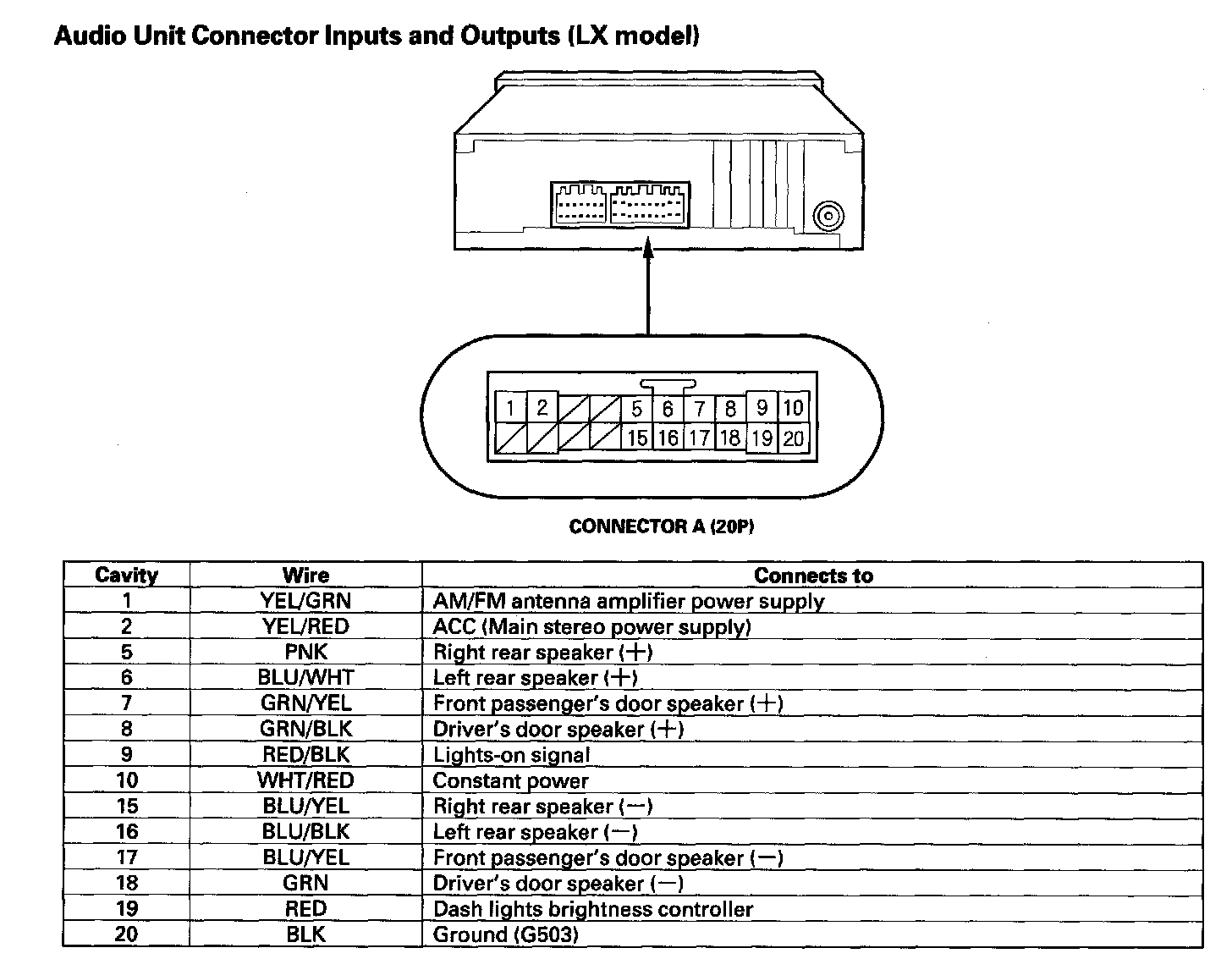

Audio Unit Connector Inputs And Outputs (LX Model):

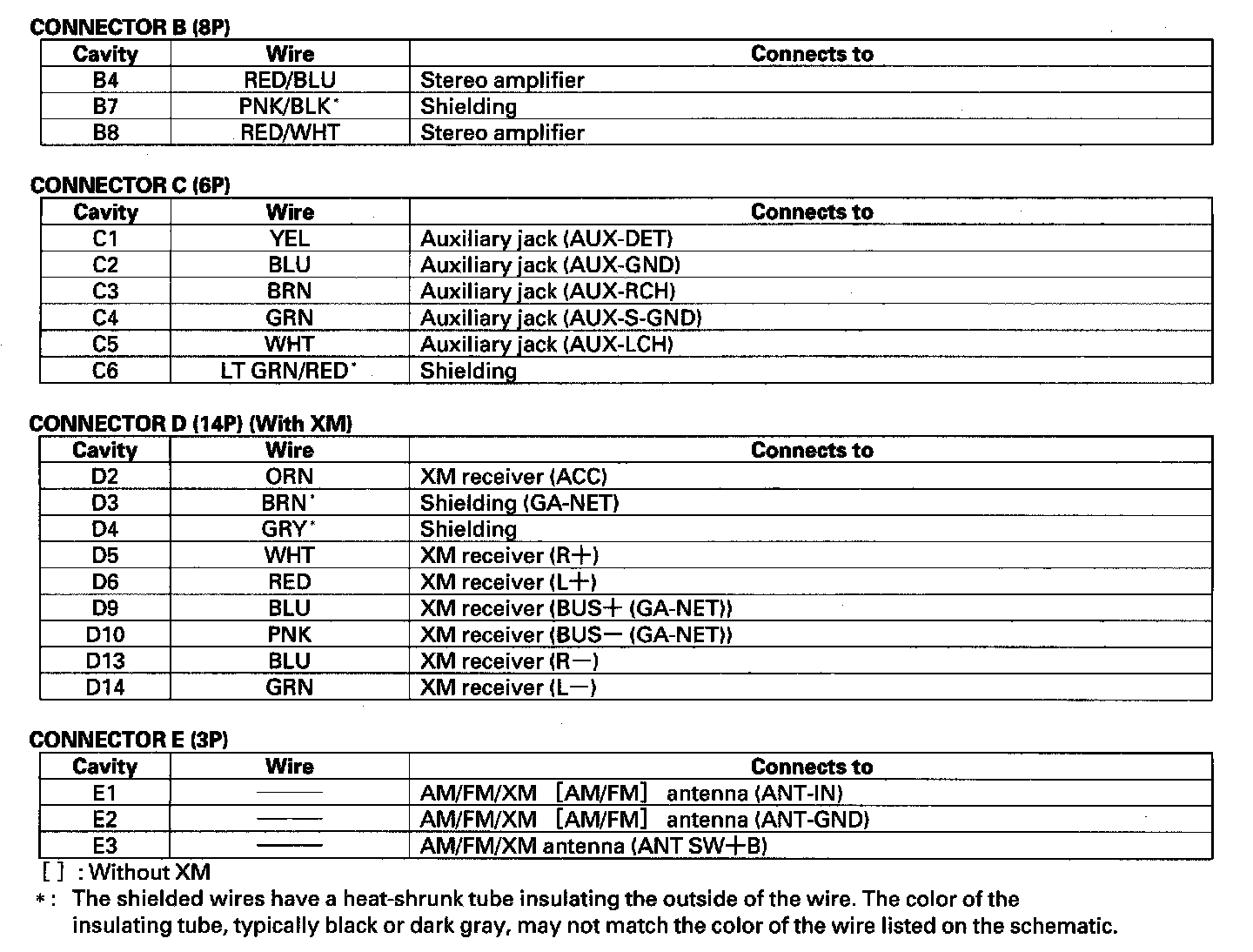

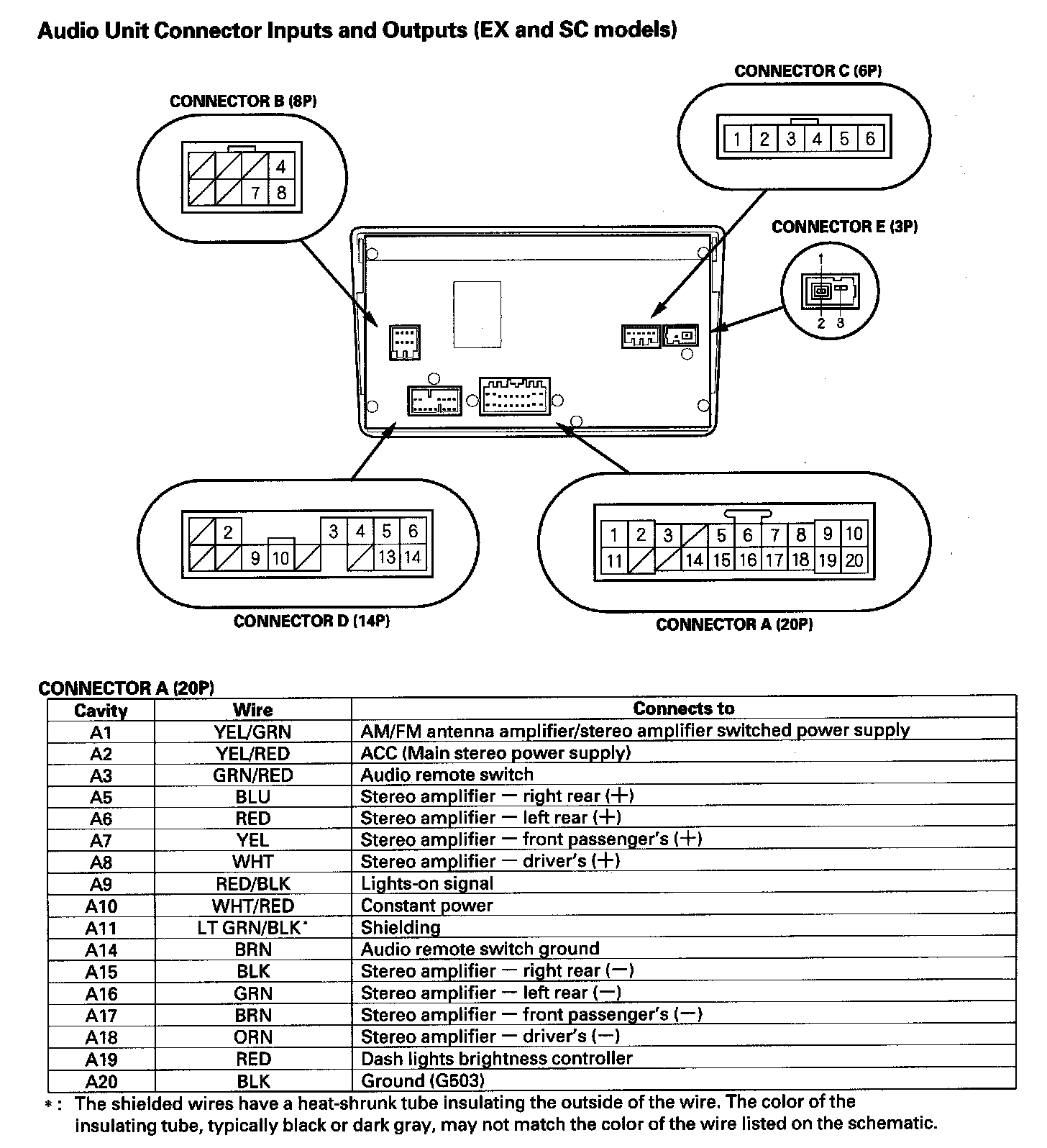

Audio Unit Connector Inputs And Outputs (EX And SC Models) (Part 1):

Audio Unit Connector Inputs And Outputs (EX And SC Models) (Part 2):

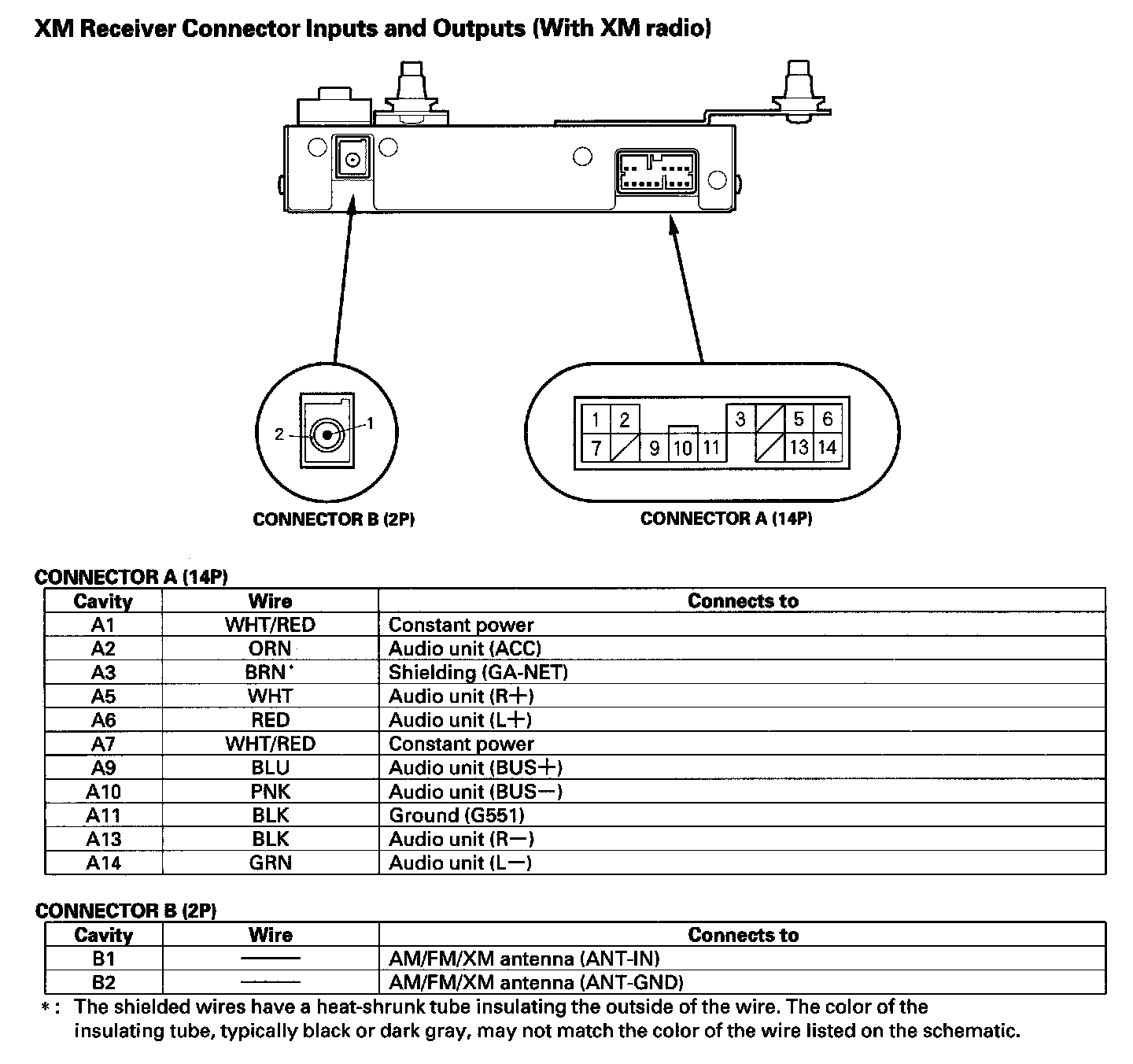

XM Receiver Connector Inputs And Outputs (With XM Radio):
