Headlamp: Service and Repair

Headlight Replacement

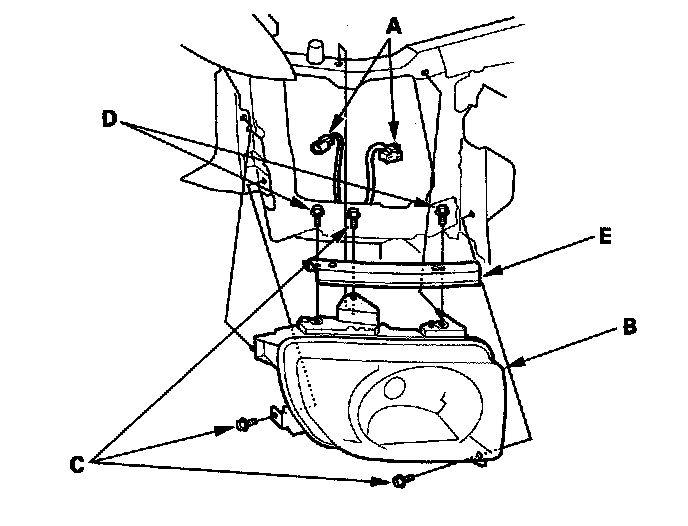

Except SC model

1. Remove the front bumper.
2. Disconnect the connectors (A) from the headlight (B).






3. Remove the three mounting bolts (C) and headlight assembly.
4. Remove the two bolts (D) and bumper upper beam (E).
5. Install in the reverse order of removal.
6. After replacement, adjust the headlights.

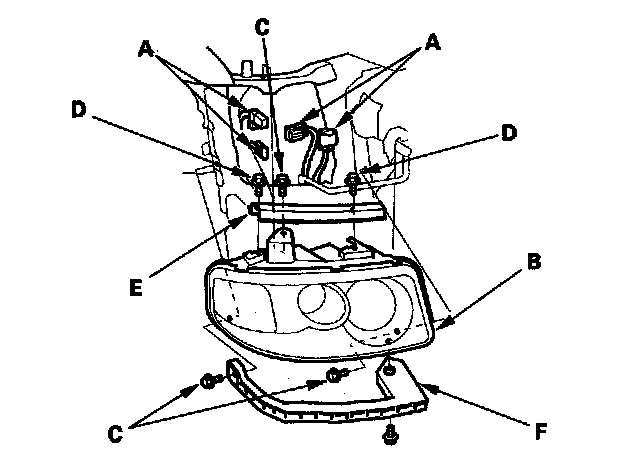

SC model

1. Remove the front bumper.
2. Disconnect the connectors (A) from the headlight (B).






3. Remove the three mounting bolts (C) and headlight assembly.
4. Remove the two bolts (D) and bumper upper beam (E).
5. Remove the bolt and corner upper beam (F).
6. Install in the reverse order of removal.
7. After replacement, adjust the headlights.
