Air Bag Control Module: Locations

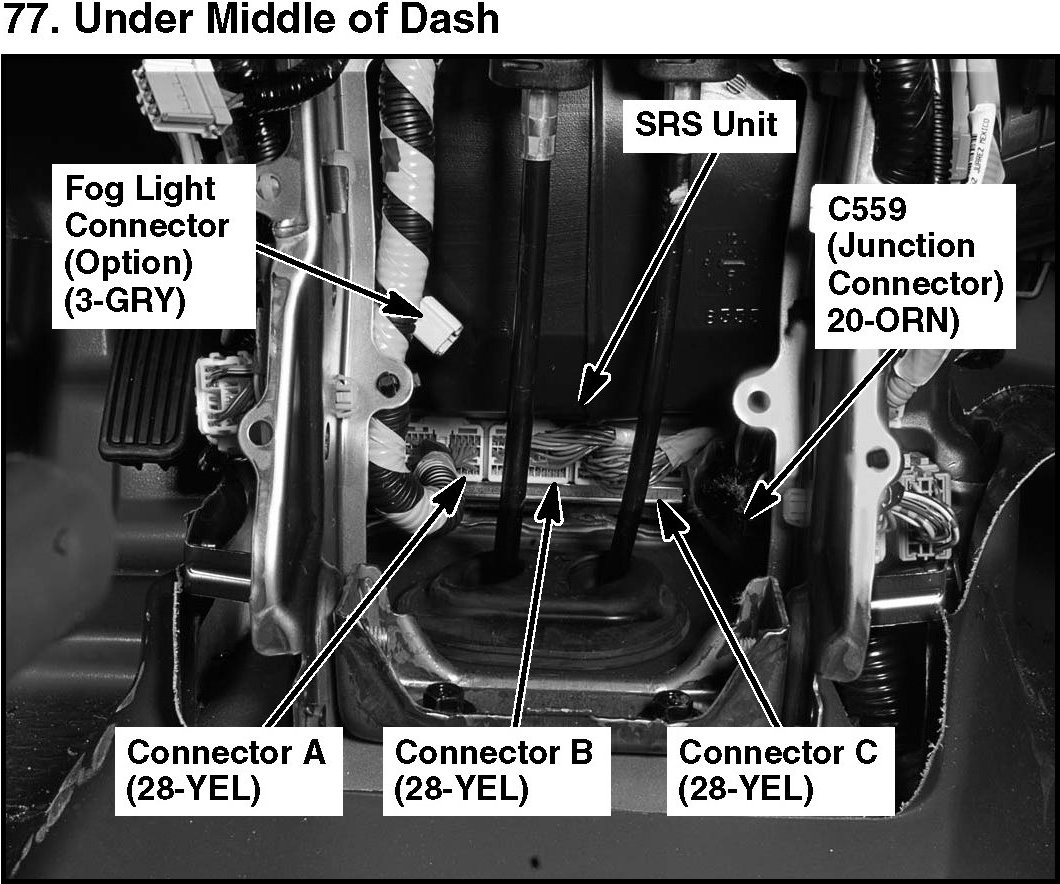

77. Under Middle Of Dash:

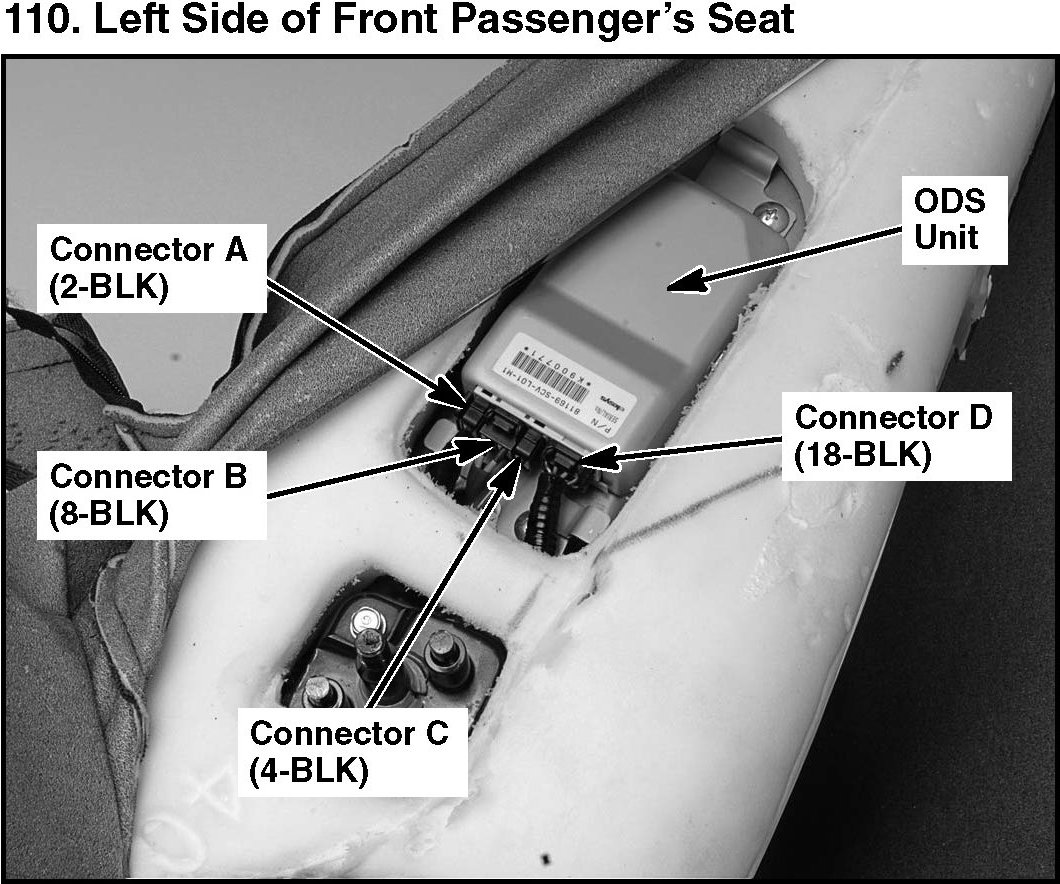

110. Left Side Of Front Passenger's Seat:



Relay And Control Unit Locations Door, Roof, And Seat:

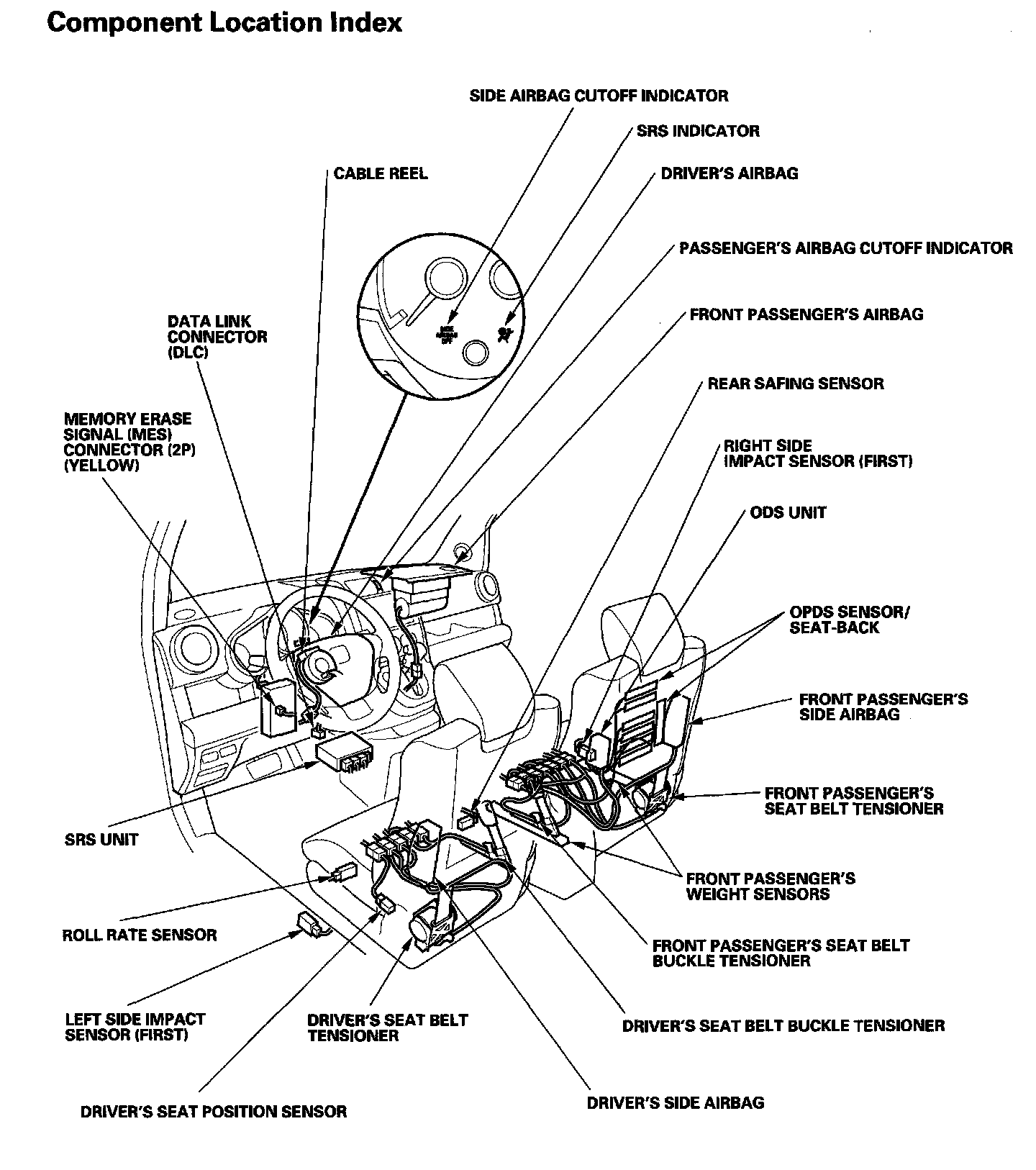

SRS Component Location Index:

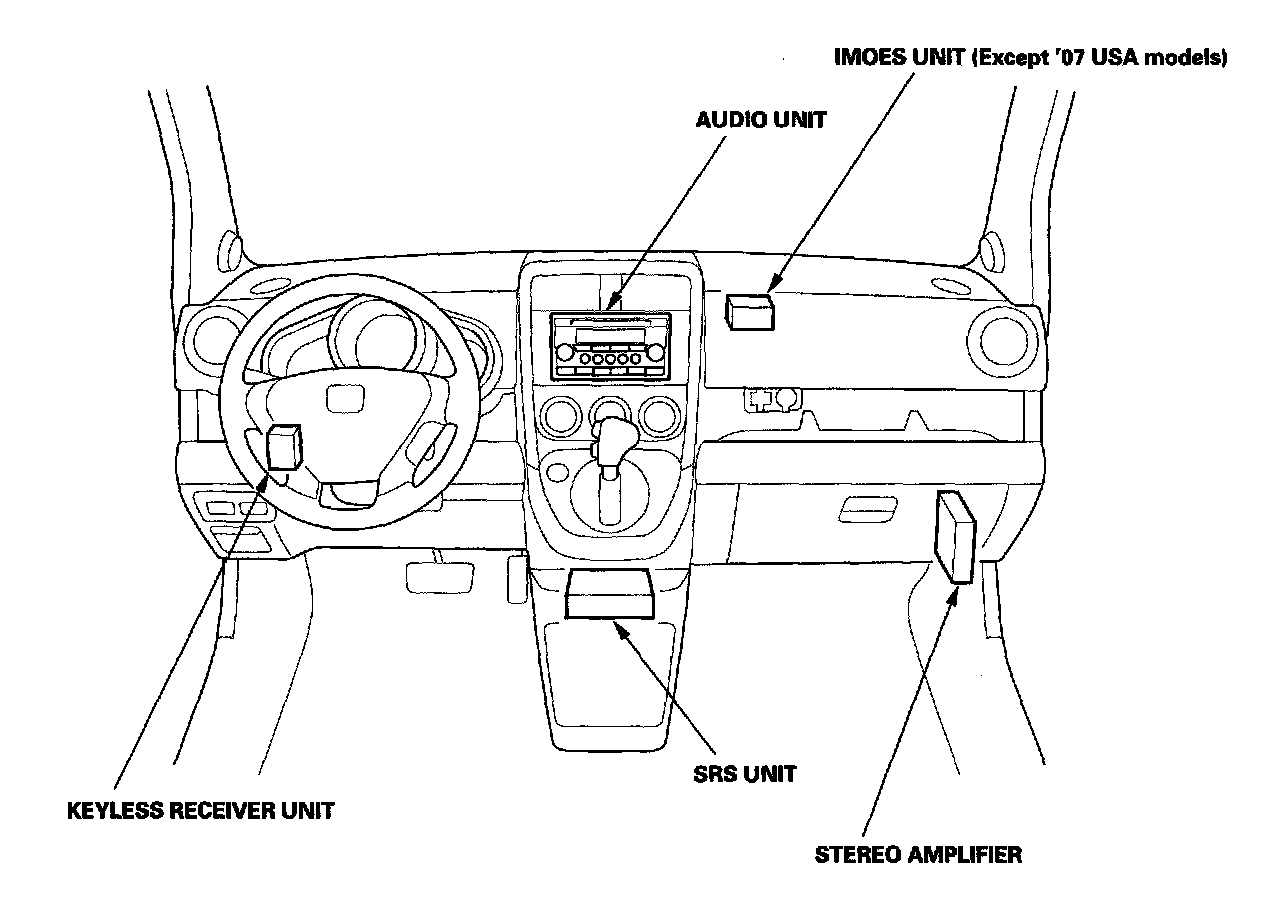

Relay And Control Unit Locations Dashboard:
