Transfer Case

Transfer Assembly

With Manual Transmission

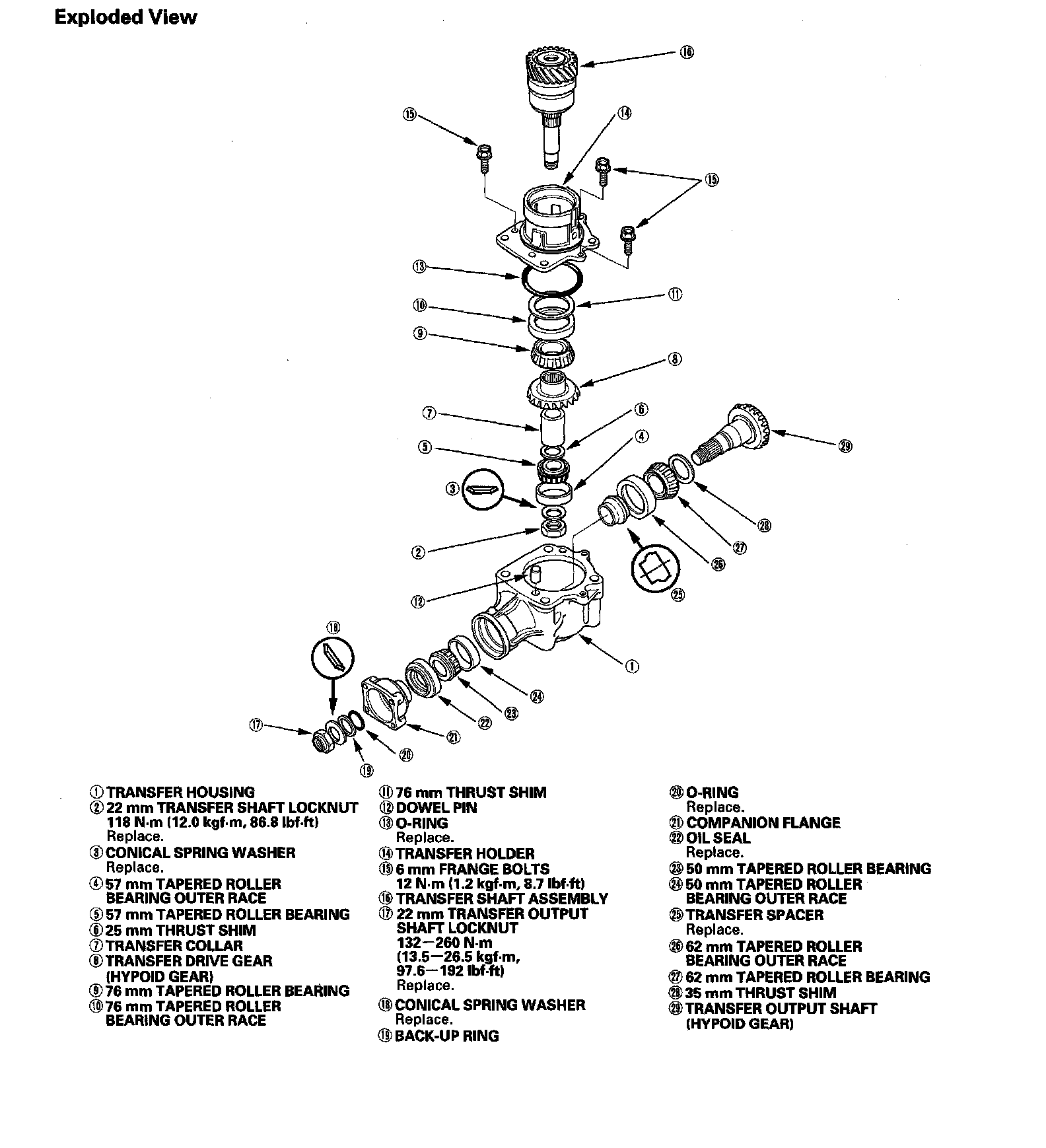

M/T Transfer Assembly:





With Automatic Transmission

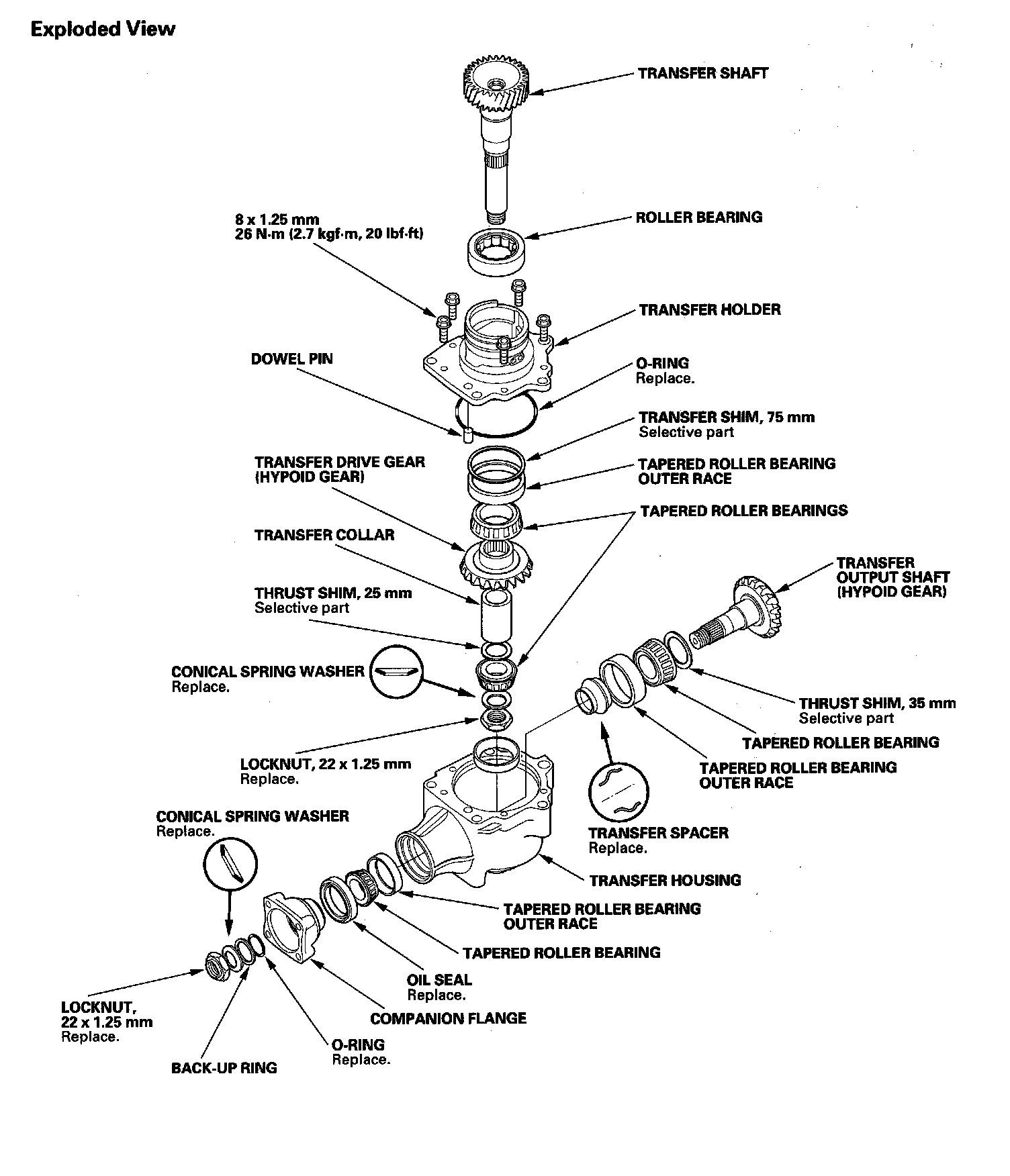

A/T Transfer Assembly:






For information regarding Transmission Overhaul Specifications please refer to Service and Repair Overhaul
