Exploded View

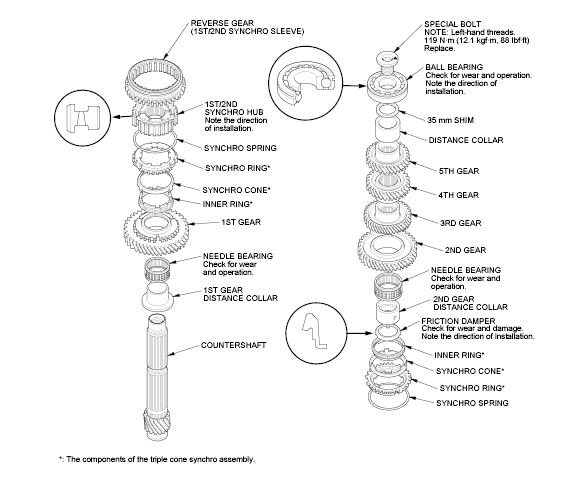

Fig 1: Identifying Countershaft Replacement Components With Torque Specifications
G00485814Courtesy of AMERICAN HONDA MOTOR CO., INC.
