Heater Control Panel

Heater Control Panel Removal/Installation

1. Remove the center panel.
2. Remove the rear window defogger switch, and the passenger's airbag cutoff indicator from the center panel.

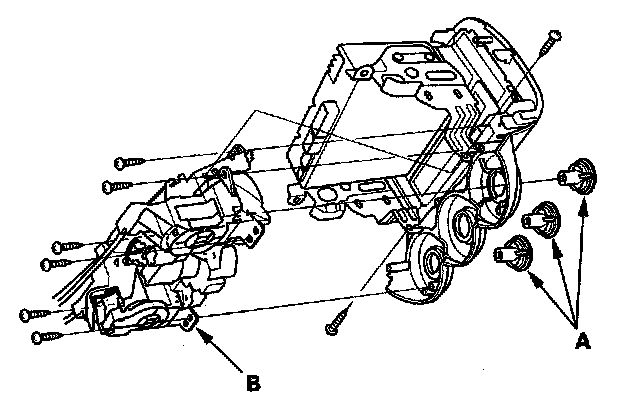

3. Remove the dials (A), then remove the self-tapping screws and the heater control panel (B).






4. Install the control panel in the reverse order of removal, and note these items:
- Adjust the air mix control cable, the mode control cable, and the recirculation control cable.
- After installation, operate the control panel controls to see whether it works properly.
