Air Bag Control Module: Locations

71. Under Middle Of Dash:



105. Left Side Of Front Passneger's Seat:

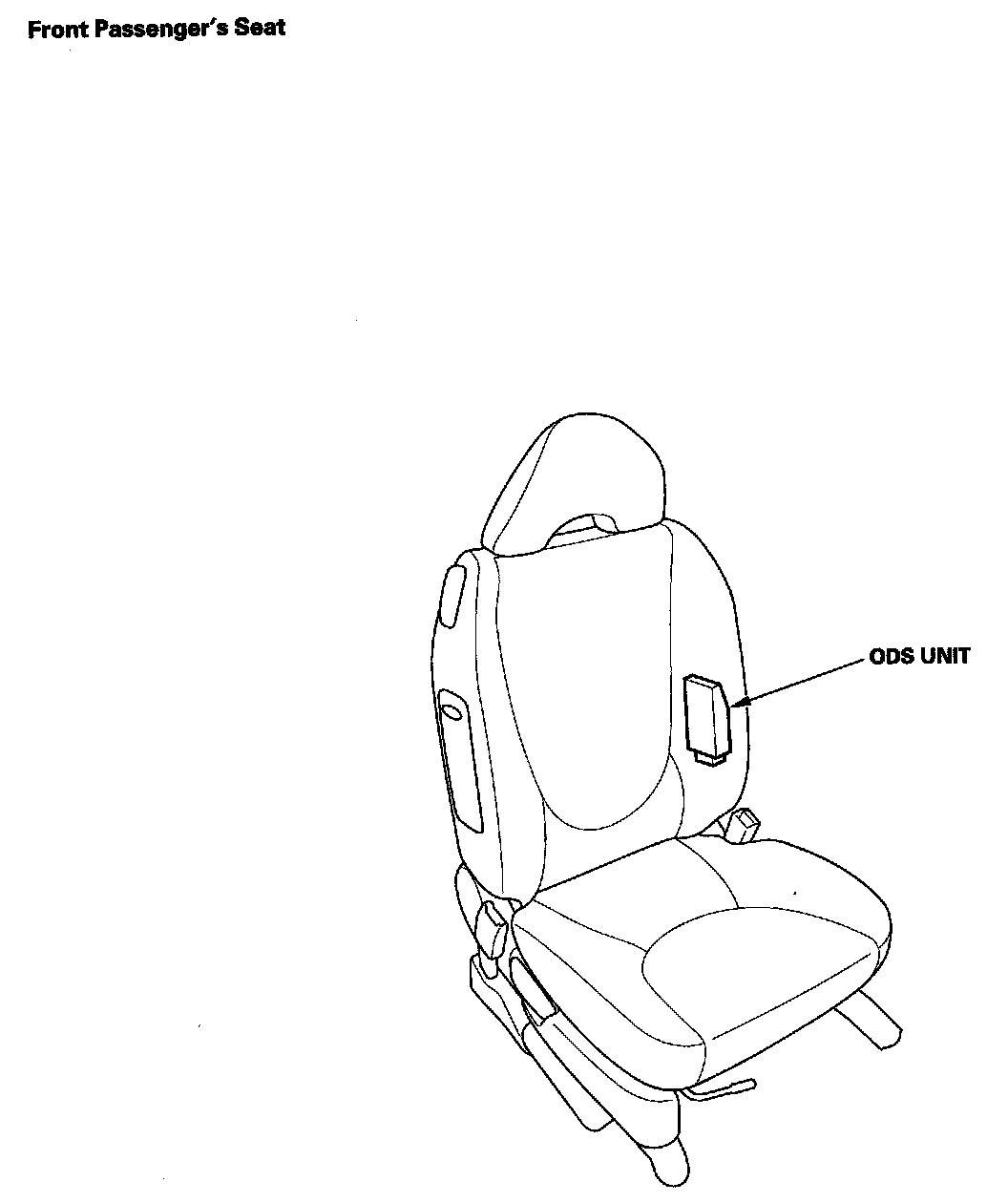

Relay And Control Unit Locations Front Passenger's Seat:

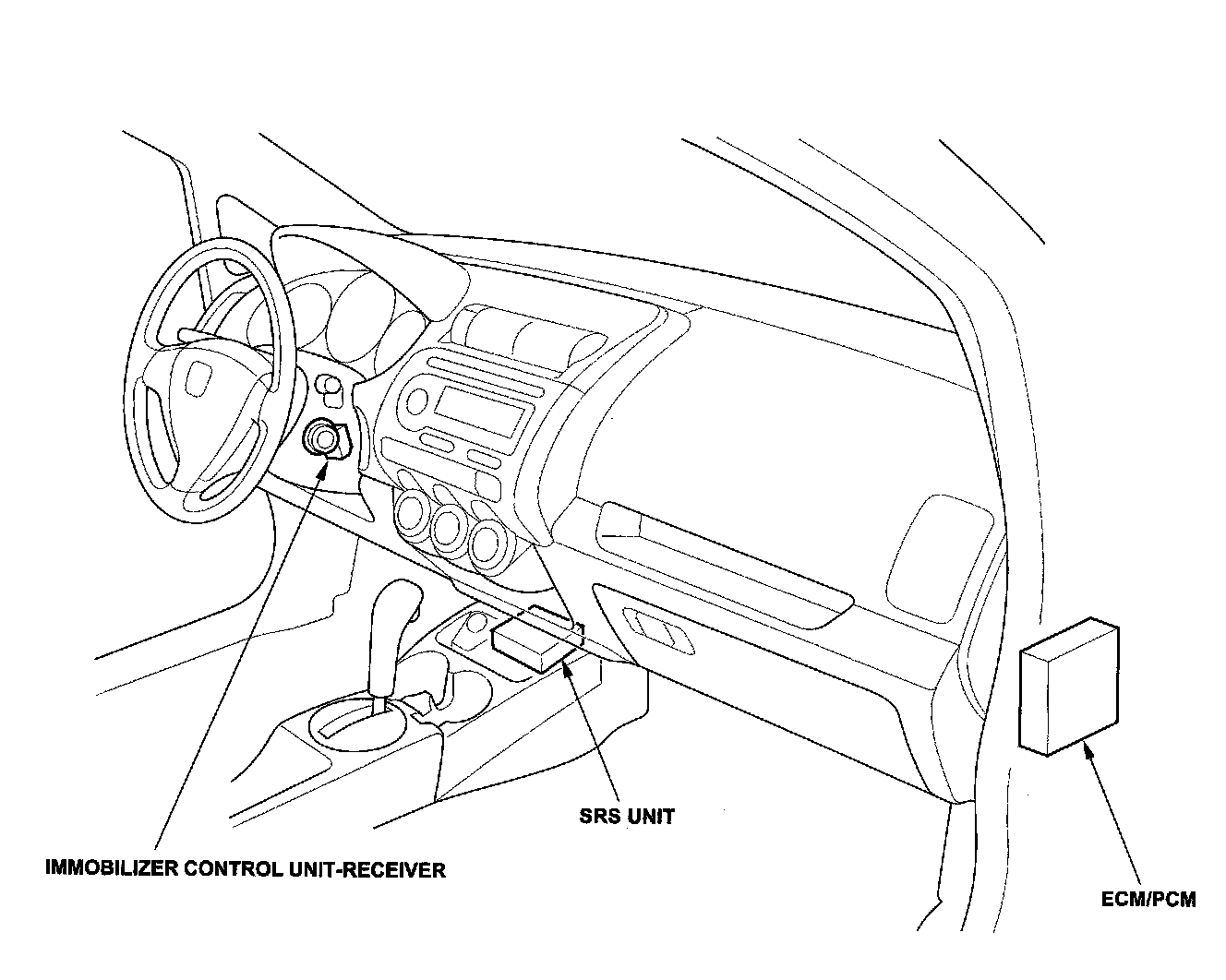

Relay And Control Unit Locations Dashboard:

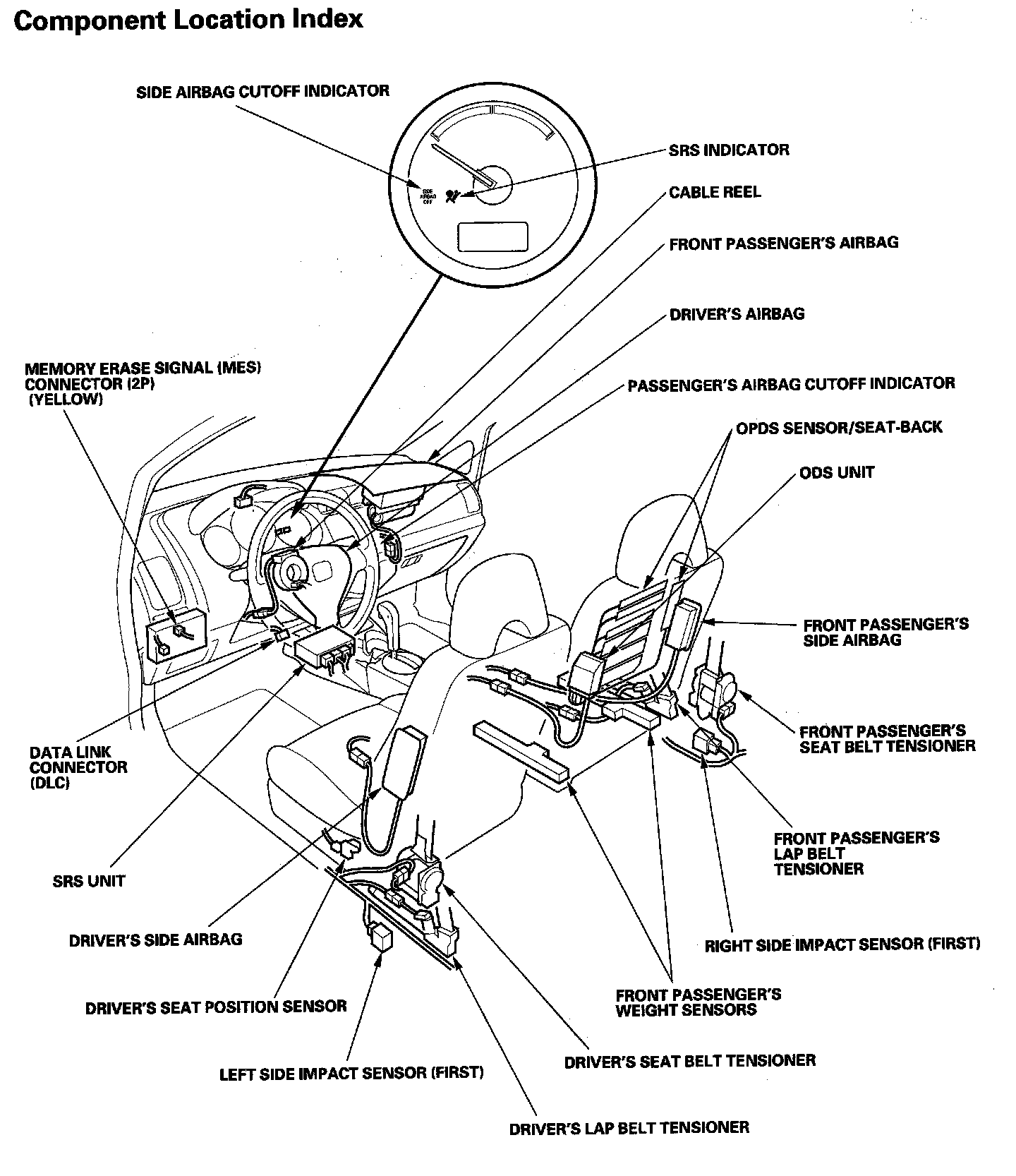

SRS Component Location Index:
