Passenger's Power Window Switch Test/Replacement

Passenger's Power Window Switch Test/Replacement

1. Remove the switch cover from the door panel.

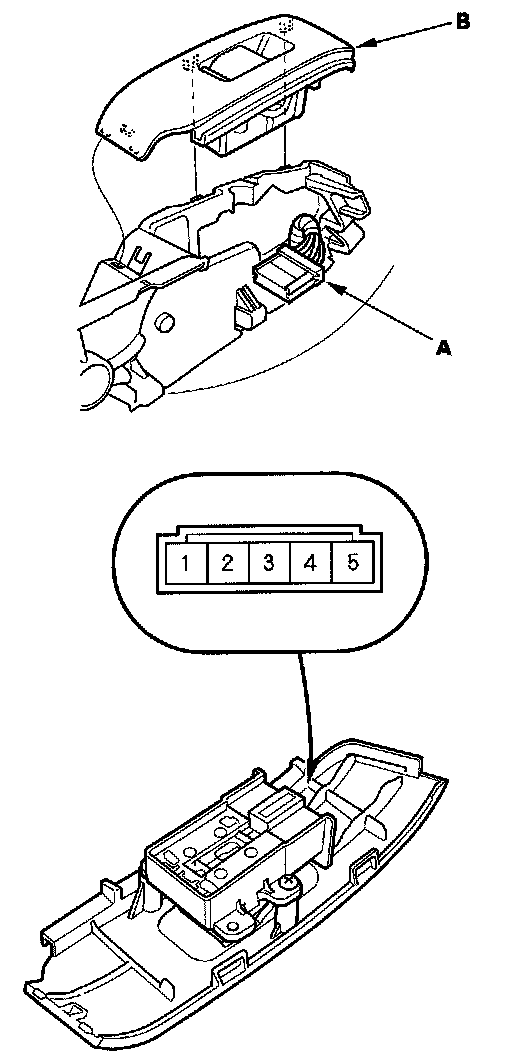

2. Disconnect the 5P connector (A) from the switch (B).

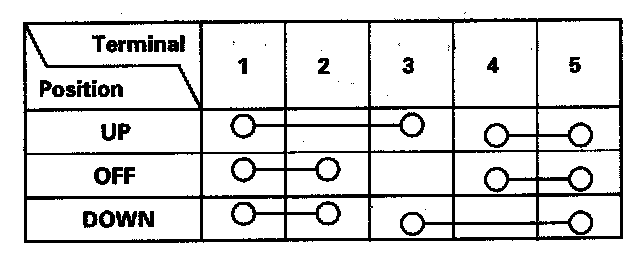

3. Check for continuity between the terminals in each switch position according to the table.






4. If the continuity is not as specified, replace the switch.

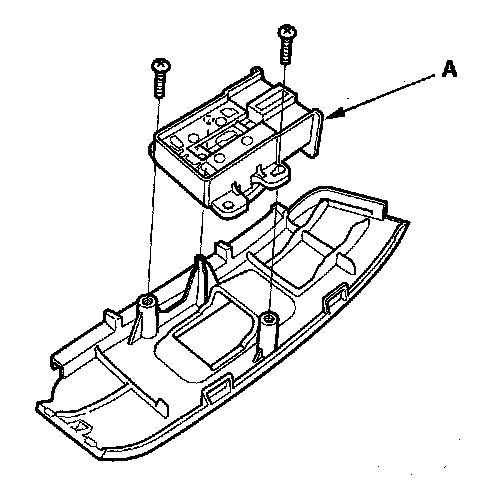

5. If the switch is faulty, replace it by removing the two mounting screws and the switch (A).
