Back-Up Sensor Control Unit Connector View (Honda Accessory: LX, EX, EX-L, Canada DX)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

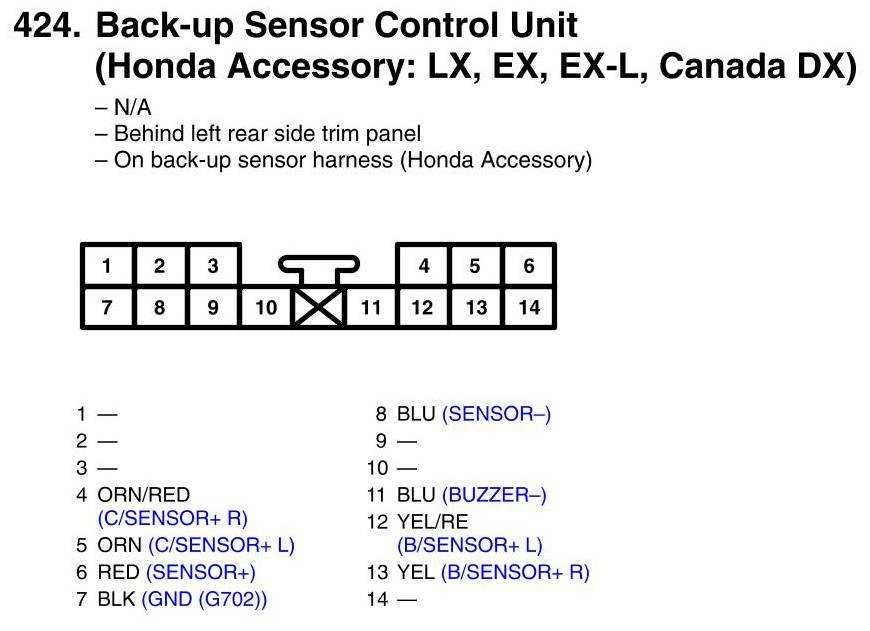

Back-Up Sensor Control Unit Connector View (Honda Accessory: LX, EX, EX-L, Canada DX)
