Rear A/C System Component Location Index

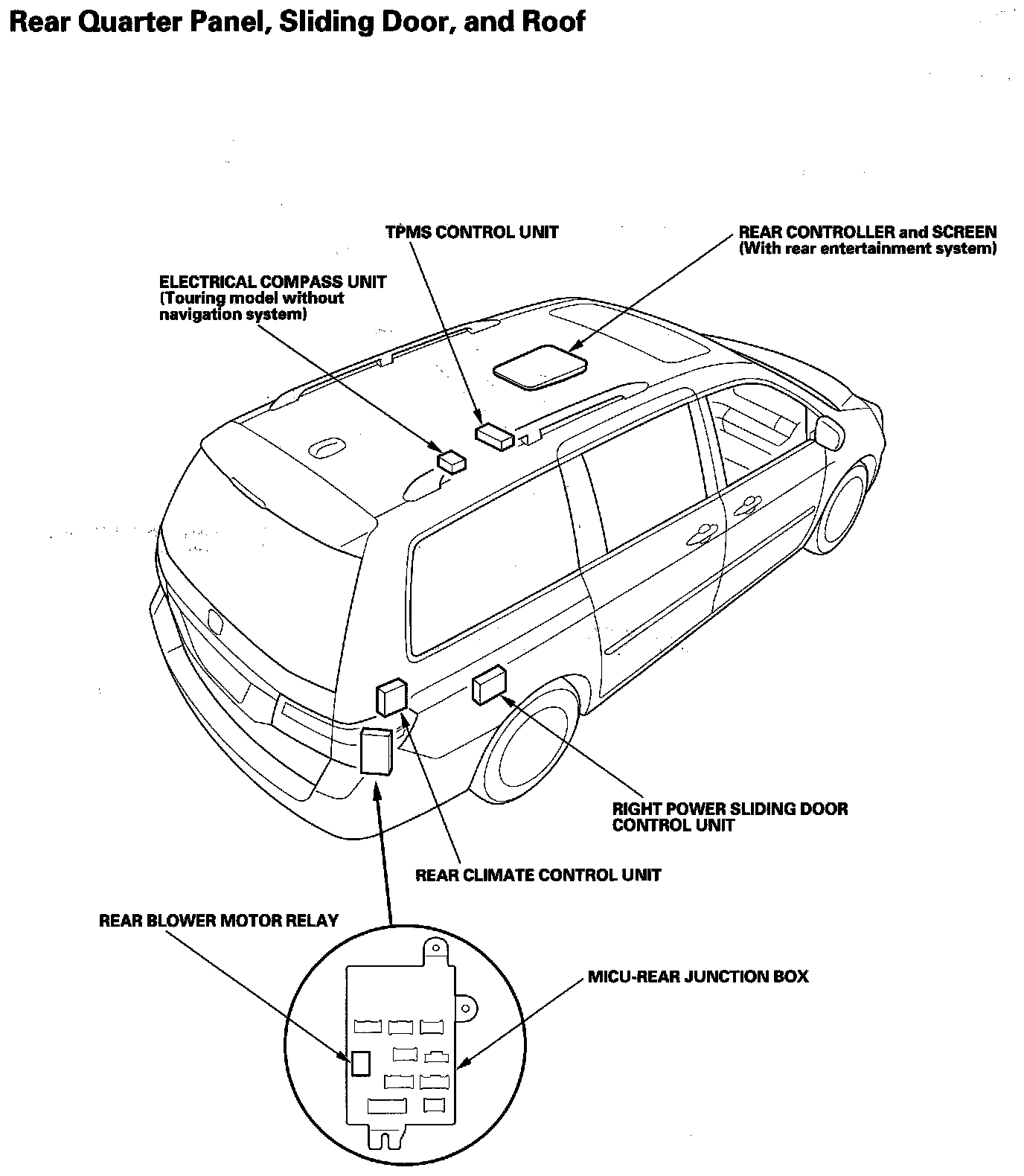

Relay And Control Unit Locations Rear Quarter Panel, Sliding Door, And Roof:

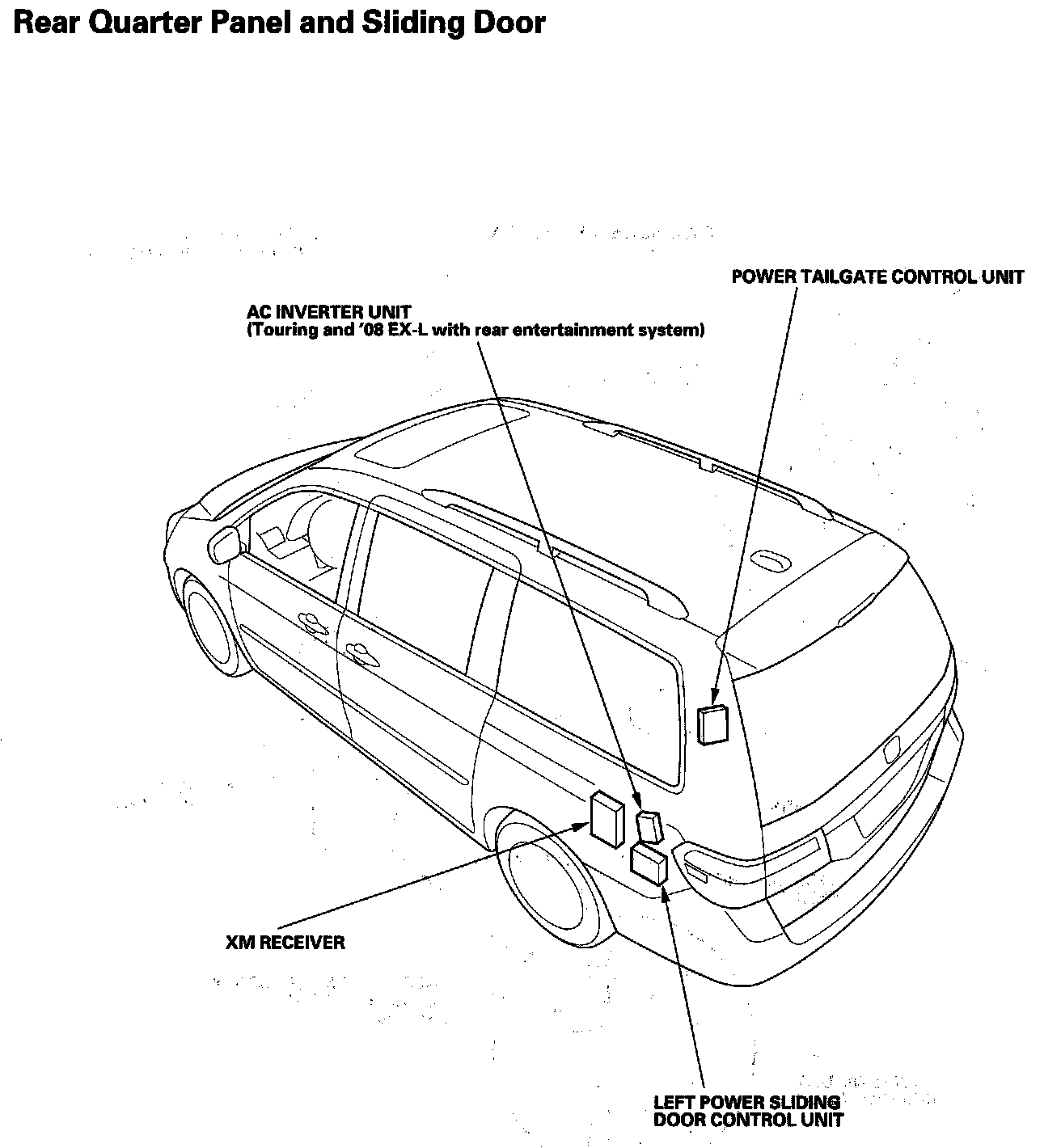

Relay And Control Unit Locations Rear Quarter Panel And Sliding Door:



Multiplex Integrated Control System Component Location Index:
