MAF Sensor Replacement
MAF Sensor ReplacementJ35A6 engine, J35A7 engine ('07 model)

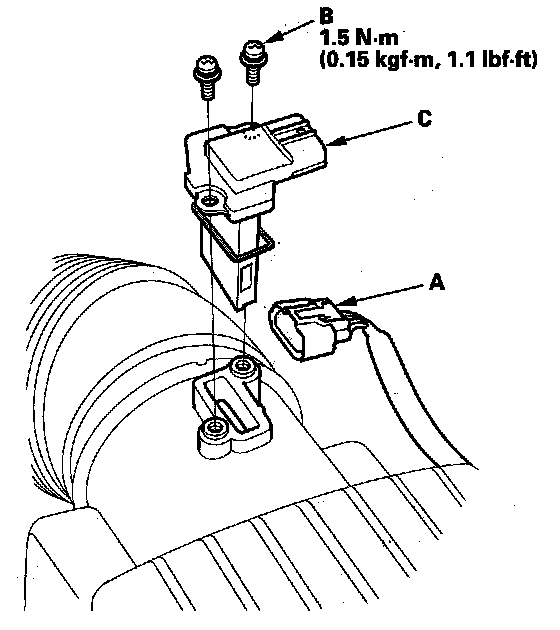

1. Disconnect the MAF sensor 5P connector (A).
2. Remove the screws (B).
3. Remove the MAF sensor (C).
4. Install the parts in the reverse order of removal.
J35A6 engine, J35A7 engine ('07 model)
1. Disconnect the MAF sensor 5P connector (A).
2. Remove the screws (B).
3. Remove the MAF sensor (C).
4. Install the parts in the reverse order of removal.
