CKP Pulse Plate Replacement

CKP Pulse Plate Replacement

'08 model J35A7 engine

1. Remove the crankshaft.

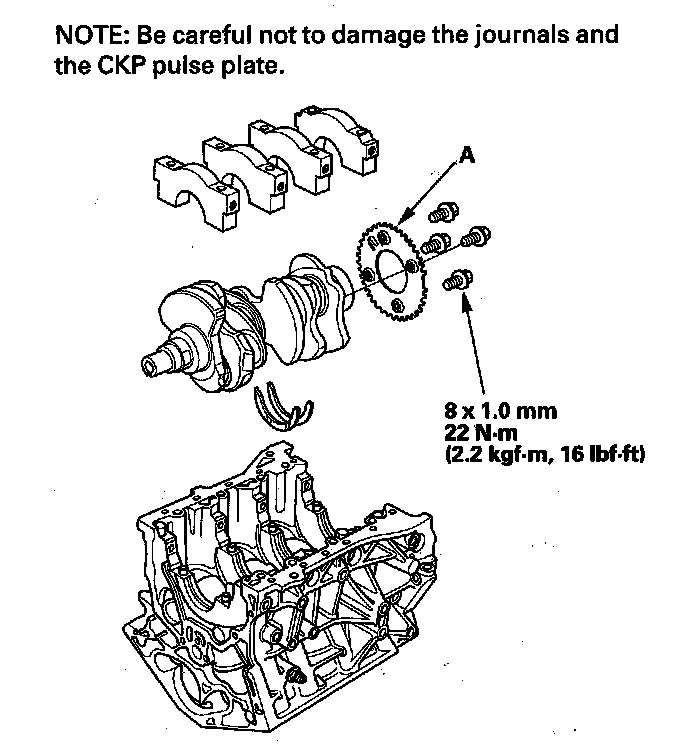

2. Remove the CKP pulse plate (A).





3. Install the CKP pulse plate in the reverse order of removal.
