Variable Cylinder Management (VCM) System

Rocker Arm Oil Pressure Sensor Removal/Installation

1. Remove the engine cover.

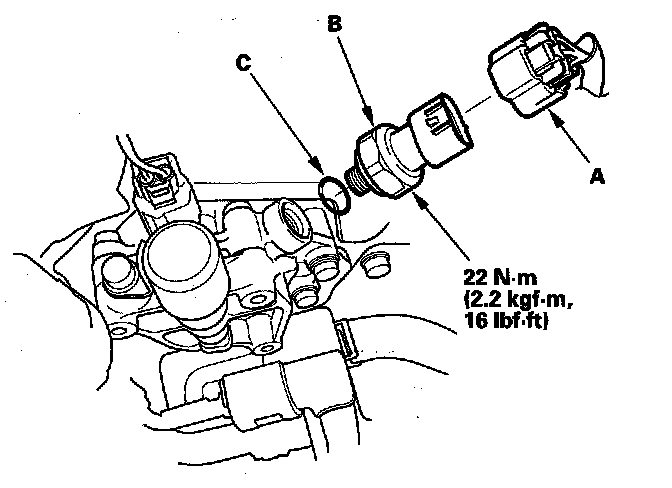

2. Disconnect the rocker arm oil pressure sensor 3P connector (A).






3. Remove the rocker arm oil pressure sensor (B).
4. Install the parts in the reverse order of removal with a new O-ring (C).
