Intake Manifold
Intake ManifoldUpper

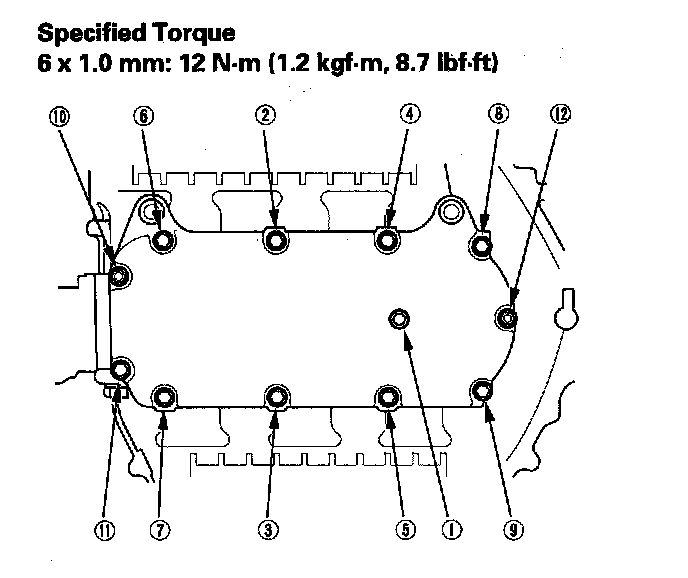

Tighten the bolts and nuts sequentially in three steps.
Lower
Tighten the bolts and nuts sequentially in three steps.
Throttle Body
Tighten the bolts and nuts to 22 N.m (16 lbf.ft)
Upper
Tighten the bolts and nuts sequentially in three steps.
Lower
Tighten the bolts and nuts sequentially in three steps.
Throttle Body
Tighten the bolts and nuts to 22 N.m (16 lbf.ft)
