System Specifications

Timing Belt Tensioner

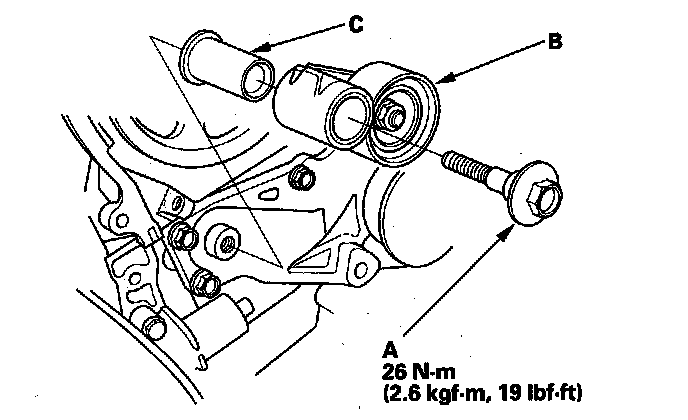

J35A6 Engine

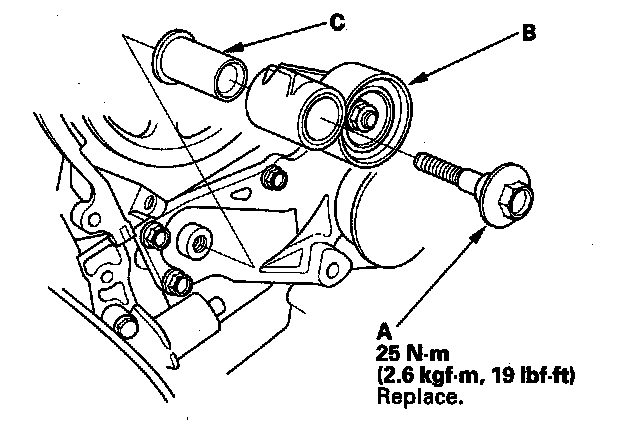

J35A7 Engine






Timing Cover

Lower cover

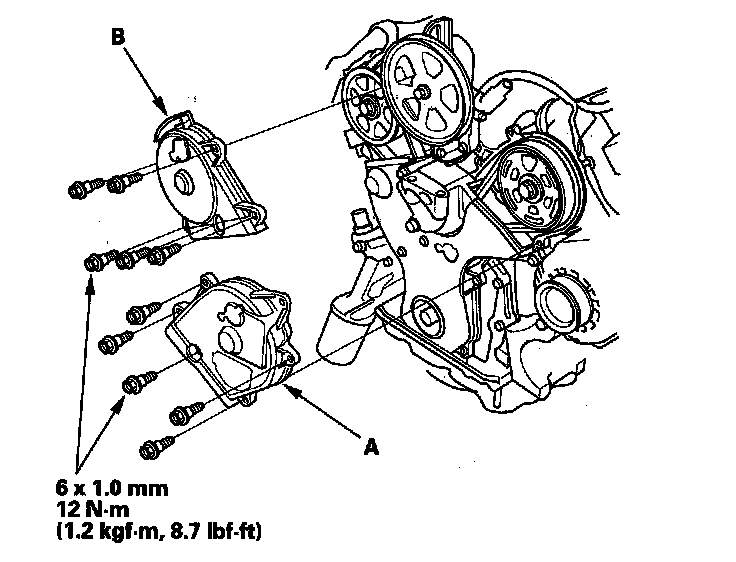

Front upper cover (A) and the rear upper cover (B)






Crankshaft Pulley

Torque 64 N-m (6.5 kgf-m, 47 lbf-ft)





Tighten the bolt an additional 60°
