Security Indicator Test/Replacement

Security Indicator Test/Replacement

Except LX and LX-VP models

1. Remove the driver's door panel.

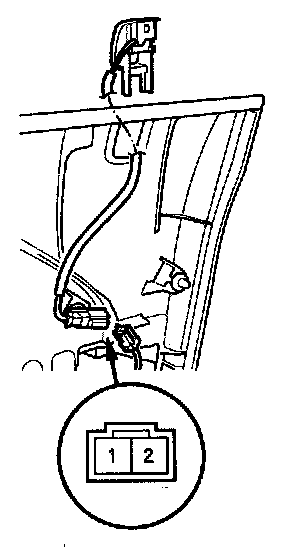

2. Disconnect the 2P connector from the security indicator.

3. Test the indicator by connecting battery power to the No.2 terminal and grounding the No.1 terminal. The LED should come on.
4. If the LED does not come on, replace the security indicator.
