Fuse Block

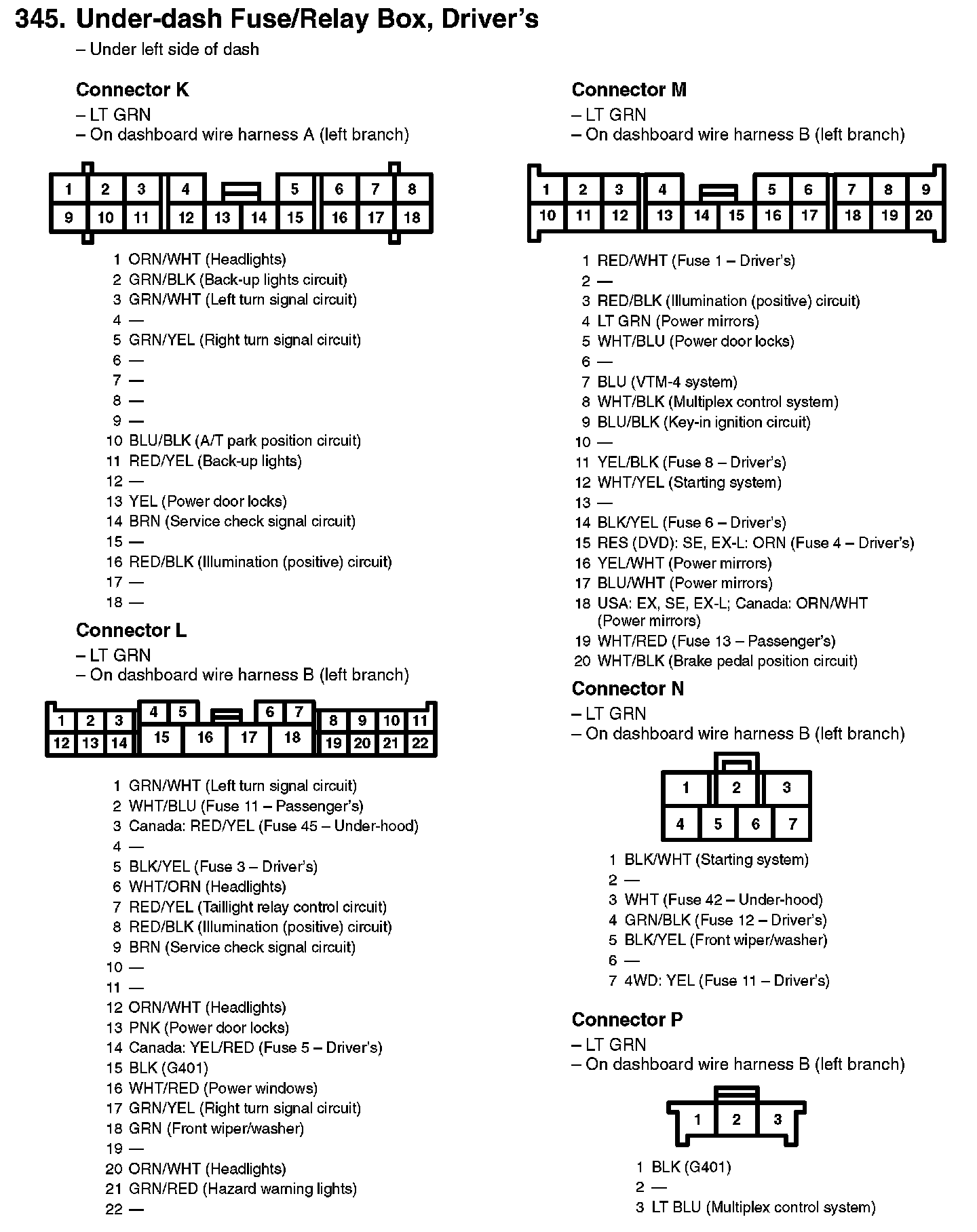

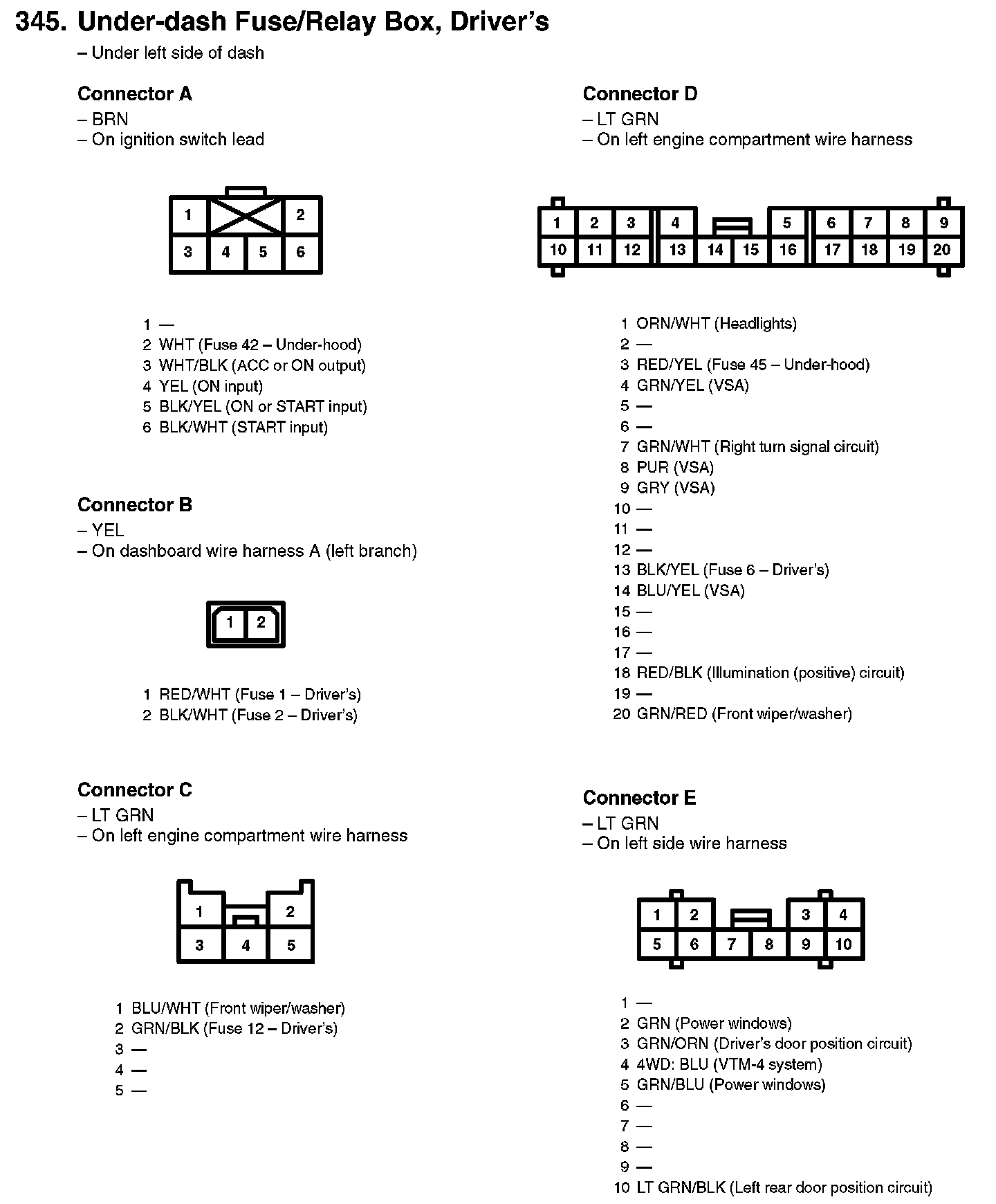

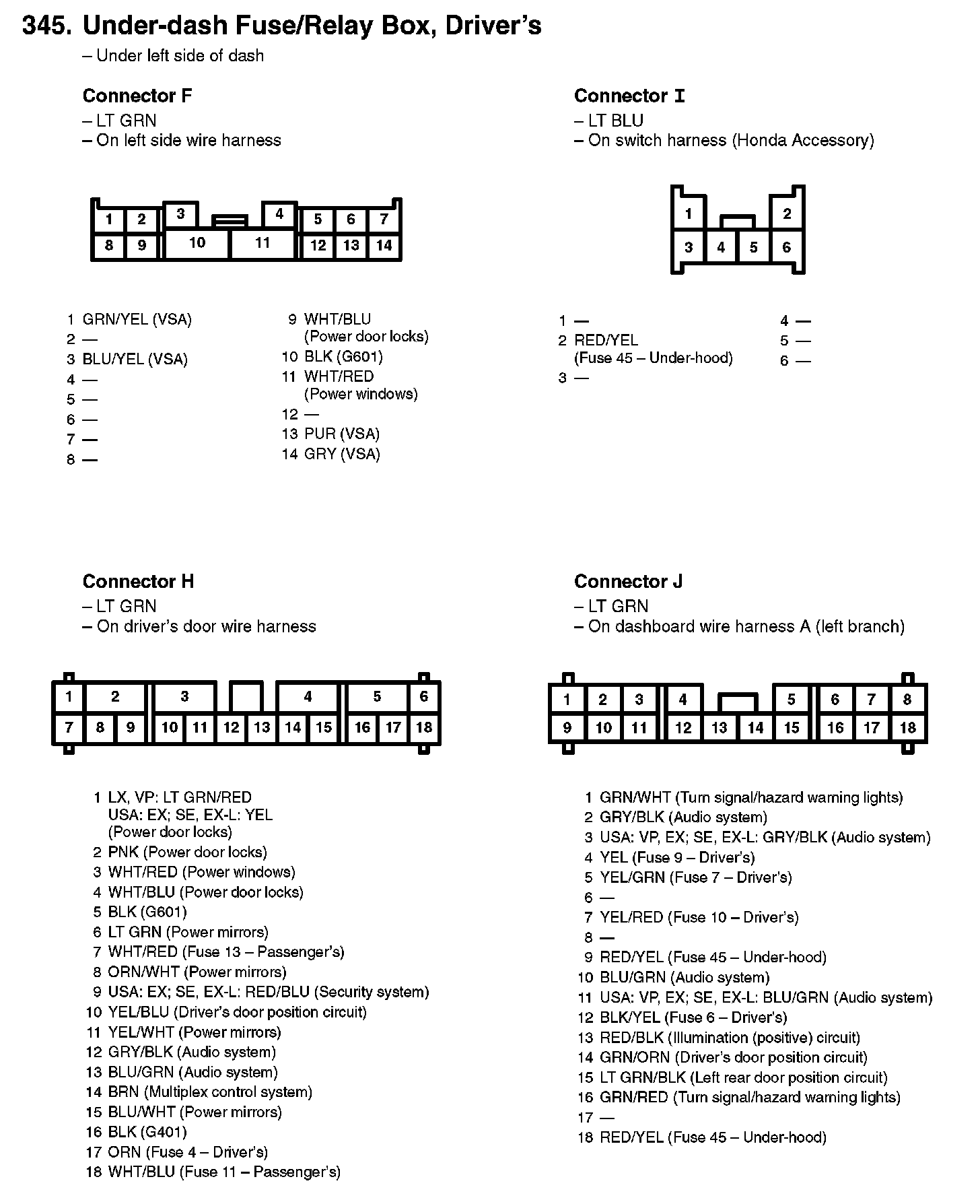

345. Under-dash Fuse/Relay Box, Driver's:



345. Under-dash Fuse/Relay Box, Driver's:



345. Under-dash Fuse/Relay Box, Driver's:

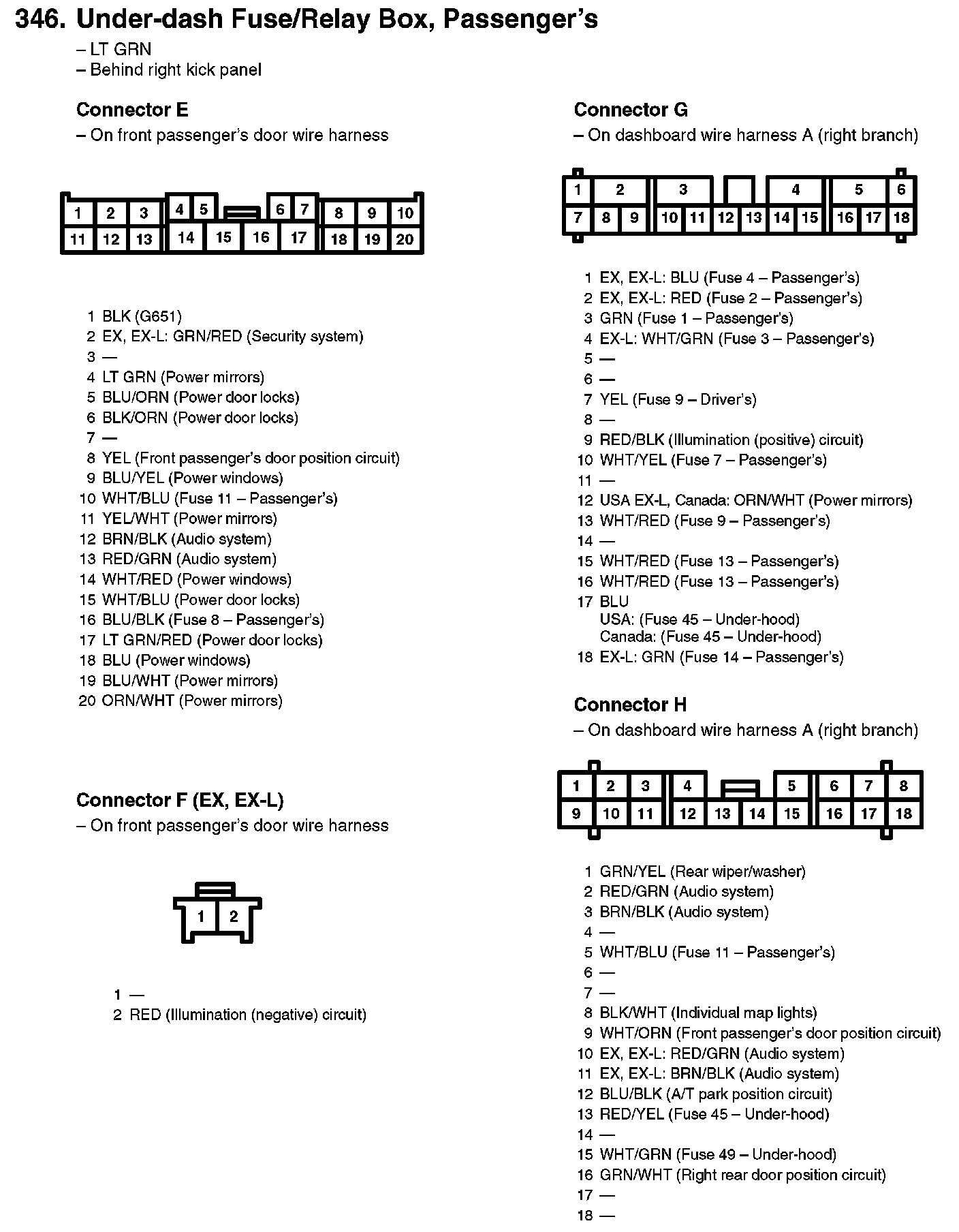

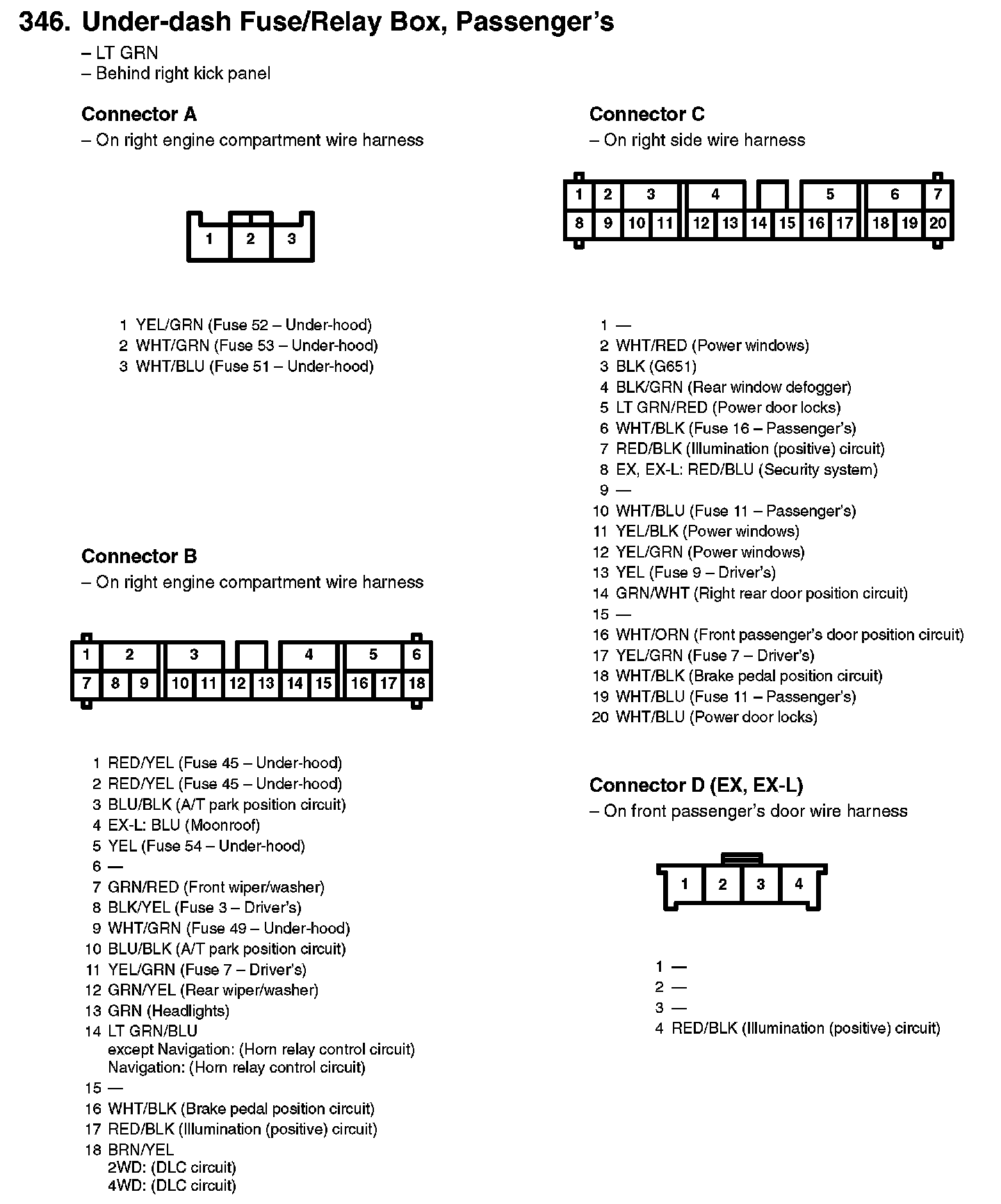

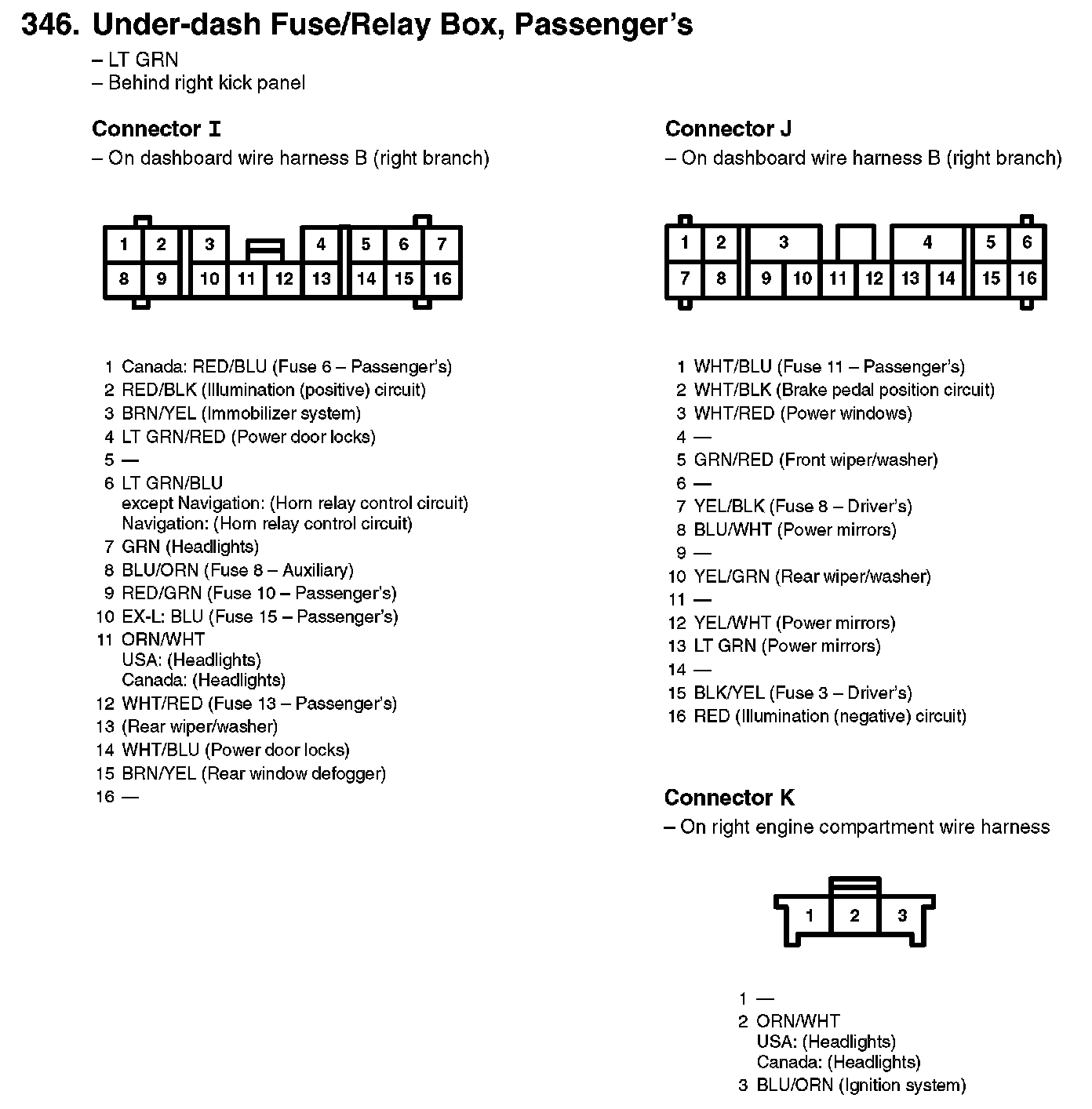

346. Under-dash Fuse/Relay Box, Passenger's:



346. Under-dash Fuse/Relay Box, Passenger's:



346. Under-Dash Fuse/Relay Box, Passenger's:

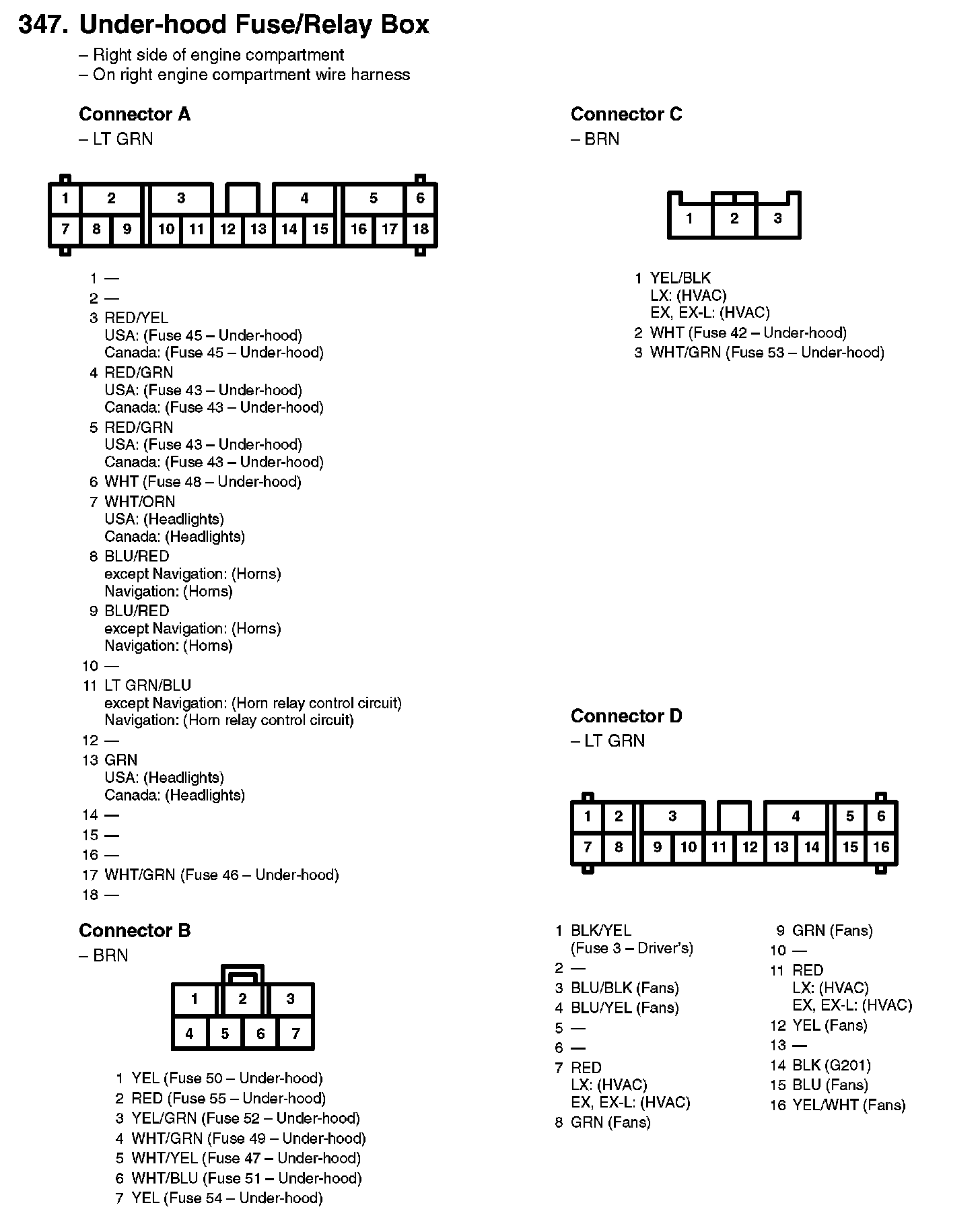

347. Under-hood Fuse/Relay Box:
