Power Window Switch

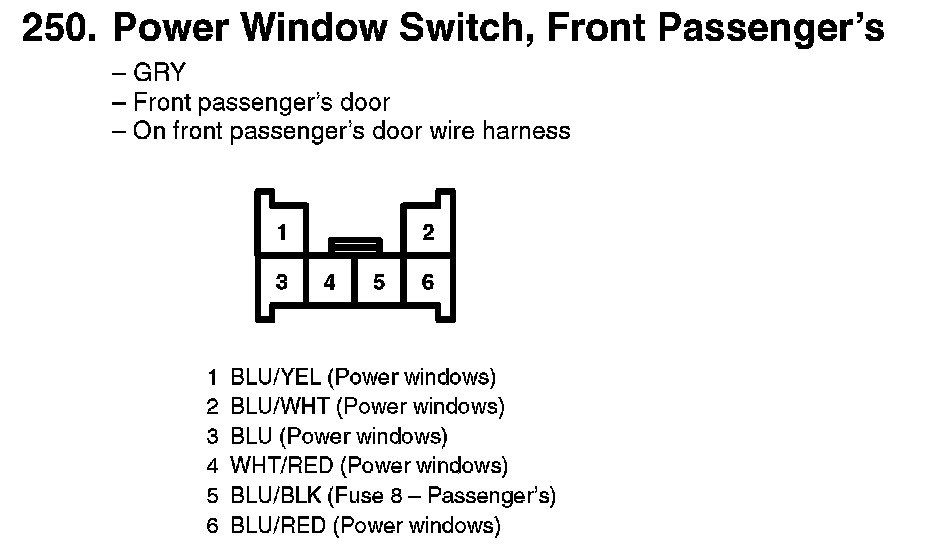

250. Power Window Switch, Front Passenger's:

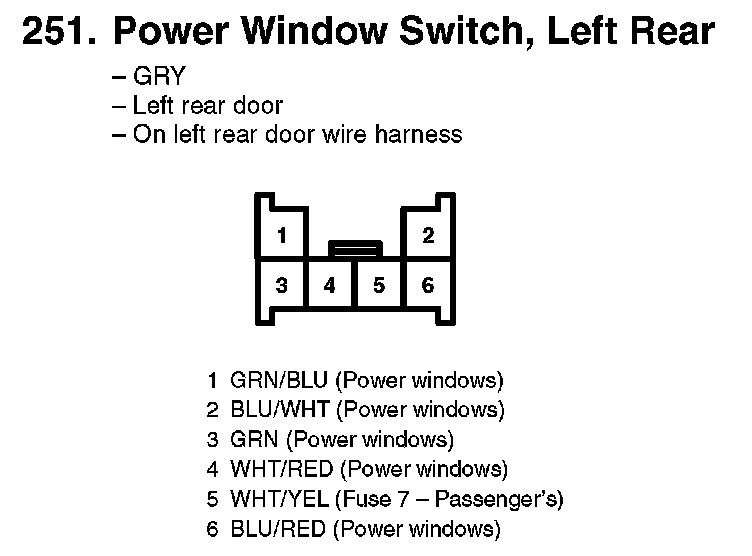

251. Power Window Switch, Left Rear:

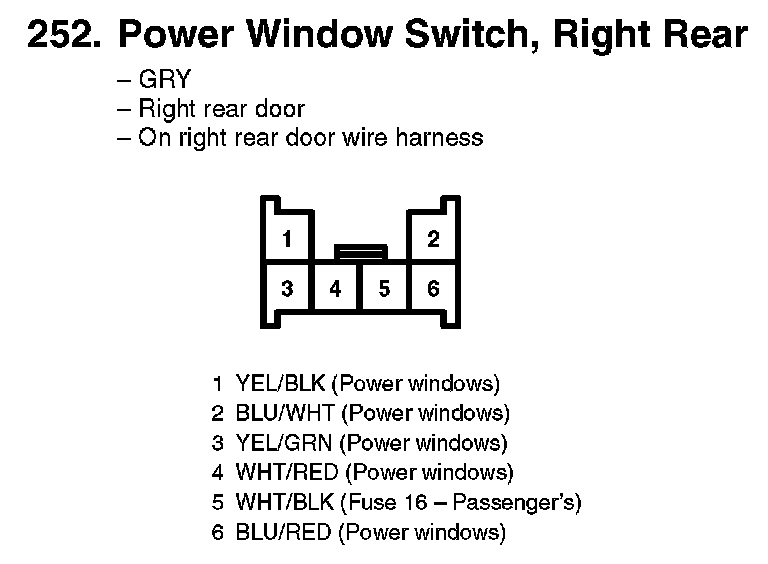

252. Power Window Switch, Right Rear:
