Relay Box

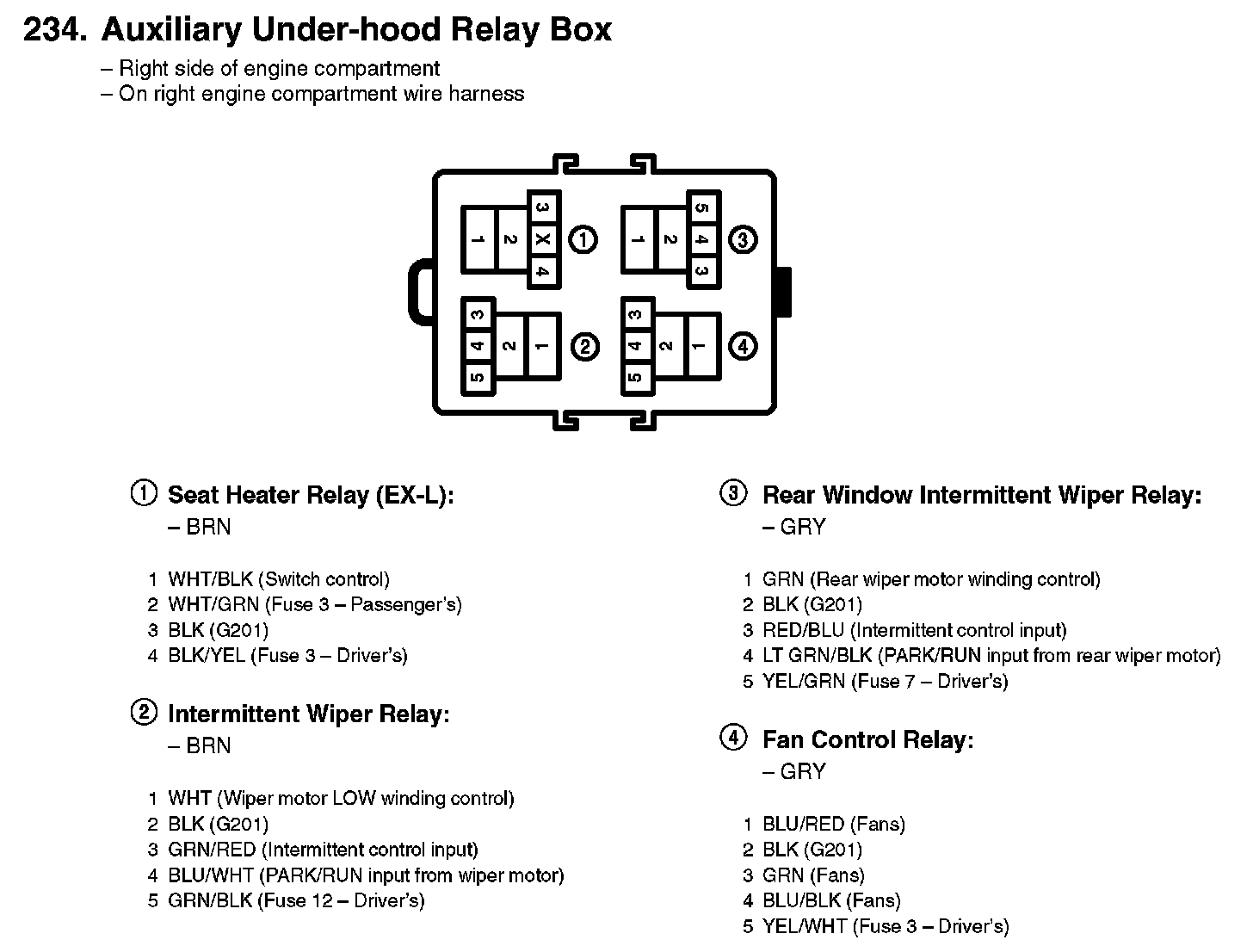

234. Auxiliary Under-hood Relay Box:



345. Under-dash Fuse/Relay Box, Driver's:



345. Under-dash Fuse/Relay Box, Driver's:



345. Under-dash Fuse/Relay Box, Driver's:



346. Under-dash Fuse/Relay Box, Passenger's:



346. Under-dash Fuse/Relay Box, Passenger's:



346. Under-Dash Fuse/Relay Box, Passenger's:



347. Under-hood Fuse/Relay Box:
