Accelerator Pedal Removal/Installation

Accelerator Pedal Removal/Installation

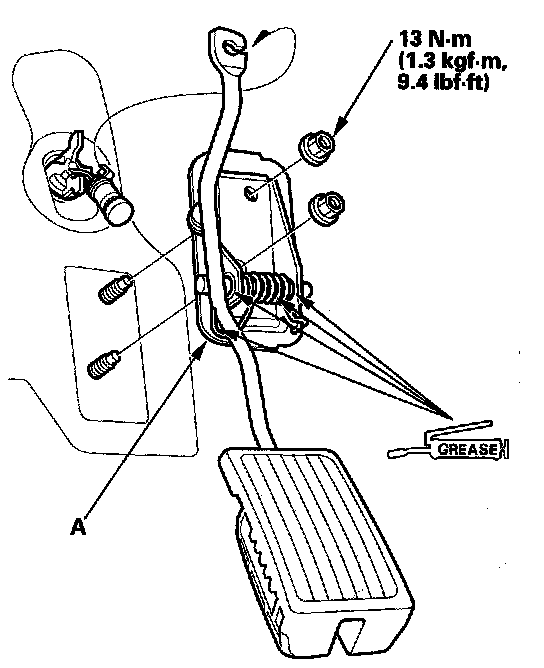

1. Remove the throttle cable from the accelerator pedal.
2. Remove the accelerator pedal bracket (A).

3. Install the parts in the reverse order of removal.
