Component Locations

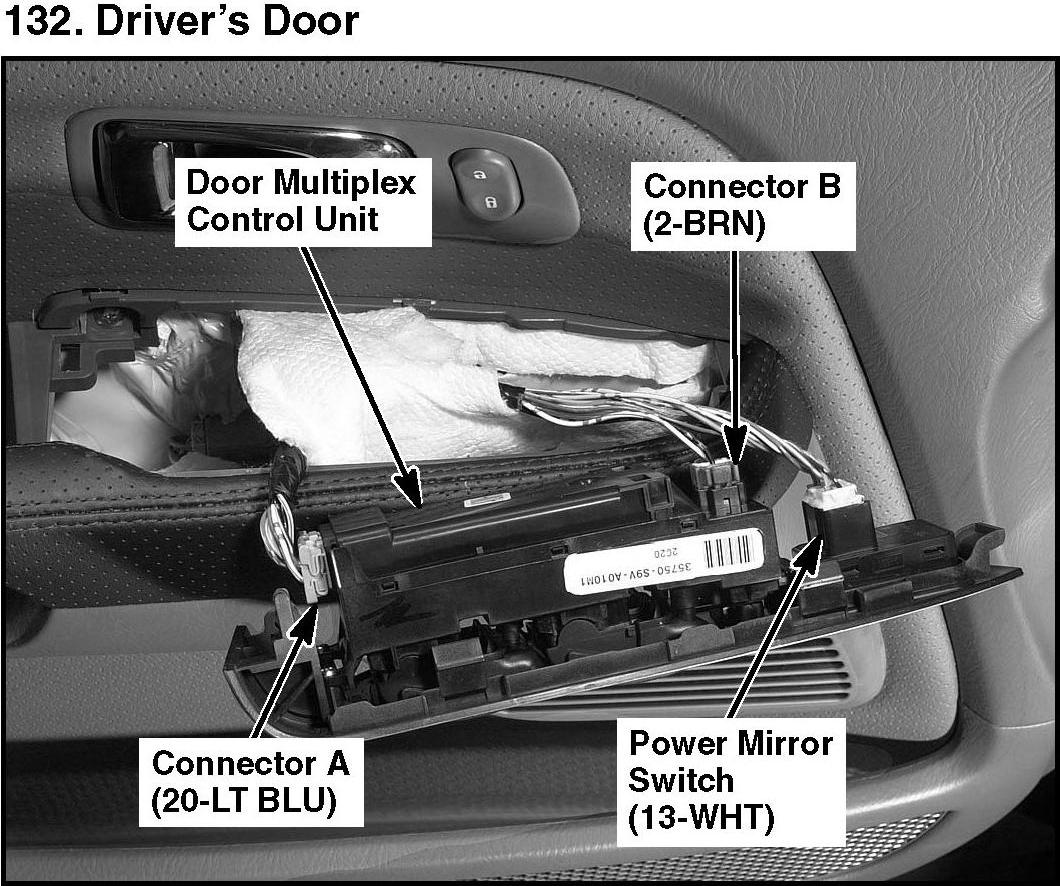

132. Driver's Door:

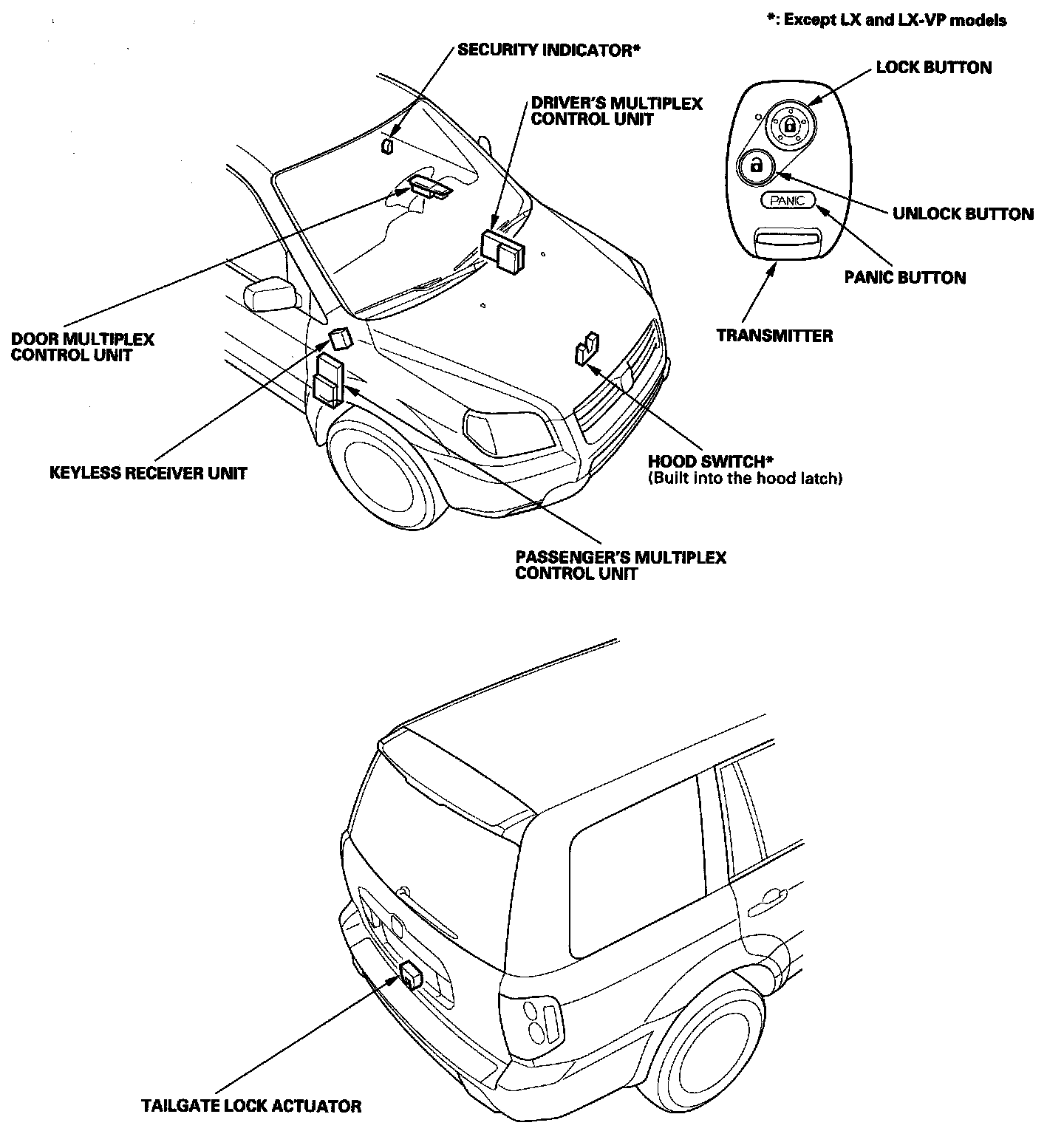

Keyless/Power Door Locks/Security System Component Location Index:



Relay And Control Unit Locations Dashboard:



Relay And Control Unit Locations Door And Seat:



Relay And Control Unit Locations Dashboard:

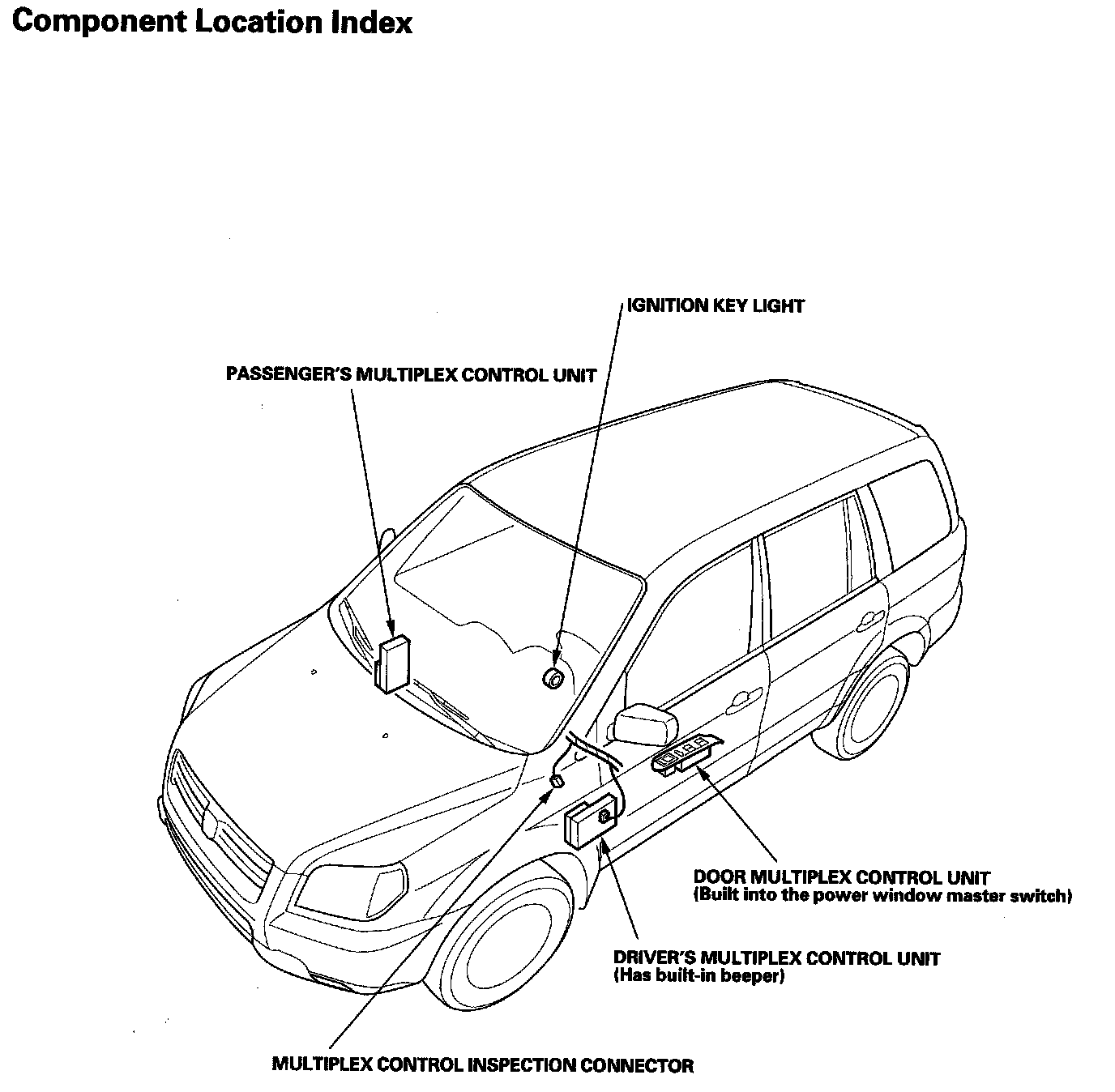

Multiplex Control System Component Location Index:
