Rocker Arm Oil Pressure Switch (VTEC Oil Pressure Switch) Replacement

Rocker Arm Oil Pressure Switch (VTEC Oil Pressure Switch) Replacement

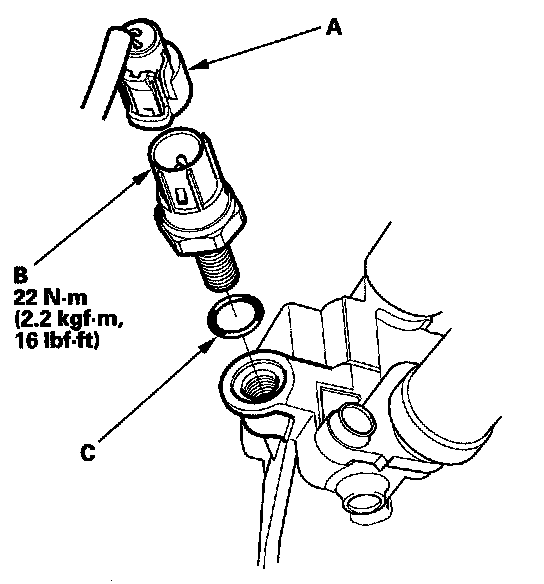

1. Disconnect the rocker arm oil pressure switch (VTEC oil pressure switch) connector (A), then remove the rocker arm oil pressure switch (VTEC oil pressure switch) (B).






2. Install the parts in the reverse order of removal with a new O-ring (C).
