Overhaul Specifications

Flex Plate

Install the drive plate and washer on the engine crankshaft, and tighten the eight bolts in a crisscross pattern in two or more steps.

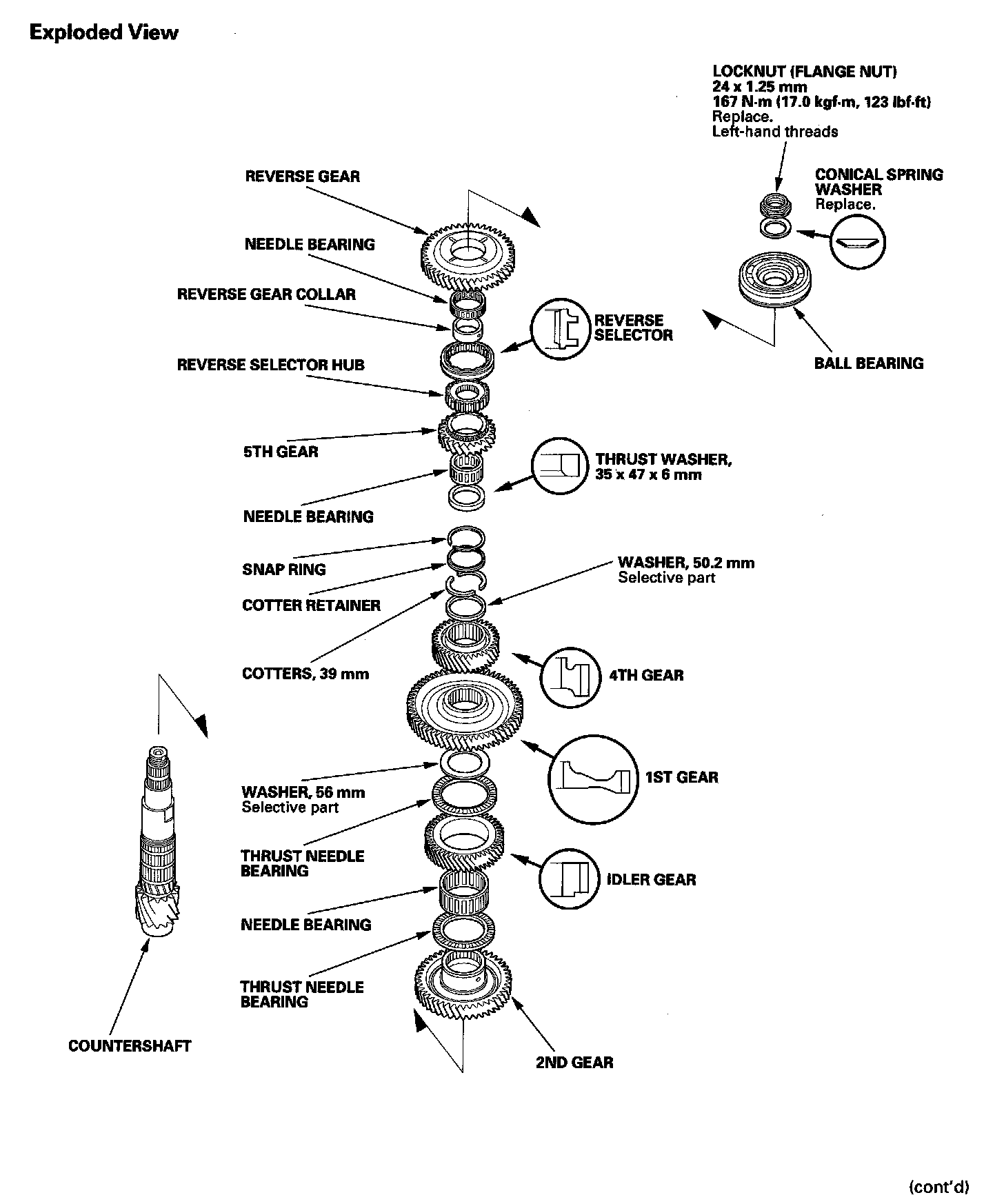

Countershaft:

Countershaft

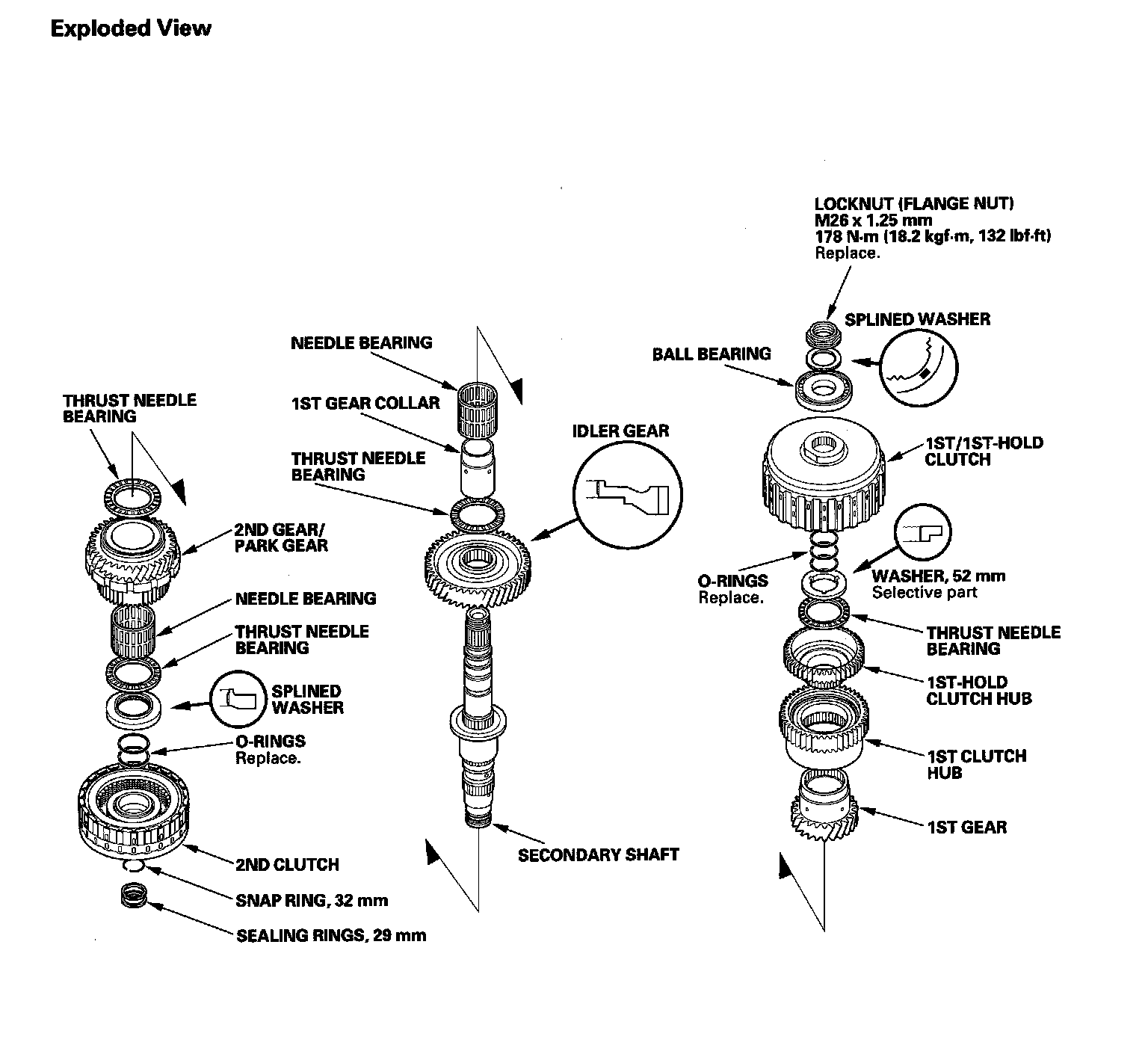

Secondary Shaft:

Secondary Shaft

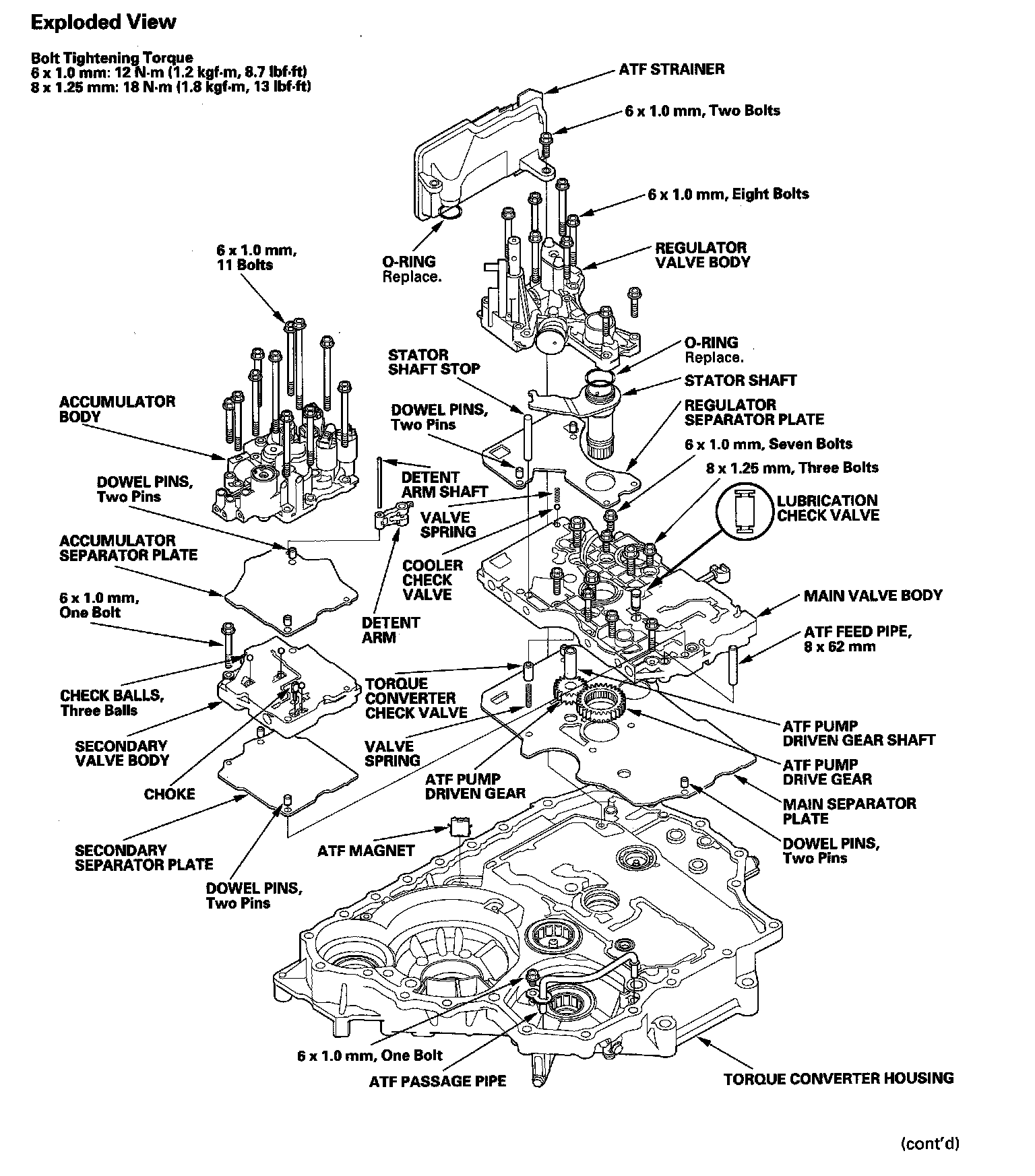

Transmission:

Automatic Transmission

For information regarding Transmission Overhaul Specifications, please refer to Service and Repair, Procedures. Service and Repair
