Intake Manifold

Intake Manifold

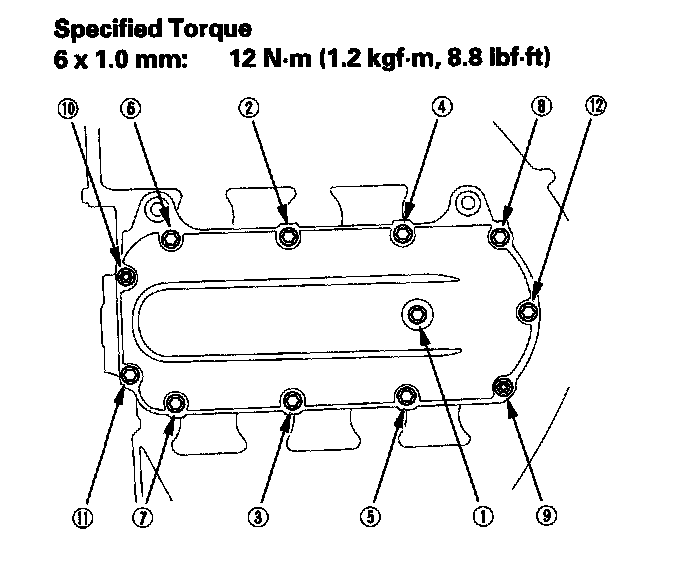

Upper

Torque the bolts and nuts sequentially in three steps.

Lower

Torque the bolts and nuts sequentially in three steps.

Throttle Body

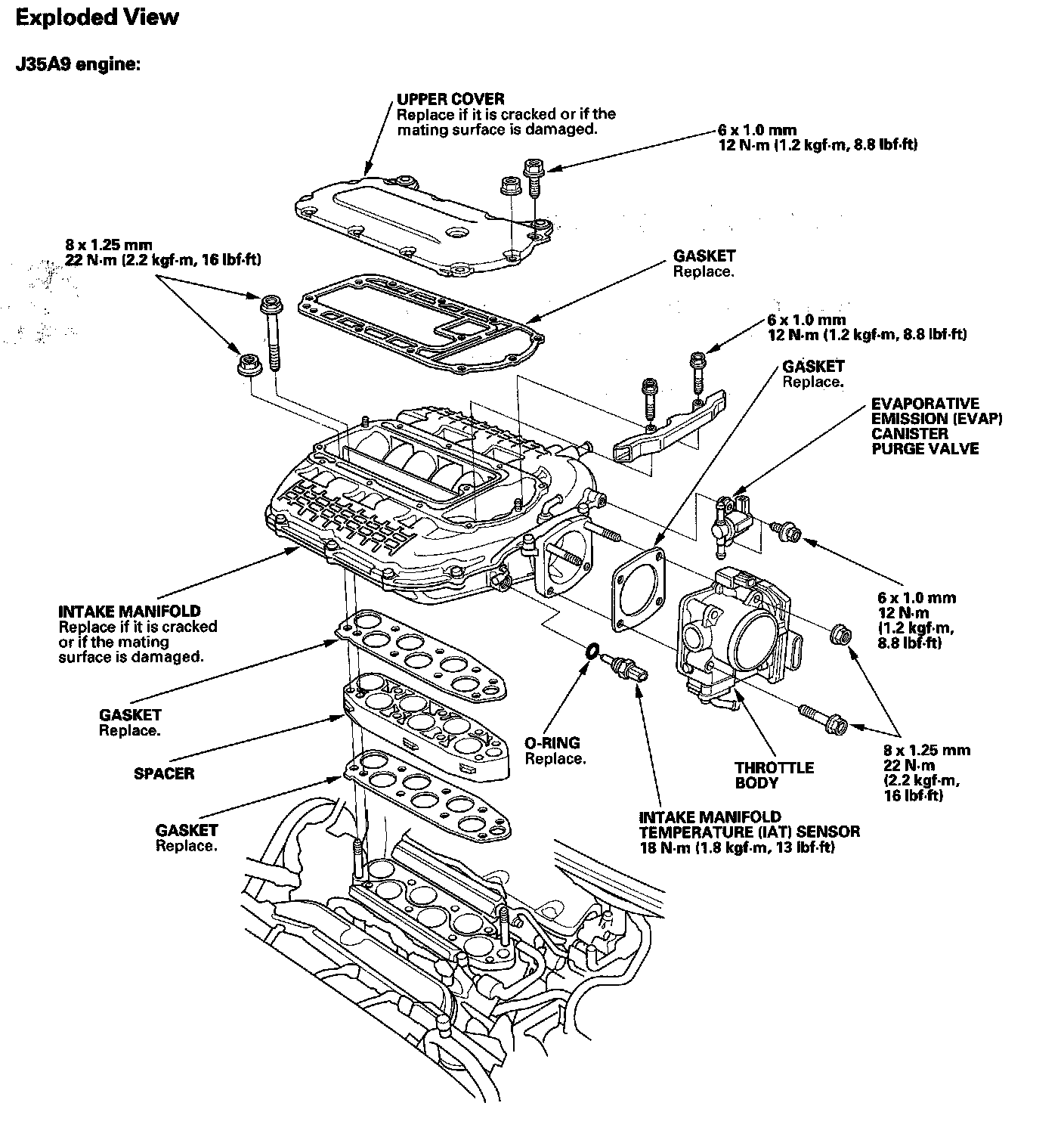

J35A9 Engine

Intake Manifold (Part 1):

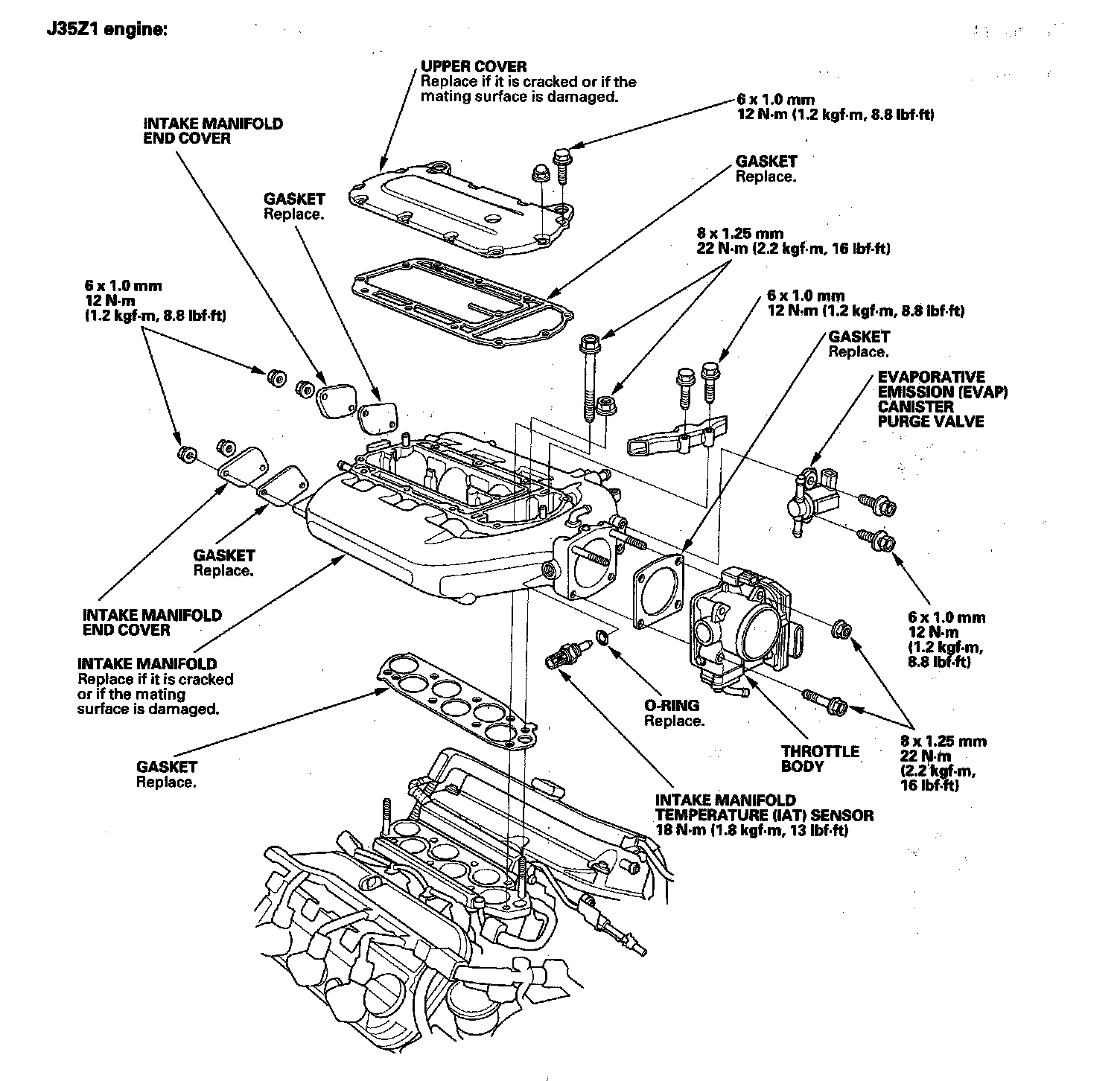

J35Z1 Engine

Intake Manifold

Intake Manifold (Part 1):

Intake Manifold (Part 2):
