Voice Control Switch Test/Replacement
Voice Control Switch Test/Replacement1. Remove the driver's airbag assembly.
2. Remove the two screws and cover (A) from the steering wheel.
3. Remove the two screws from the audio remote/voice control switch (B).
4. Disconnect the 4P connector from the audio remote/voice control switch.

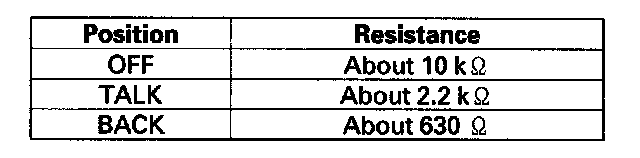

5. Measure the resistance between the No. 1 and No. 5 terminals in each switch position according to the table.
6. If the resistance is not as specified, replace the voice control switch.
