SRS Unit Replacement

SRS Unit Replacement

Removal

NOTE: If you are only disconnecting SRS unit connector A, skip step 2.

1. Disconnect the negative cable from the battery, and wait at least 3 minutes before beginning work.
2. Disconnect both seat belt tensioner connectors.
3. Remove the center console side trim.

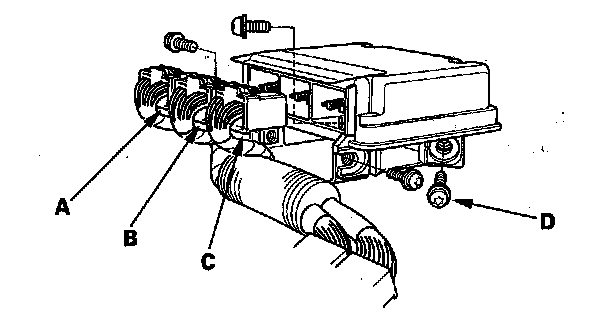

4. Pull down the console carpet on the driver's side and passenger's side, then disconnect SRS unit connector A (28P), SRS unit connector B (28P), and SRS unit connector C (28P). Remove the TORX bolts (D), then pull out the SRS unit.






Installation

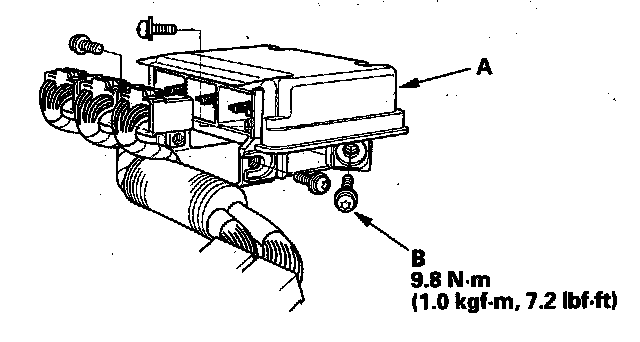

1. Install the new SRS unit (A) with TORX bolts (B), then connect the connectors to the SRS unit; push them into position until it clicks.

NOTE: Be sure the SRS unit is sitting squarely against its bracket before torquing the TORX bolts.






2. Reinstall the center console side trim.
3. Reconnect both seat belt tensioner connectors.
4. Reconnect the negative cable to the battery.
5. Calibrate the ODS unit.

NOTE: Initialization is only needed if you installed a new SRS unit.

6. Install all removed parts.
7. Do the ODS unit operation check.
8. After installing the SRS unit, confirm proper system operation: Turn the ignition switch ON (II); the SRS indicator should come on for about 6 seconds and then go off.
