Accelerator Pedal Replacement

Remove the throttle cable (A) from the accelerator pedal (B).

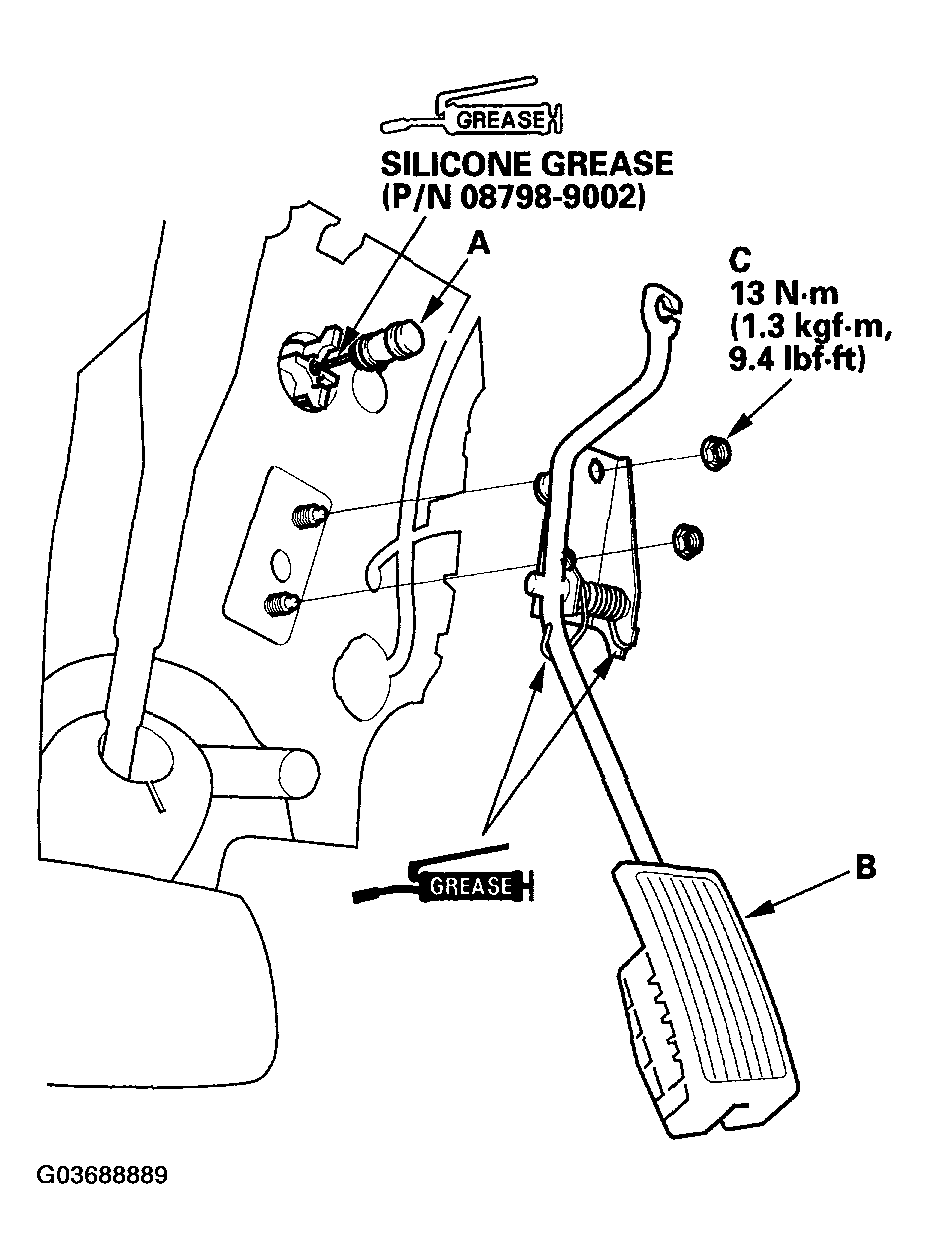

Fig 1: Removing Throttle Cable From Accelerator Pedal With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the nuts (C) and the accelerator pedal.
Install in the reverse order of removal.
